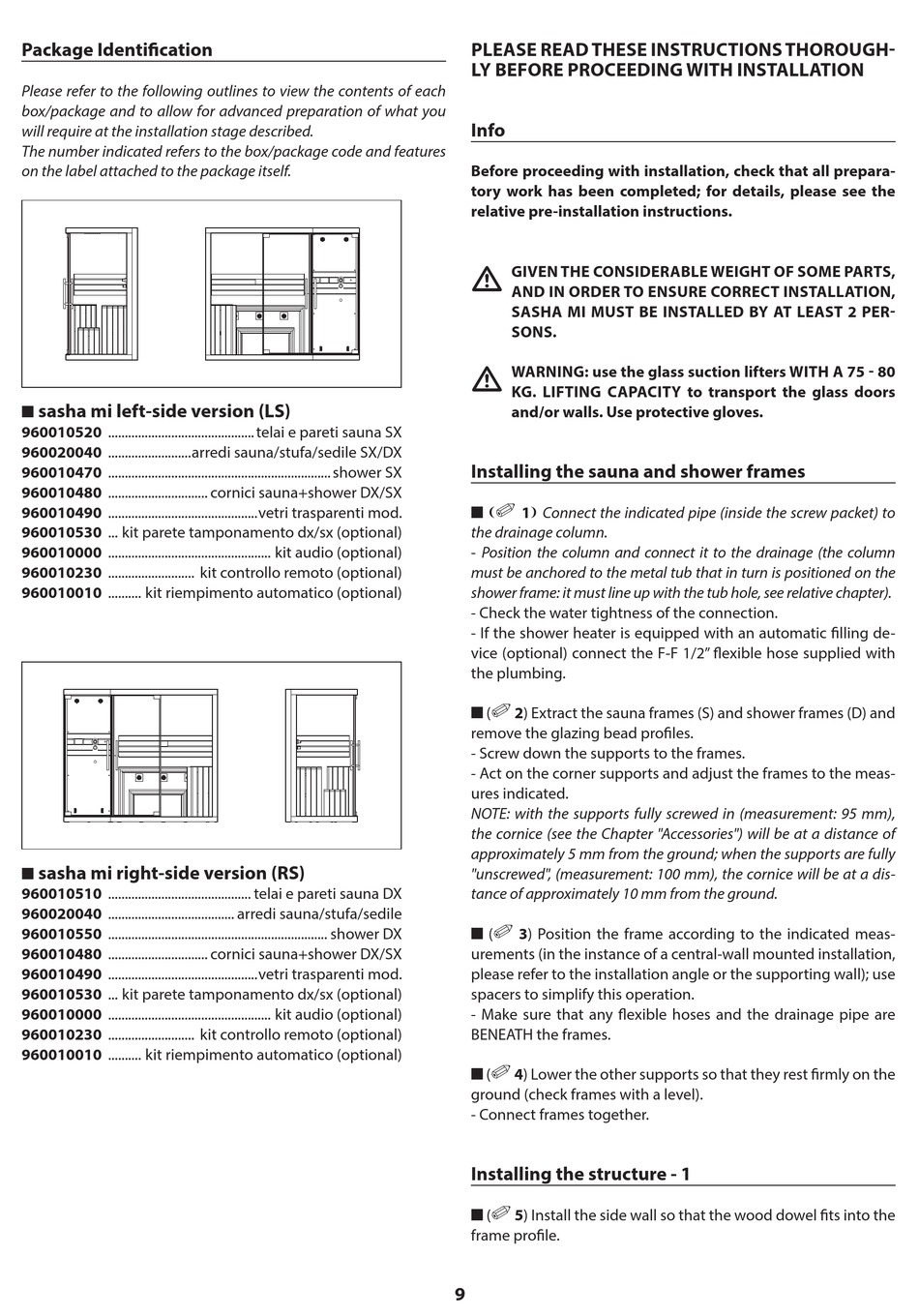

Package Identification
Please refer to the following outlines to view the contents of each
box/package and to allow for advanced preparation of what you
will require at the installation stage described.
The number indicated refers to the box/package code and features
on the label attached to the package itself.
sasha mi left-side version (LS)
■
960010520 ............................................ telai e pareti sauna SX
960020040 .........................arredi sauna/stufa/sedile SX/DX
960010470 ................................................................... shower SX
960010480 .............................. cornici sauna+shower DX/SX
960010490 .............................................vetri trasparenti mod.
960010530 ... kit parete tamponamento dx/sx (optional)
960010000 ................................................. kit audio (optional)
960010230 .......................... kit controllo remoto (optional)
960010010 .......... kit riempimento automatico (optional)
sasha mi right-side version (RS)
■
960010510 ........................................... telai e pareti sauna DX
960020040 ...................................... arredi sauna/stufa/sedile
960010550 .................................................................. shower DX
960010480 .............................. cornici sauna+shower DX/SX
960010490 .............................................vetri trasparenti mod.
960010530 ... kit parete tamponamento dx/sx (optional)
960010000 ................................................. kit audio (optional)
960010230 .......................... kit controllo remoto (optional)
960010010 .......... kit riempimento automatico (optional)
PLEASE READ THESE INSTRUCTIONS THOROUGH-
LY BEFORE PROCEEDING WITH INSTALLATION
Info
Before proceeding with installation, check that all prepara-
tory work has been completed; for details, please see the
relative pre-installation instructions.
m
GIVEN THE CONSIDERABLE WEIGHT OF SOME PARTS,
AND IN ORDER TO ENSURE CORRECT INSTALLATION,
SASHA MI MUST BE INSTALLED BY AT LEAST 2 PER-
SONS.
m
WARNING: use the glass suction lifters WITH A 75 - 80
KG. LIFTING CAPACITY to transport the glass doors
and/or walls. Use protective gloves.
Installing the sauna and shower frames
✐
1) Connect the indicated pipe (inside the screw packet) to
■ (
the drainage column.
- Position the column and connect it to the drainage (the column
must be anchored to the metal tub that in turn is positioned on the
shower frame: it must line up with the tub hole, see relative chapter).
- Check the water tightness of the connection.
- If the shower heater is equipped with an automatic filling de-
vice (optional) connect the F-F 1/2" flexible hose supplied with
the plumbing.
✐
2) Extract the sauna frames (S) and shower frames (D) and
■ (
remove the glazing bead profiles.
- Screw down the supports to the frames.
- Act on the corner supports and adjust the frames to the meas-
ures indicated.
NOTE: with the supports fully screwed in (measurement: 95 mm),
the cornice (see the Chapter "Accessories") will be at a distance of
approximately 5 mm from the ground; when the supports are fully
"unscrewed", (measurement: 100 mm), the cornice will be at a dis-
tance of approximately 10 mm from the ground.
✐
■ ( 3) Position the frame according to the indicated meas-
urements (in the instance of a central-wall mounted installation,
please refer to the installation angle or the supporting wall); use
spacers to simplify this operation.
- Make sure that any flexible hoses and the drainage pipe are
BENEATH the frames.
✐
4) Lower the other supports so that they rest firmly on the
■ (
ground (check frames with a level).
- Connect frames together.
Installing the structure - 1
✐
■ ( 5) Install the side wall so that the wood dowel fits into the
frame profile.
