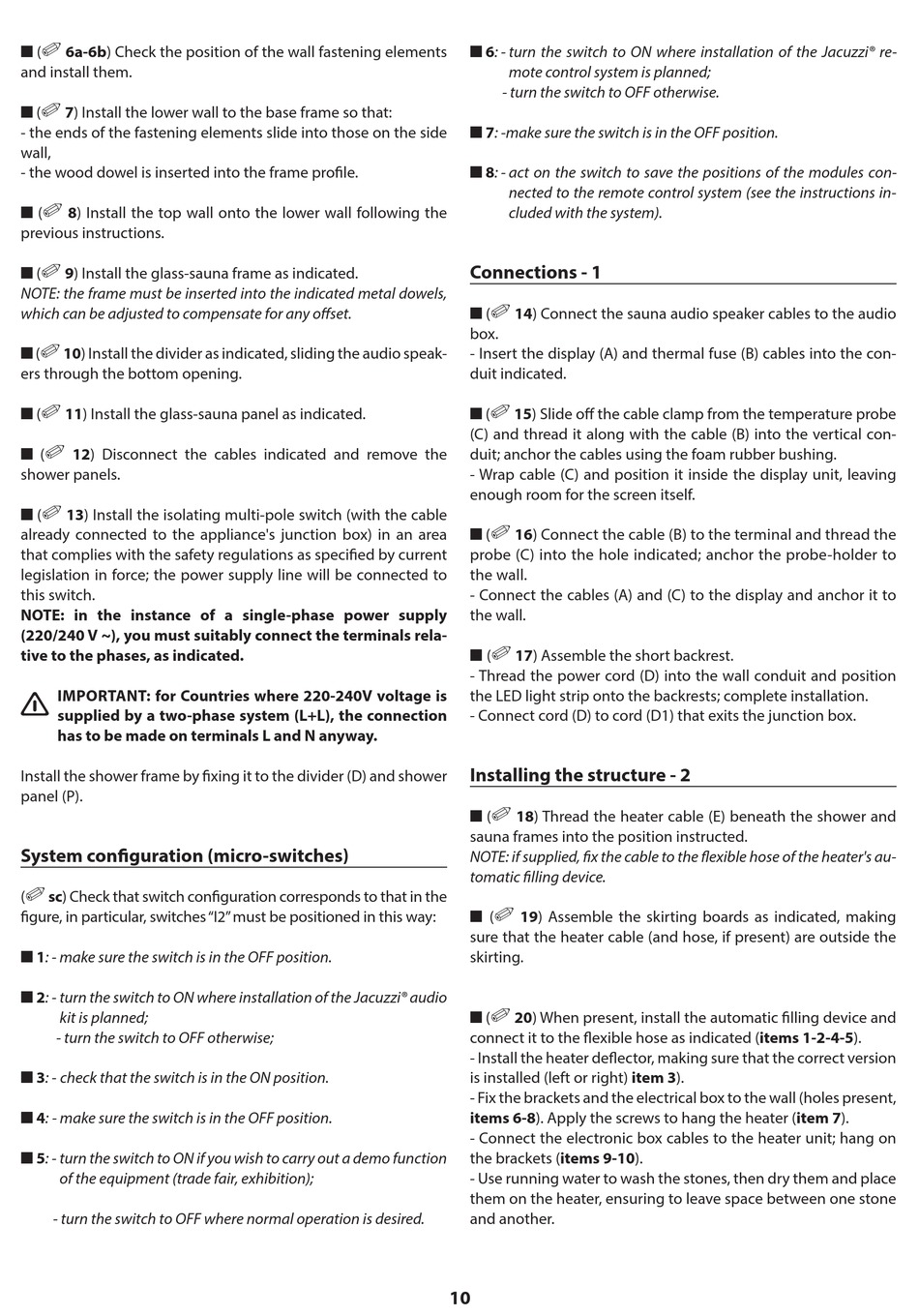

6a-6b) Check the position of the wall fastening elements
■ (
and install them.
✐
■ ( 7) Install the lower wall to the base frame so that:
- the ends of the fastening elements slide into those on the side
wall,
- the wood dowel is inserted into the frame profile.
✐
■ ( 8) Install the top wall onto the lower wall following the
previous instructions.
✐
9) Install the glass-sauna frame as indicated.
■ (
NOTE: the frame must be inserted into the indicated metal dowels,
which can be adjusted to compensate for any offset.
✐
10) Install the divider as indicated, sliding the audio speak-
■ (
ers through the bottom opening.
✐
11) Install the glass-sauna panel as indicated.
■ (
✐
12) Disconnect the cables indicated and remove the
■ (
shower panels.
✐
13) Install the isolating multi-pole switch (with the cable
■ (
already connected to the appliance's junction box) in an area
that complies with the safety regulations as specified by current
legislation in force; the power supply line will be connected to
this switch.
NOTE: in the instance of a single-phase power supply
(220/240 V ~), you must suitably connect the terminals rela-
tive to the phases, as indicated.
n IMPORTANT: for Countries where 220-240V voltage is
supplied by a two-phase system (L+L), the connection
has to be made on terminals L and N anyway.
Install the shower frame by fixing it to the divider (D) and shower
panel (P).
System configuration (micro-switches)
✐
sc) Check that switch configuration corresponds to that in the
(
figure, in particular, switches "I2" must be positioned in this way:
■ 1: - make sure the switch is in the OFF position.
■ 2: - turn the switch to ON where installation of the Jacuzzi® audio
kit is planned;
- turn the switch to OFF otherwise;
■ 3: - check that the switch is in the ON position.
■ 4: - make sure the switch is in the OFF position.
■ 5: - turn the switch to ON if you wish to carry out a demo function
of the equipment (trade fair, exhibition);
- turn the switch to OFF where normal operation is desired.
■ 6: - turn the switch to ON where installation of the Jacuzzi® re-
mote control system is planned;
- turn the switch to OFF otherwise.
■ 7: - make sure the switch is in the OFF position.
■ 8: - act on the switch to save the positions of the modules con-
nected to the remote control system (see the instructions in-
cluded with the system).
Connections - 1
✐
■ ( 14) Connect the sauna audio speaker cables to the audio
box.
- Insert the display (A) and thermal fuse (B) cables into the con-
duit indicated.
✐
15) Slide off the cable clamp from the temperature probe
■ (
(C) and thread it along with the cable (B) into the vertical con-
duit; anchor the cables using the foam rubber bushing.
- Wrap cable (C) and position it inside the display unit, leaving
enough room for the screen itself.
✐
16) Connect the cable (B) to the terminal and thread the
■ (
probe (C) into the hole indicated; anchor the probe-holder to
the wall.
- Connect the cables (A) and (C) to the display and anchor it to
the wall.
✐
■ ( 17) Assemble the short backrest.
- Thread the power cord (D) into the wall conduit and position
the LED light strip onto the backrests; complete installation.
- Connect cord (D) to cord (D1) that exits the junction box.
Installing the structure - 2
✐
18) Thread the heater cable (E) beneath the shower and
■ (
sauna frames into the position instructed.
NOTE: if supplied, fix the cable to the flexible hose of the heater's au-
tomatic filling device.
✐
19) Assemble the skirting boards as indicated, making
■ (
sure that the heater cable (and hose, if present) are outside the
skirting.
✐
■ ( 20) When present, install the automatic filling device and
connect it to the flexible hose as indicated (items 1-2-4-5).
- Install the heater deflector, making sure that the correct version
is installed (left or right) item 3).
- Fix the brackets and the electrical box to the wall (holes present,
items 6-8). Apply the screws to hang the heater (item 7).
- Connect the electronic box cables to the heater unit; hang on
the brackets (items 9-10).
- Use running water to wash the stones, then dry them and place
them on the heater, ensuring to leave space between one stone
and another.
