Lenz Digital plus LH101 Ergänzung Zur Bedienungsanleitung Seite 18

18
If the CV cannot be read out via Railcom, you can enter the desired
value directly.
4 Read / write service variables (SV)
Service variables are settings that can be made in the LZV200. For
example, the baud rate of the interface integrated in the LZV200 can
be set.
Which service variables are available and what they are used for is
described in the operating manual of the LZV200.

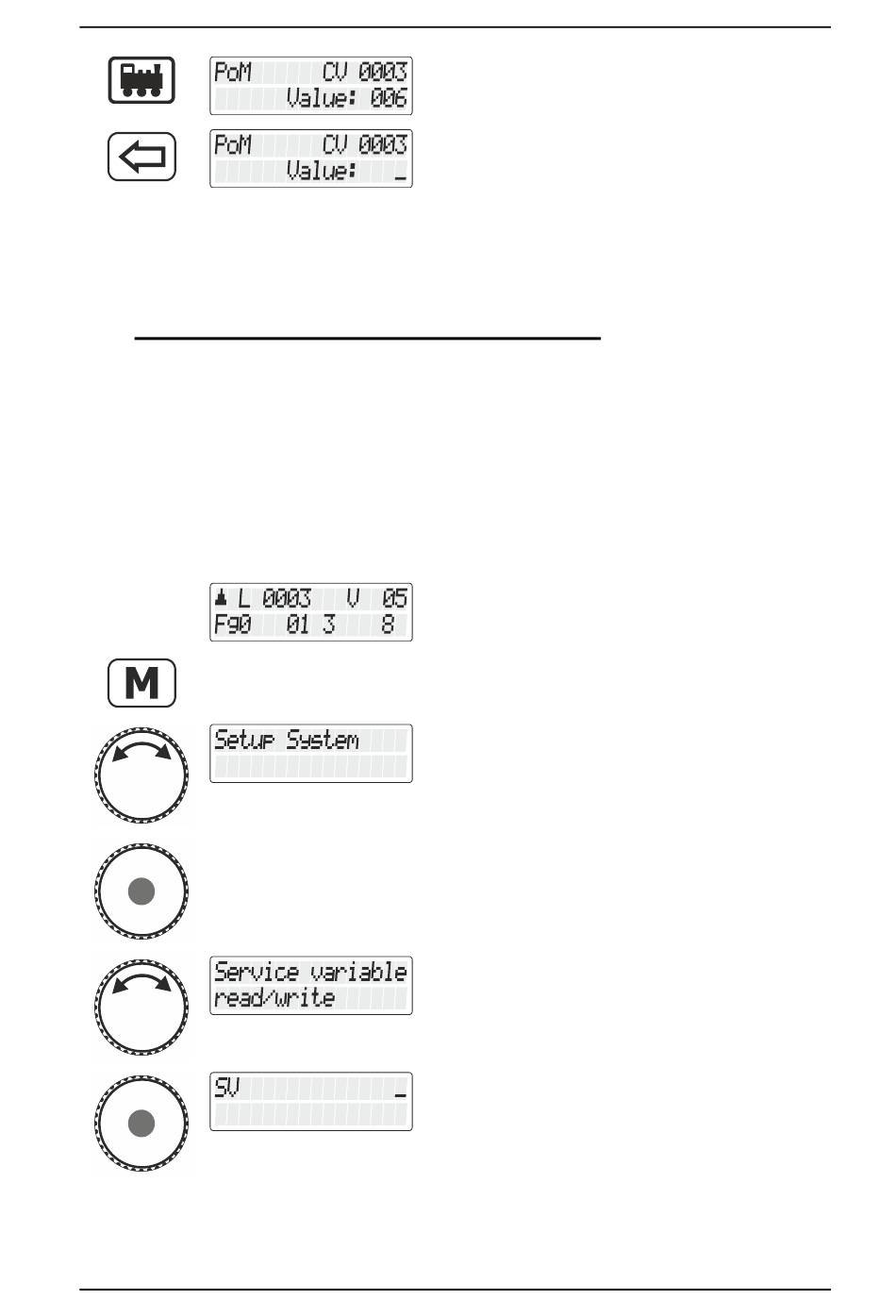

Action
In this example, the value "006" was read
from CV 3.
Delete the displayed value to enter a new
value or turn the knob to change the value.
Display
Proceed from "Controlling a locomotive"...
... press the 'M' button.
Turn the knob until the "Setup System" option
is displayed.
Pressing the rotary knob selects this option.
Turn the knob until the "Service variable
read/write" option is displayed and confirm
your selection by pressing the knob.
You are prompted to enter the number of the
SV you want to read or change (write).
Explanation
