OTOr AND rACK fITTING
N.B.: To use metal rack only code ACs9050.

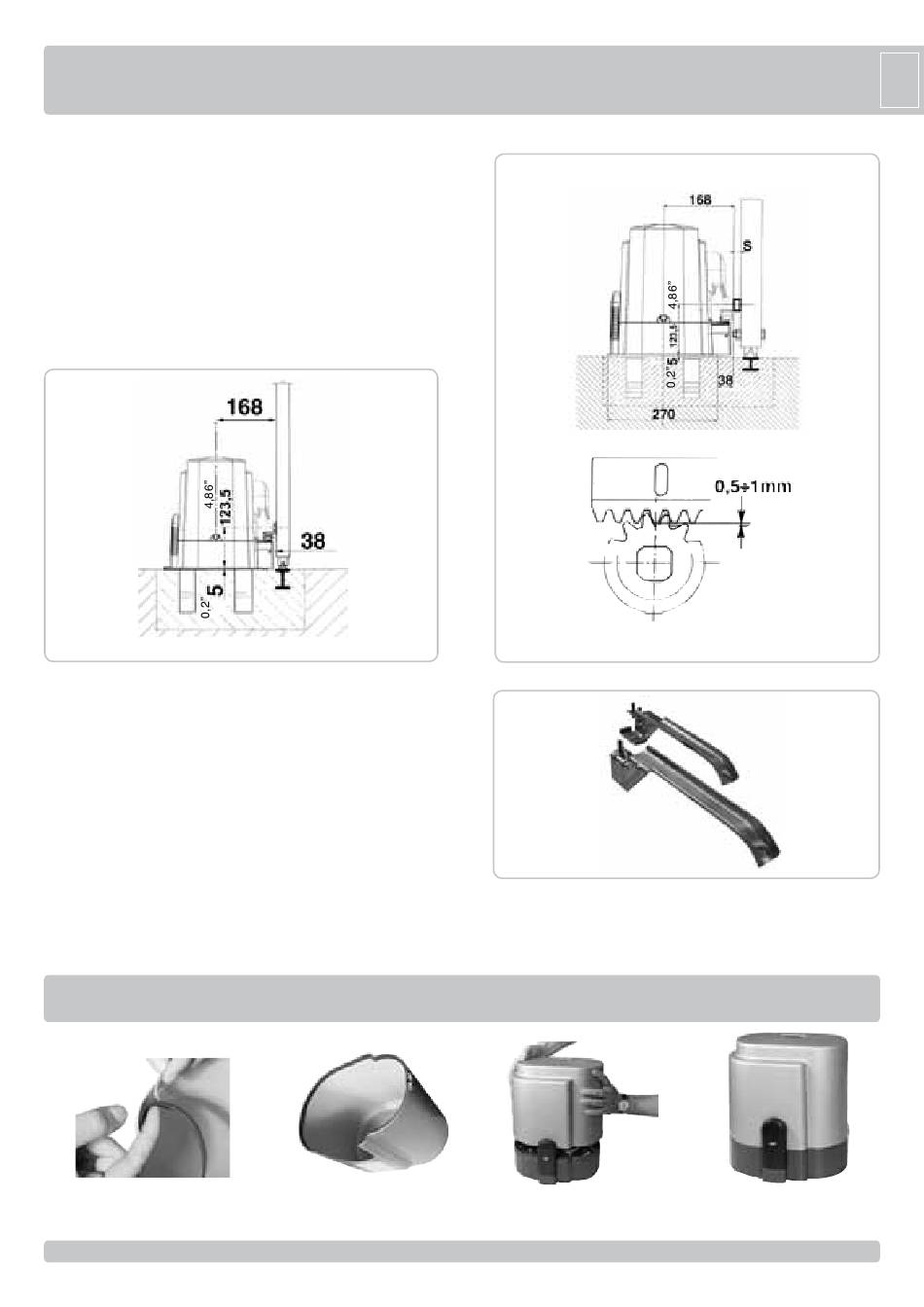

The rack shall be fitted over the motor support, at a certain distance
from it.
Its height can be adjusted thanks to the holes In the rack.
The height is adjusted to prevent the gate from resting on the driving
gear of the K as it moves (Fig. 5,6).
To fix the rack on the gate, drill some Ø 5 mm holes and thread them
using an M6 screw tap.
The driving gear needs some 1 mm clearance from the rack.
Measurements in mm/inch
L
IMIT sWITCH fITTING
In order to determine the travel of the moving part, place two cams
at the ends of the rack (Fig. 7).
Move the cams on the rack teeth to adjust their opening and closing
travel.
To fix the cams to the rack, tighten the screws issued.
N.B: In addition to the electric stop cams mentioned above, you must
also install strong mechanical stops preventing the gate from
sliding out of the top guides.
M
AINTENANCE
To be carried out exclusively by skilled persons after the power
supply to the motor has been interrupted.
Periodically, when the gate is standstill, clean and keep the guide free
from stones and dirt.
fINAL OPErATION -
Fit the gasket
6,6"
1,5"
5
The gasket shall be fitted only at the end of the installation, before you mount the
case.
The gasket is fitted
Measurements in mm/inch
Close the case
27
27
6,6"
1,5"
10,6"
0,04"
Motor ready
