Remote Volume Control
ControlCenter Analog Zone Controllers
Remotely control the volume of PowerSpace P4300+ and P4150+ with Bose ControlCenter analog zone controllers (CC-1, CC-2, and CC-3).
Use CC-1 for volume control and use CC-2 and CC-3 for volume and source control. Connect your zone controller(s) to your amplifier via
the ControlCenter port.
CC-1 and CC-2 controllers can be combined through either daisy-chaining or through a Bose CV41 4-to-1 converter. Only one CC-3 can be
connected at a time and cannot be used with the CV41 and cannot be daisy-chained with any other controller. See the table below for CC-1
and CC-2 combinations.
Number of each type of remote
CC-1
Note: An "X" indicates that the combination is possible. An "O" indicates that the combination is not possible.

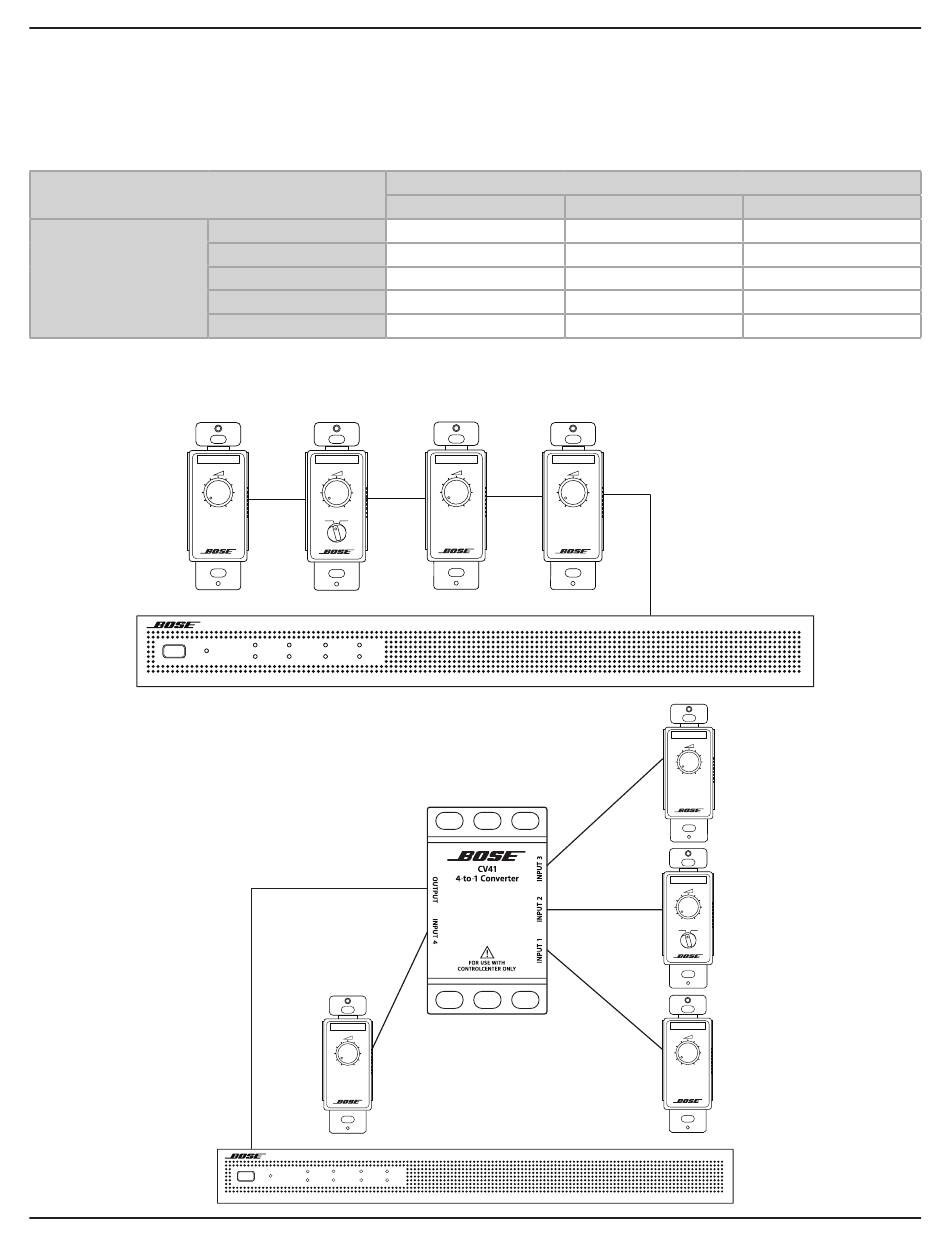

See the below examples of connecting four CC-1s via daisy-chaining or via CV41 connection.
POWER
PowerSpace
Versatile Power Amplifier
6 • English
0
1
2
3
4
A B
SIGNAL
1 2 3 4
LIMIT
Cat 5 cable
7.6 m (25 ft)
max total length
SIGNAL
POWER
1 2 3 4
LIMIT
PowerSpace
Versatile Power Amplifier
0
No remote
X
X
X
X
Cat 5 cable (shielded)
152 m (500 ft)
max total length
Cat 5 cable (unshielded)
30 m (100 ft)
max total length
PowerSpace P4300+/P4150+ • Installation Guide
PRO.BOSE.COM
CC-2
1
X
X
X
X
O
Cat 5 cable (shielded)
152 m (500 ft)
max total length
Cat 5 cable (unshielded)
30 m (100 ft)
max total length
P4300+
A B
P4300+
2
X
X
O
O
O
