Problem
4. Skipped stitches at sewing
start
Thread unravelling at sew-
ing start
Upper
thread
5. Uneven seam
6. Large degree of puckering
(excess tension)
¡ Is the thread tension spring tension too strong?
Reduce the tension of the thread tension spring.
¡ Is the thread tension spring operating range too large?
Lower the position of the thread tension spring.
¡ Is the needle too wide?
Try using a needle with a count that is one lower than the current
needle.
¡ Is the trailing length of the upper thread too short after thread trim-
ming?
Adjust the pretension.
0749M
¡ Are the threads not being trimmed cleanly?
Sharpen the fixed knives, or replace the fixed and movable knives if
necessary.
¡ Is the length of thread trailing out from the bobbin case after thread
trimming too short?
If the bobbin is spinning loosely, replace the anti-spin spring in the
bobbin case.
¡ Is the needle up stop position too high?
Adjust the synchronizer.
0623M
¡ Is the presser foot pressure too weak?
Adjust the presser foot pressure.
¡ Is the feed dog too low?
Adjust the feed dog height.
¡ Is the bobbin scratched?
If the bobbin is damaged, smooth it with an oiled grindstone or re-
place it.
0473M
¡ Is the upper thread tension too strong?
Make the upper thread tension as weak as possible.
¡ Is the lower thread tension too strong?
Make the lower thread tension as weak as possible.
¡ Is the point of the needle broken?
If the point of the needle is broken, replace the needle.
¡ Is the needle too thick?
Replace with as thin a needle as possible.
¡ Is the thread tension spring tension too strong?
Make the thread tension spring tension as weak as possible.
¡ Is the thread tension spring operating range too large?
Lower the position of the thread tension spring to as low a position
as possible.
¡ Is the presser foot pressure too strong?
Adjust the presser foot pressure.
¡ Is the sewing speed too fast?
Reduce the sewing speed slightly.
¡ Is the angle of the feed dog incorrect?
Tilt the front of the feed dog down slightly.
0978M
Possible cause
SL-778A

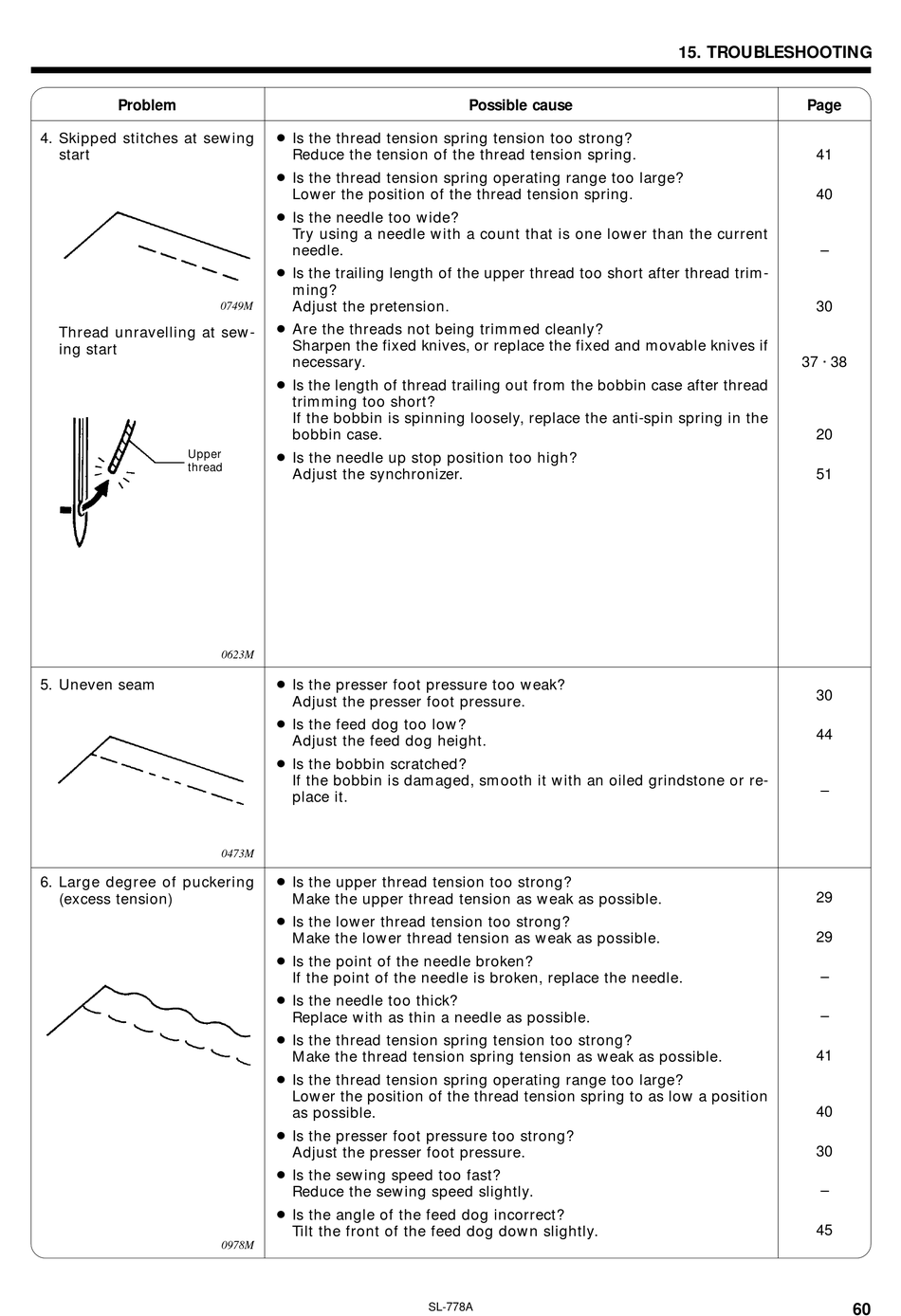

15. TROUBLESHOOTING
Page
41
40
–
30
37 · 38
20
51
30
44
–
29
29
–
–
41
40
30
–
45
60
