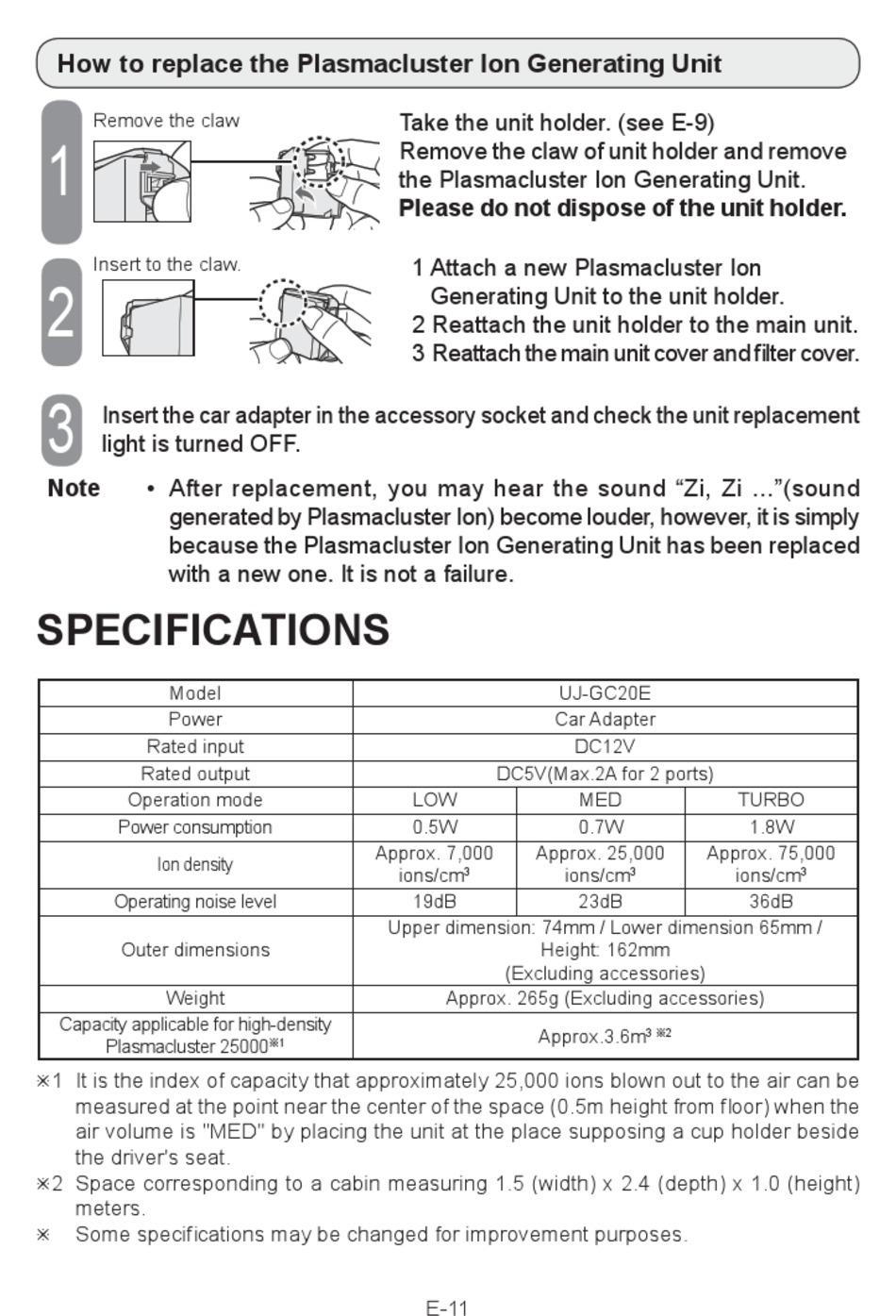

How to replace the Plasmacluster Ion Generating Unit
Remove the claw
1
Insert to the claw.
2
3
Insert the car adapter in the accessory socket and check the unit replacement
light is turned OFF.
Note • After replacement, you may hear the sound "Zi, Zi ..."(sound
generated by Plasmacluster Ion) become louder, however, it is simply
because the Plasmacluster Ion Generating Unit has been replaced
with a new one. It is not a failure.

SPECIFICATIONS

Model
Power
Rated input
Rated output
Operation mode
Power consumption
Ion density
Operating noise level
Outer dimensions
Weight
Capacity applicable for high-density
Plasmacluster 25000
1 It is the index of capacity that approximately 25,000 ions blown out to the air can be
measured at the point near the center of the space (0.5m height from fl oor) when the
air volume is "MED" by placing the unit at the place supposing a cup holder beside
the driver's seat.
2 Space corresponding to a cabin measuring 1.5 (width) x 2.4 (depth) x 1.0 (height)
meters.
Some specifi cations may be changed for improvement purposes.

Take the unit holder. (see E-9)
Remove the claw of unit holder and remove
the Plasmacluster Ion Generating Unit.
Please do not dispose of the unit holder.
1 Attach a new Plasmacluster Ion
Generating Unit to the unit holder.
2 Reattach the unit holder to the main unit.
3 Reattach the main unit cover and fi lter cover.
LOW
0.5W
Approx. 7,000
ions/cm
19dB
Upper dimension: 74mm / Lower dimension 65mm /
Approx. 265g (Excluding accessories)
1
E-11
UJ-GC20E
Car Adapter
DC12V
DC5V(Max.2A for 2 ports)
MED
0.7W
Approx. 25,000
ions/cm
3 3
23dB
Height: 162mm
(Excluding accessories)
Approx.3.6m
TURBO
1.8W
Approx. 75,000
ions/cm
3
36dB
3 2
