WIRED INPUTS OPERATING LOGIC
The two wired inputs (P1 and P2) work with HOLD TO RUN logic:
the motor moves up or down as long as the button is pressed.
The motor direction (up/down) depends on the position of the
motor and wiring.
NOTE: during the movement of the motor, if the second
button is pressed, the motor reverses the motion.
TRANSMITTER OPERATING LOGIC
The wireless controls via transmitter operate with step by step
logic.
Each time the buttons are pressed, the operating logic will be as
follows:
CLOSES
STOPS STOPS
OPENS OPENS
SENSOR ACTIVATION
To activate the sensors function, at least one transmitter must be
stored.
NOTE: the HURRICANE RS and TYPHOON sensors use one
channel in the memory of the DEV-R1 module
IMPORTANT:
• Anemometer causes inhibition of functioning of both radio
transmitter and external push button for ca. 8 minutes.
• The anemometrical sensor should be installed close to the
awnings, in order to avoid damages in case of very strong
wind.
CLOSES CLOSES
STOPS
OPENS
REMOTE CONTROL MEMORY STORAGE
Up to 30 different channels can be stored on each control unit.

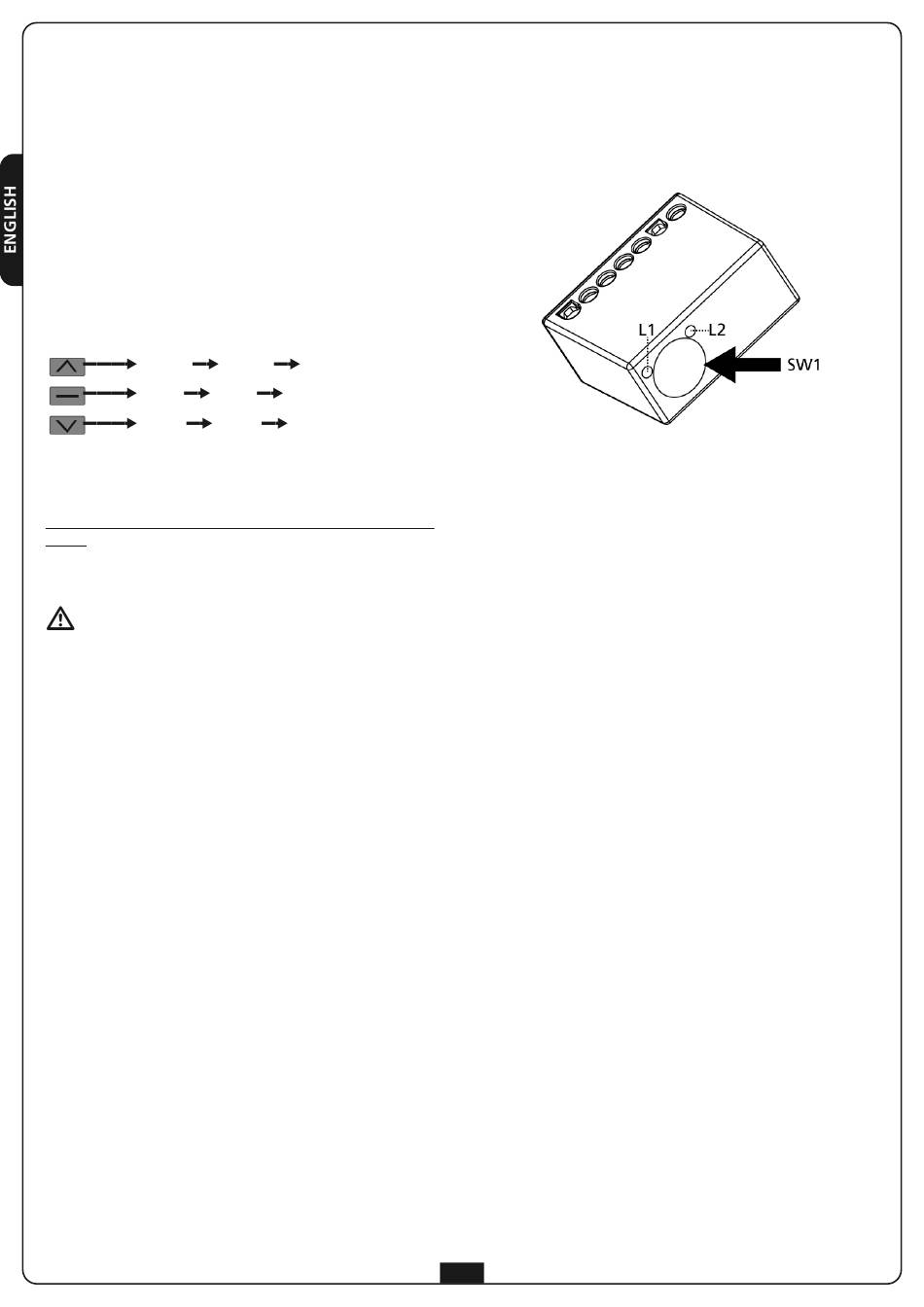

The button SW1 is used to start the data saving procedure in the
desired DEV-R1 module.
Follow the steps outlined in the specific paragraphs.
L1 - the led lights up when you press the SW1 button to store
or clear transmitters
L2 - the led lights up when the DEV-R1 module receives a code
which is stored in the memory
MEMORY CLEARING BY MEANS OF BUTTON
SW1
This procedure enables to clear all the transmitters stored in the
DEV-R1 module.
Proceed as follows:
1. Switch off the DEV-R1 module
2. Hold the button SW1 and at the same time switch on the
DEV-R1 module
3. After 2 seconds, release the button SW1: the motor confirms
successful clearing by moving in both directions for half a
second
