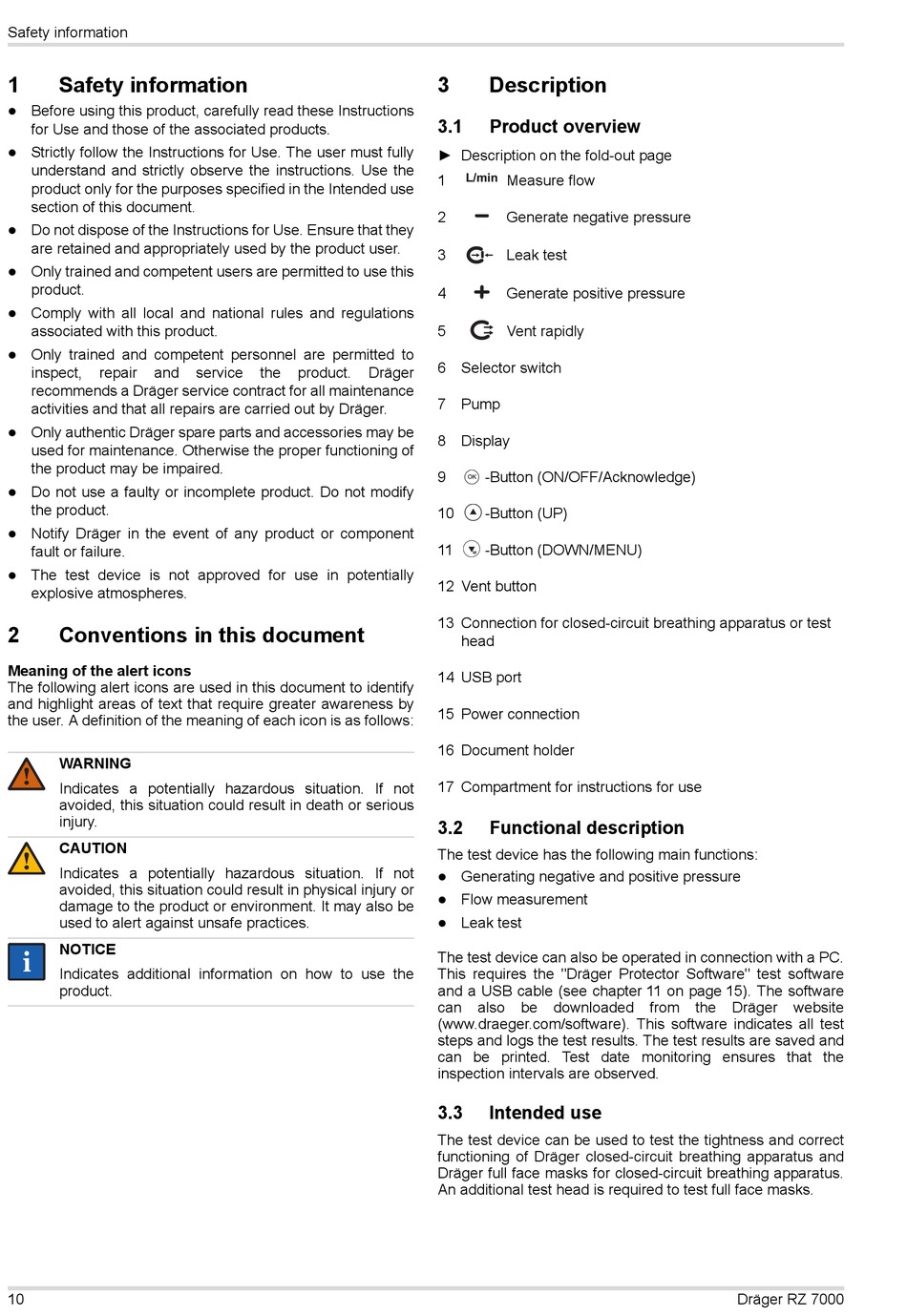

Safety Information; Conventions In This Document - Dräger RZ 7000 Gebrauchsanweisung

Safety information

1 Safety information
Before using this product, carefully read these Instructions

for Use and those of the associated products.
Strictly follow the Instructions for Use. The user must fully

understand and strictly observe the instructions. Use the
product only for the purposes specified in the Intended use
section of this document.
Do not dispose of the Instructions for Use. Ensure that they

are retained and appropriately used by the product user.
Only trained and competent users are permitted to use this

product.
Comply with all local and national rules and regulations

associated with this product.
Only trained and competent personnel are permitted to

inspect, repair and
recommends a Dräger service contract for all maintenance
activities and that all repairs are carried out by Dräger.
Only authentic Dräger spare parts and accessories may be

used for maintenance. Otherwise the proper functioning of
the product may be impaired.
Do not use a faulty or incomplete product. Do not modify

the product.
Notify Dräger in the event of any product or component

fault or failure.
The test device is not approved for use in potentially

explosive atmospheres.
2

Conventions in this document

Meaning of the alert icons
The following alert icons are used in this document to identify
and highlight areas of text that require greater awareness by
the user. A definition of the meaning of each icon is as follows:
WARNING
!
Indicates a potentially hazardous situation. If not
avoided, this situation could result in death or serious
injury.
CAUTION
!
Indicates a potentially hazardous situation. If not
avoided, this situation could result in physical injury or
damage to the product or environment. It may also be
used to alert against unsafe practices.
NOTICE
i i
Indicates additional information on how to use the
product.
10
service the product.
3 Description
3.1 Product overview
► Description on the fold-out page
L/min
1 Measure flow
2 Generate negative pressure
3 Leak test
4 Generate positive pressure
5 Vent rapidly
6 Selector switch
Dräger
7 Pump
8 Display
9 -Button (ON/OFF/Acknowledge)
OK
10 -Button (UP)
11 -Button (DOWN/MENU)
M
12 Vent button
13 Connection for closed-circuit breathing apparatus or test
head
14 USB port
15 Power connection
16 Document holder
17 Compartment for instructions for use
3.2 Functional description
The test device has the following main functions:
Generating negative and positive pressure

Flow measurement

Leak test

The test device can also be operated in connection with a PC.
This requires the "Dräger Protector Software" test software
and a USB cable (see chapter 11 on page 15). The software
can also be
(www.draeger.com/software). This software indicates all test
steps and logs the test results. The test results are saved and
can be printed. Test date monitoring ensures that the
inspection intervals are observed.
3.3 Intended use
The test device can be used to test the tightness and correct
functioning of Dräger closed-circuit breathing apparatus and
Dräger full face masks for closed-circuit breathing apparatus.
An additional test head is required to test full face masks.
downloaded from the Dräger website
Dräger RZ 7000
