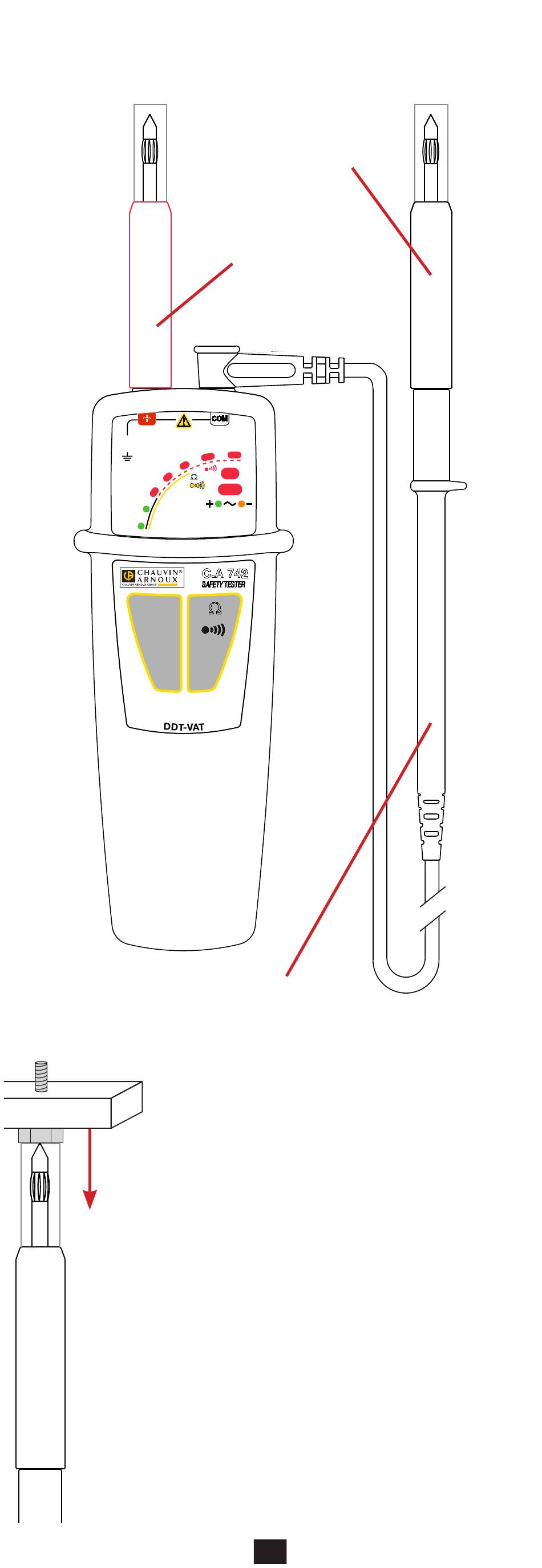

Connect the red IP2X probe tip to the + terminal and the black
probe lead to the COM terminal. Then connect the black IP2X
probe tip to the probe lead.
Red IP2X
probe tip.
+
COM
600V
400
CAT IV
230
127
Ω
50
+
24
V
AC
DC
12
C.A 742
SAFETY TESTER
Ω
AUTO TEST
Black probe lead.
To perform a test, position the probe tip op-
posite the object to be tested or the outlet.
Press: the protection slides back and the
probe tip touches the object to be tested.
Black IP2X
probe tip.
690 AC
750 DC
Ph
ELV
-
