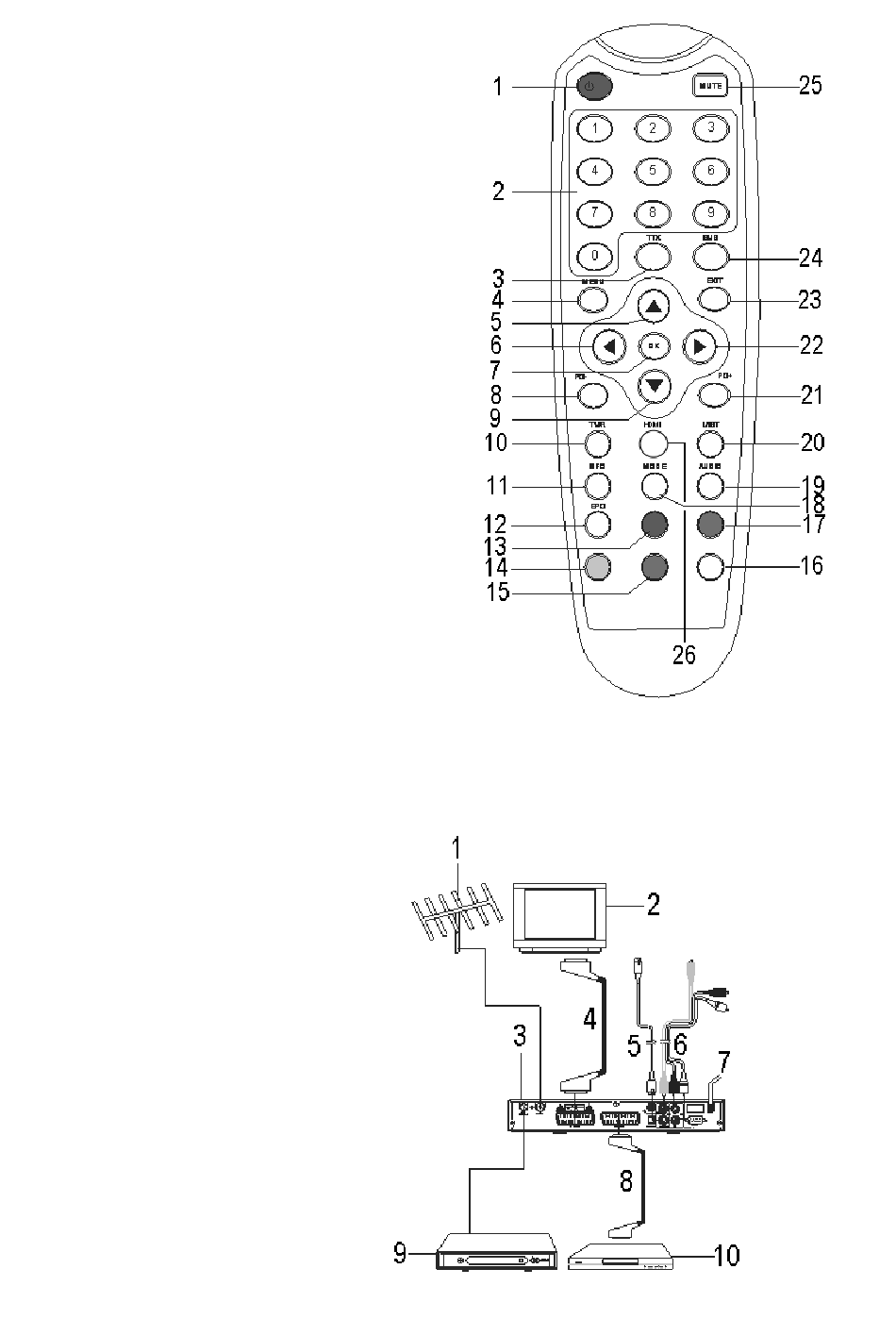

Remote Control
1. Standby button
2. Numerical buttons
3. TTX (Teletext) button
4. MENU button
5. ▲ button (UP / CH +)
6. ◄ button (LEFT / VOL -)
7. OK button
8. PG- button (page down)
9. ▼ button (DOWN / CH -)
10. TV / R button (TV / radio channel)
11. INFO button (channel information)
12. EPG button (Electronic Program Guide)
13. RED button
14. YELLOW button
15. BLUE button
16. WHITE button
17. GREEN button
18. MODE button
19. AUDIO button
20. LAST button (last channel)
21. PG+ button (page up)
22. ► button (RIGHT / VOL +)
23. EXIT button
24. SUB button (subtitle)
25. MUTE button
26. HDMI™
5. Connection
• Make sure the power switch and other equipment to be connected are turned off before connection.
• Observe the colour coding when connecting audio and video cords.
• Use the correct output mode when connecting the system to the TV set (including signal mode and signal code
type) to avoid image distortion.
1. Aerial (optional)
2. TV set (optional)
3. DVBTR
4. TV SCART connector (cable optional)
5. Digital video connector
6. Audio / Video cable (cable optional)
7. Power cord
8. VCR SCART connector (cable optional)
9. Second DVBTR (optional)
10. VCR (optional)
