4. Description

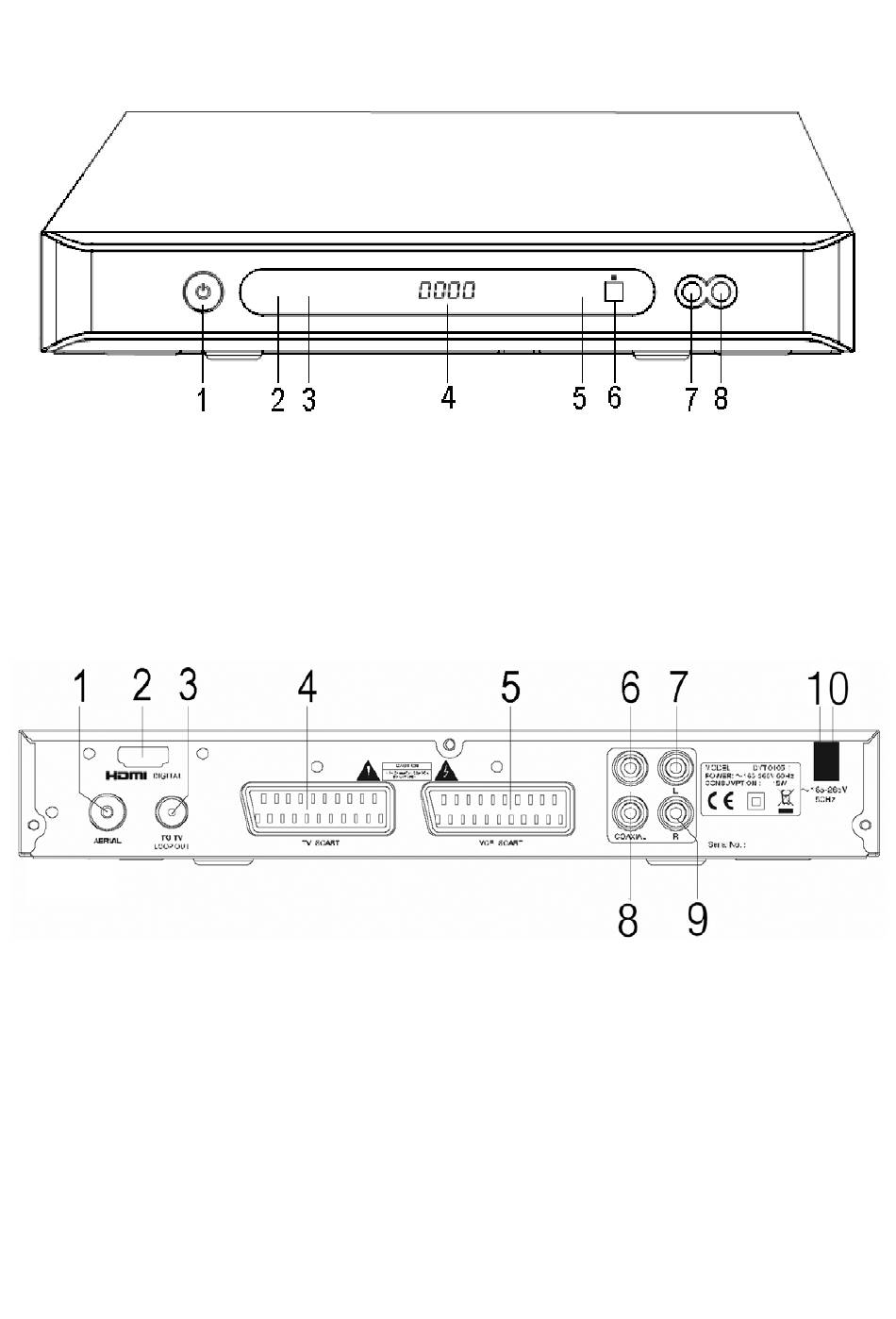

Front Panel
Fig. 1
1. Standby button
2. Power LED
3. Lock LED
4. Digital LED display
Rear Panel
Fig. 2
1. Aerial connection
2. HDMI™ output jack
3. Loop out connection
4. TV SCART connection
5. VCR SCART connection
NOTE: Unplug and keep the power cord orderly when the unit is idle for a long time in order to avoid electricity
leakage and shock.
DVBTR_v2
5. Standby LED
6. IR sensor
7. PROG ▼button (DOWN / CH -)
8. PROG ▲button (UP / CH +)
6. Video output
7. Left channel output connection
8. Audio coaxial output connection
9. Right channel output connection
10. AC power cord
