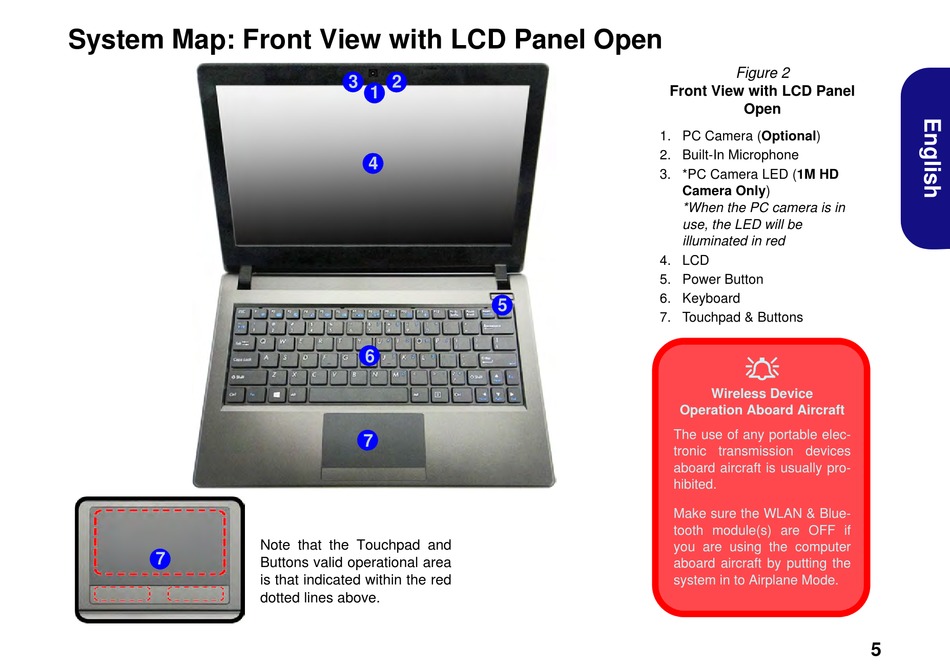

System Map: Front View with LCD Panel Open

7
3 2
1
4
6
7
Note that the Touchpad and
Buttons valid operational area
is that indicated within the red
dotted lines above.
Front View with LCD Panel
1. PC Camera (Optional)
2. Built-In Microphone
3. *PC Camera LED (1M HD
4. LCD
5. Power Button
6. Keyboard
5
7. Touchpad & Buttons
The use of any portable elec-
tronic transmission devices
aboard aircraft is usually pro-
hibited.
Make sure the WLAN & Blue-
tooth module(s) are OFF if
you are using the computer
aboard aircraft by putting the
system in to Airplane Mode.
Figure 2
Open
Camera Only)
*When the PC camera is in
use, the LED will be
illuminated in red

Wireless Device
Operation Aboard Aircraft
5
