Seite GB-22 Getting started

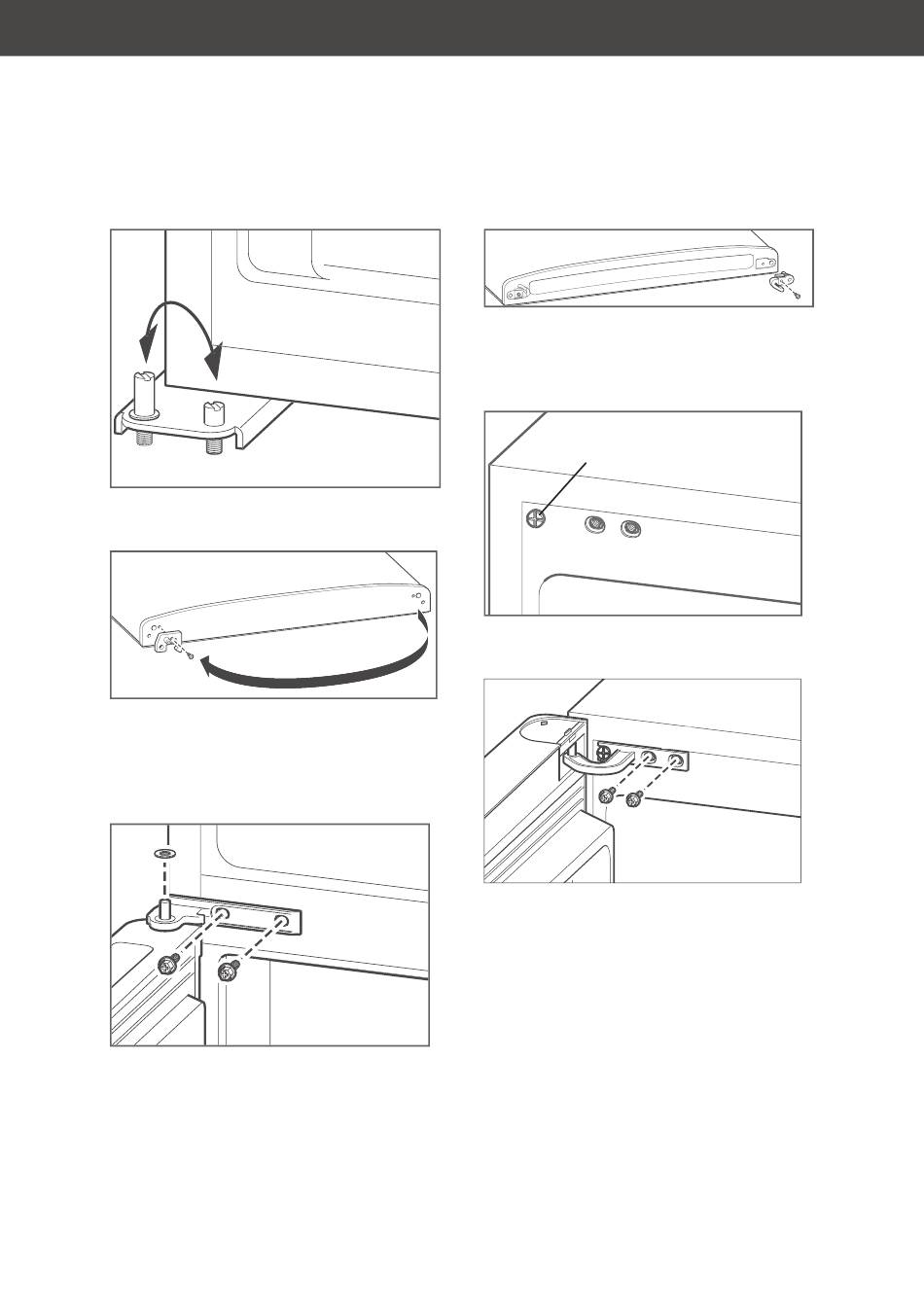

19. Unscrew both pin screws, swap and
re-tighten.
20. Unscrew the hinge bracket on the under-
side of the bottom door and attach to the
new hinge side, the other way round.
21. Place the bottom door over the outer pin
screw.
22. Insert the middle hinge into the bottom
door and screw tight.
23. Place washer over the hinge pin.
24. Close bottom door.
25. Remove the plastic insert on the under-
side of the top door. Position and screw
the supplied plastic insert onto the new
hinge side.
B
26. Screw-in screw B of the top hinge on the
new hinge side, without tightening it.
27. Place top door over the hinge pin of the
middle hinge.
28. Carefully lever the top hinge into the
door recess.
29. Guide top hinge around screw B and se-
cure with screw A.
A
