24 HOUR DISPOSABLE TUBING CONNECTION GUIDE FOR MEDIVATORS
Using MEDIvATOrS™ SCOPE BUDDY
®

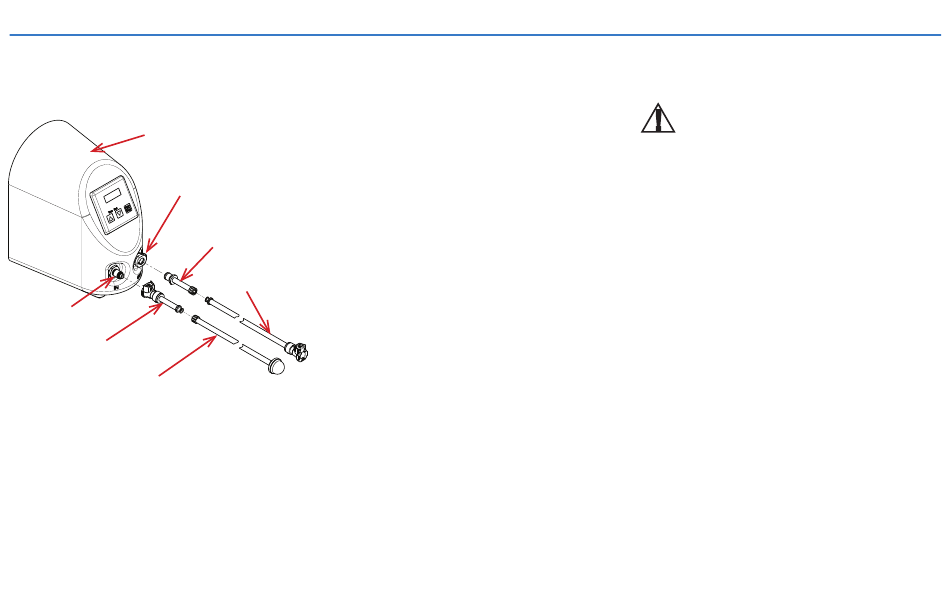

SCOPE BUDDY FLUSHING AID CONNECTION
DIAGRAM
SCOPE BUDDY
Flushing Aid
Outlet Port
Inlet Port
SCOPE BUDDY
Adapter for Disposable
Tubing - Female
Fluid Intake Line
NOTE: Refer to ScOpE Buddy Flushing Aid user Manual for
operating instructions.
FLUSHING TIMES FOR
24 HOUR SCOPE BUDDY DISPOSABLE TUBING
When using the ScOpE Buddy Flushing Aid and 24 Hour ScOpE
Buddy disposable Tubing, all endoscopes should be flushed
using a programmed time of 60 seconds only.
ScOpE Buddy and MEdIVATORS is a registered trademarks
® ®
and trademarks of MEdIVATORS Inc.
Flushing Aid

CONNECTION INSTRUCTIONS

SCOPE BUDDY™ Adapter for Disposable Tubing - Female
Align the female adapter coupling to the "IN" port on the
ScOpE Buddy Flushing Aid and push on until it snaps
into place. This adapter is reusable (does not need to be
discarded
SB-110-Hu1005.
SCOPE BUDDY Adapter for Disposable Tubing - Male
Align the male adapter coupling to the "OuT" port on the
ScOpE Buddy Flushing Aid and push on until it snaps
SCOPE BUDDY
into place. This adapter is reusable (does not need to be
Adapter for Disposable
discarded
Tubing - Male
SB-110-Hu1005.
SCOPE BUDDY
Disposable Tubing
SCOPE
Delivery Tube MEDIVATORS DSD Hookup
Align the male luer on the delivery Tube with the female Luer on
the ScOpE Buddy Adapter for disposable Tubing and screw
clockwise until fully engaged. Align the female adapter coupling
to the male adapter coupling on the appropriate MEdIVATORS
dSd Hookup. push on until it snaps into place. Refer to the
corresponding MEdIVATORS dSd Hookup connection guide for
specific instruction on connection to endoscope channels.
The ScOpE Buddy delivery Tubing is for 24 hour use and sold
under order number SB-110-Hu003. discard daily.
Fluid Intake Line
Align the female luer on the uptake Tube with the male Luer on
the ScOpE Buddy Adapter for disposable Tubing and screw
clockwise until fully engaged. This tubing is for 24 hour use.
discard daily.
daily) and is sold separately, order
daily) and is sold separately, order
BUDDY Disposable Connector for
If you have any questions regarding ScOpE Buddy 24 Hour disposable Tubing connections, in the u.S., please contact
MEdIVATORS Technical Support at 1-800-444-4729. Outside the u.S., please contact your MEdIVATORS distributor.
2
DSD ENDOSCOPES
®
READ ALL INSTRUCTIONS PRIOR TO CONNECTION
WARNINGS & CAUTIONS
Failure to verify fluid flow through the endoscope may
result in an endoscope which is not properly flushed or
cleaned. Always verify all channel connections and if fluid
is exiting all endoscope ports including the distal end.
number:
For 24 hour use only. do not reprocess and discard daily.
Read all instructions prior to use. Failure to follow these
may result in inadequate flushing of endoscopes. Refer to
ScOpE Buddy Flushing Aid user Manual for additional
instructions.
Install all necessary waterproof caps, plugs and cleaning
adapters to endoscope prior to immersion.
number:
users operating a MEdIVATORS ScOpE Buddy Flushing
Aid and MEdIVATORS ScOpE Buddy disposable Tubing
use with
must be trained and competent in the understanding of
endoscope channel systems.
