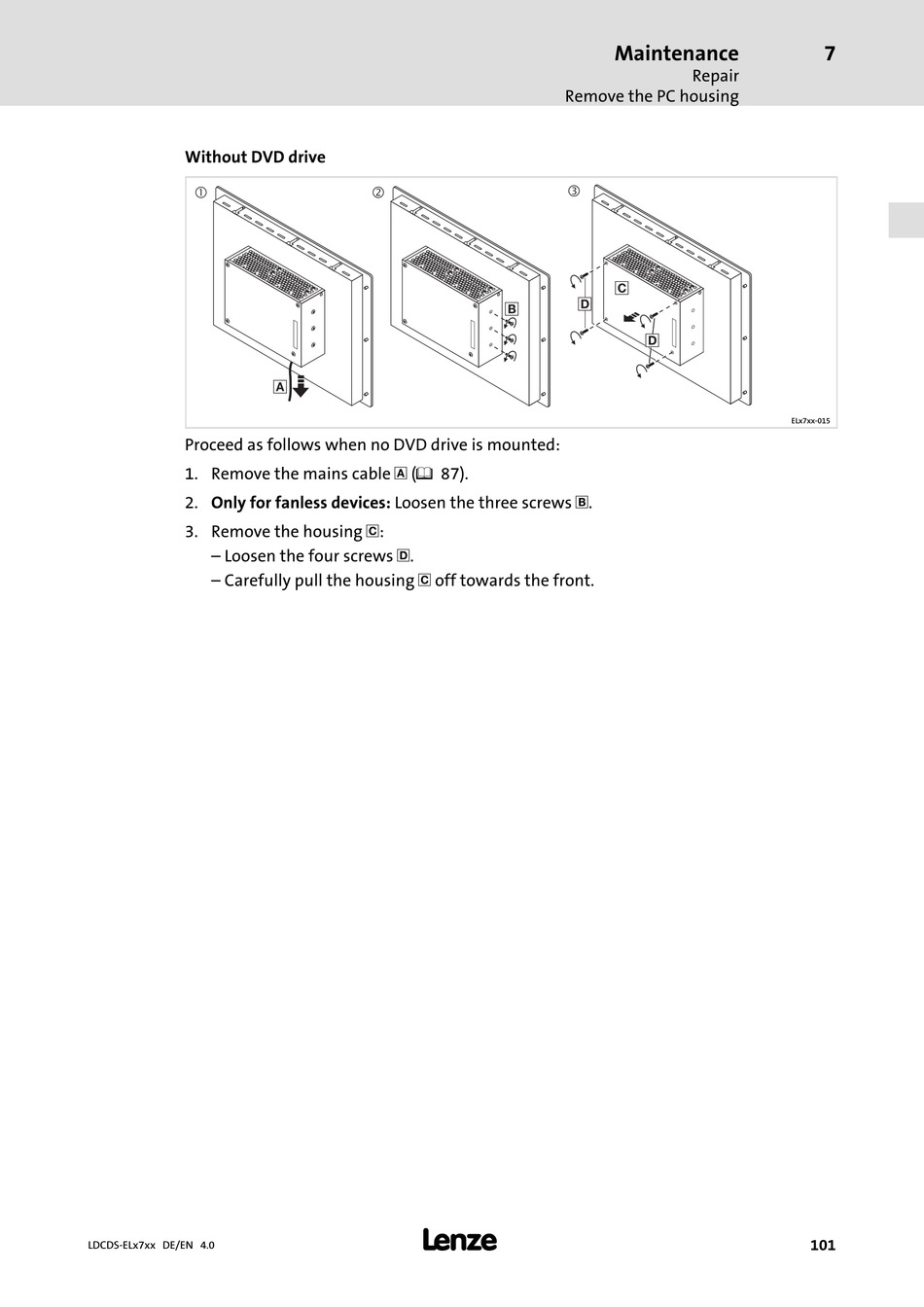

Without DVD drive

Proceed as follows when no DVD drive is mounted:
1. Remove the mains cable 0 (¶ 87).
2. Only for fanless devices: Loosen the three screws 1.
3. Remove the housing 2:
– Loosen the four screws 3.
– Carefully pull the housing 2 off towards the front.
LDCDS−ELx7xx DE/EN 4.0
‚
0
l
Maintenance
Remove the PC housing
ƒ
2
3
1
3
7
Repair
ELx7xx−015
101
