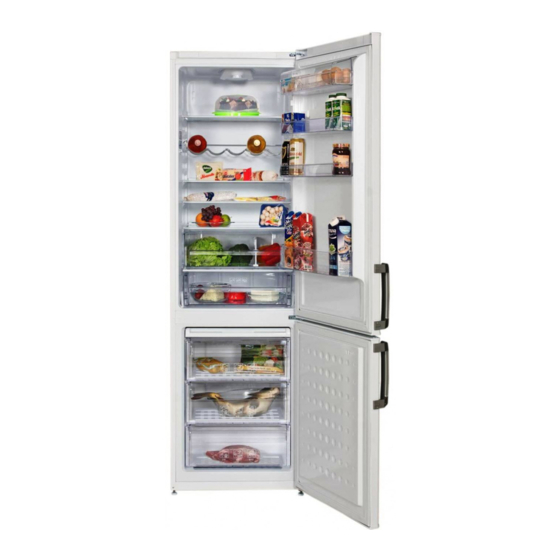

Frost Free Refrigerator-Freezer type I CH234020 Frost-Free Kühl-Gefrier-Typ I Frost Refrigerateur-Congelateur de type I Frost Free Refrigerador-Congelador de tipo I Frost Free Frigo-Congelatore di tipo I...
Seite 3
WARNING! In order to ensure a normal operation of your refrigerating appliance, which uses a completely environmentally friendly refrigerant the R600a (flammable only under certain conditions) you must observe the following rules: Do not hinder the free circulation of the air around the appliance. ...
Index Índice Safety first /1 La seguridad es lo primero /25 Electrical requirements /2 Requisitos eléctricos /26 Transportation instructions /2 Instrucciones de transporte /26 Installation instructions /2 Instrucciones de instalación /26 Getting to know your appliance /3 Detalles del frigorífico /27 Suggested arrangement of food in the appliance /3 Disposición recomendada de los alimentos en Temperature control and adjustment /3...
Instruction for use Congratulations on your choice of a BEKO Quality Appliance, designed to give you many years of service. Safety first! Do not connect your appliance to the electricity supply until all packing and transit protectors have been removed.
Instruction for use Electrical requirements be held liable. 4. The appliance must be protected against Before inserting the plug into the wall socket rain, moisture and other atmospheric make sure that the voltage and the frequency influences. shown in the rating plate inside the appliance Important! corresponds to your electricity supply.
Instruction for use 8. For maximum efficiency, the removable Getting to know your appliance shelves should not be covered with paper or other (Item 1) materials to allow free circulation of cool air. 1 - Setting knob and interior light 9.
Instruction for use Remember you must take your reading very Storing frozen food quickly since the thermometer temperature Your freezer is suitable for the long-term will rise very rapidly after you remove it from storage of commercially frozen foods and also the freezer.
Instruction for use Do not allow children to play with the Defrosting appliance or tamper with the controls. A) Fridge compartment Do not obstruct the freezer fan guard to The fridge compartment defrosts ensure that you obtain the best possible automatically.
Instruction for use 7. We recommend that you polish the metal Repositioning the door parts of the product (i.e. door exterior, cabinet Proceed in numerical order (Item 11). sides) with a silicone wax (car polish) to protect the high quality paint finish. Do’s and don’ts 8.
Instruction for use Don’t- Store bananas in your fridge Energy Consumption compartment. Maximum frozen food storage volume is Don’t- Store melon in your fridge. It can be achieved without using the middle and upper chilled for short periods as long as it drawer provided in the freezer compartment.
Seite 15
Instruction for use Information concerning the noise Trouble - shooting and the vibrations which might If the appliance does not operate when appear during the operation of the switched on, check; appliance • That the plug is inserted properly in the socket and that the power supply is on.
Gebrauchsanweisung Instruction for use Wir danken Ihnen , dass Sie sich für den Kauf eines BEKO Produkte entschieden haben. Ihr Gerät genügt hohen Ansprüchen und wurde für eine langjährige Benutzung entworfen. Wichtige Hinweise für Ihre Sicherheit ! Entfernen Sie das gesamte Verpackungsmaterial, bevor Sie das Gerät einschalten...
Gebrauchsanweisung Elektrischer Anschluss Transporthinweise Bevor Sie das Gerät anschliessen, prüfen Sie 1. Während des Transports sollte das Gerät unbedingt, ob die auf dem Typenschild stets aufrecht stehend und in angegebene Wechselspannung mit der Originalverpackung transportiert werden. Netzspannung übereinstimmt. Die 2. Wurde das Gerät waagerecht elektrischen Anschlüsse müssen den transportiert, so muß...
Gebrauchsanweisung 3. Halten Sie einen Raum um das Gerät, Allgemeine damit die Luft frei zirkulieren kann. (Abb.2) Einlagerungsempfehlungen Lüftungsgitter auf der Gerätrückseite einsetzen (Abb.3) 1. Im Kühlteil werden frische Lebensmittel 4. Das Gerät muss auf einem festen, ebenen und Getränke für kurze Zeit aufbewahrt. Untergrund stehen.
Gebrauchsanweisung Temperaturkontrolle und - Bevor der Inbetriebnahme einstellung Bevor der Innbetriebnahme prüfen Sie ob : 1. Die Stellfüßen vorne ausgeglichen wurden. Die Betriebstemperatur wird über den 2. Der Innenraum gereinigt wurde und die Luft Einstellknopf (5) im oberen Bereich des frei zirkulieren kann Kühlfaches eingestellt.
Gebrauchsanweisung Tiefkühlbereich Einfrieren von frischen Das Abtauen erfolgt bei eisfreien Geräten Lebensmitteln automatisch. Sie müssen nichts weiter dazu Einige Regeln sollten beachtet werden, um tun. Das anfallende Wasser sammelt sich in Qualitätsverluste zu vermeiden und die der Kompressorschale. Dort verdunstet das Erhaltung von Konsistenz, Geschmack, Wasser durch die Kompressorwärme.
Gebrauchsanweisung 8. Staub, der sich auf dem Kondensator Wechsel der Glühlampe hinter dem Gerät ansammelt, sollte einmal pro Die Innenbeleuchtung Ihres Kühlschranks Jahr mit einem Staubsauger entfernt werden. sollte ausschließlich vom autorisierten 9. Überprüfen Sie die Türdichtung Kundendienst ausgetauscht werden. regelmäßig auf Sauberkeit und achten Sie Die Glühbirnen für dieses Haushaltsgerät sind darauf, daß...
Gebrauchsanweisung Falsch: Bananen im Kühlabteil lagern. Was Sie tun sollten und was auf Falsch: Melonen im Kühlabteil lagern. - keinen fall-einige Hinweise Melonen können allerdings für kurze Zeit gekühlt werden, solange sie eingewickelt Richtig: Das Gerät regelmäßig reinigen und abtauen (siehe Abschnitt „Abtauen”). werden, so daß...
Gebrauchsanweisung Energieverbrauch Hinweise zu Geräuschen und Vibrationen, die im Betrieb auftreten Das maximale TK-Stauvolumen wird ohne können mittlere und obere Schublade im Tiefkühlfach erreicht. Der Energieverbrauch Ihres Gerätes 1. Das Betriebsgeräusch kann im laufenden wurde bei komplett gefülltem Tiefkühlfach Betrieb zunehmen. ohne mittlere und obere Schublade ermittelt.
Gebrauchsanweisung Massnahmen bei Betriebstőrunger • (falls der angegossene Stecker ersetzt wurde) ob der neu angebrachter Stecker Wenn das Gerät nach dem Einschalten nicht richtig verdrahtet wurde. funktionieren sollte, dann prüfen Sie, ob • der Netzstecker richtig in der Steckdose Sollte das Gerät nach dieser Überprüfung immer noch nicht funktionieren, dann setzen steckt, und daß...
Notice d’utilisation Félicitations pour avoir choisi un appareil de qualité BEKO, projeté pour vous offrir beaucoup d’années de fonctionnement. Premièrement la sécurité! - Ne pas connecter votre appareil au réseau électrique avant d’avoir enlevé tout emballage ou pièce de protection pendant le transport - Laissez l’appareil rester pendant au moins 4 heures...
Notice d’utilisation Une ventilation insuffisante entraînerait un Avertissements et conseils mauvais fonctionnement et une augmentation importants de la consommation d'électricité. Il est très important que cette notice Si l'appareil a été transporté couché, il est d'utilisation soit gardée avec l'appareil pour recommandé...
Notice d’utilisation Preentation de l’appareil Entreposage des produits a (Fig. 1) conserver 1 - Manette de réglage et éclairage intérieur Une conservation et une hygiene optimales 2 - Clayettes réglables sont obtenues dans les conditions suivantes : Les denrées a conserver dans le 3 - Clayette support bouteille 4 - Collecteur d’eau réfrigérateur doivent etre fraîches et refroidies...
Notice d’utilisation La température normale de stockage de votre Congélation des produits frais appareil doit être de -18°C (-17,78°C). Vous Congelez exclusivement des produits de pouvez obtenir des températures plus basses premiere qualité apres les avoir ettoyés et en ajustant la manette de réglage en direction préparés si nécessaire.
Notice d’utilisation Conservation des produits congelés Les fours a micro-ondes peuvent etre utilisés pour décongeler la plupart des aliments. Les produits congelés peuvent etre rangés a Respectez les conseils figurant dans la notice n'importe quel emplacement de la partie de ces fours.
Notice d’utilisation b) partie congélateur Nettoyage Le dégivrage de type FROID VENTILE est Avant toute opération de nettoyage, prenez la entièrement automatique. Aucune intervention précaution de débrancher l'appareil. de votre part n'est requise. L'eau est récoltée Nettoyage intérieur : dans le bac du compresseur. De par la Il est recommandé...
Notice d’utilisation 2. Veillez à ce que les denrées déjà 2. Bruits semblables à ceux d'un écoulement réfrigérées/congelées au moment de leur ou d'une vaporisation de liquide achat soient introduites dans l'appareil le plus - Ces bruits sont provoqués par l'écoulement tôt possible, surtout pendant l'été.
Notice d’utilisation Instrucciones de uso Enhorabuena por haber elegido un electrodoméstico de alta calidad de BEKO, diseñado para prestar servicio durante muchos años. La seguridad es lo primero No conectar el frigorífico a la toma de corriente hasta que no se hayan retirado todos los protectores de embalaje y transporte.
Instrucciones de uso Requisitos eléctricos ponerlo en funcionamiento hasta después de pasadas al menos 4 horas, para permitir que el Antes de conectar el enchufe a la toma de sistema se asiente. corriente, se debe comprobar que el voltaje y 3.
Instrucciones de uso • Poner la tapa de ventilación posterior en la Disposición recomendada de los parte trasera del frigorífico para comprobar la alimentos en el frigorífico distancia entre el frigorífico y la pared (figura 3). 4. El frigorífico sólo se debe colocar sobre Normas para conseguir el almacenamiento e superficies lisas.
Instrucciones de uso 11. Algunas frutas y verduras se deterioran si Recuerde que debe leer la temperatura del se almacenan a temperaturas cercanas a termómetro inmediatamente, ya que ésta 0°C. Por lo tanto, las piñas, los melones, los subirá muy rápidamente después de retirar el pepinos, los tomates y productos similares termómetro del congelador.
Instrucciones de uso Antes del uso Almacenamiento de alimentos congelados Comprobación final Antes de empezar a utilizar el frigorífico, El congelador es adecuado para almacenar comprobar que: alimentos precongelados durante periodos 1. Los pies se han ajustado hasta conseguir prolongados, así como para congelar y una nivelación perfecta.
Instrucciones de uso Desescarchado Avisos El ventilador presente en el compartimento A) Compartimento frigorífico del congelador distribuye aire frío. No El compartimento del frigorífico se deshiela de introduzca nunca objetos a través del manera automática. El agua del deshielo protector. No permita que los niños jueguen circula hasta el conducto de desagüe a través con el ventilador del congelador.
Instrucciones de uso 10. Nunca: Sustitución de la bombilla interior • Limpiar el frigorífico con material inadecuado; por ejemplo, productos derivados Para cambiar la bombilla utilizada para del petróleo. iluminar el frigorífico, póngase en contacto • Exponerlo a altas temperaturas. con el servicio técnico autorizado.
Instrucciones de uso Reposicionamiento de la puerta Correcto- Almacenar los alimentos precongelados conforme a las Continúe en orden de número (figura 11). instrucciones proporcionadas en los envases. Prácticas correctas e incorrectas Correcto- Elegir siempre alimentos frescos Correcto- Limpiar y desescarchar de alta calidad y comprobar que estén periódicamente el frigorífico (consultar la totalmente limpios antes de congelarlos.
Instrucciones de uso Incorrecto- Utilizar objetos con punta o Consumo energético bordes afilados, como cuchillos o El volumen máximo de almacenamiento de tenedores, para retirar el hielo. alimentos congelados se obtiene al retirar los Incorrecto- Introducir alimentos calientes en cajones superior y central del compartimento el frigorífico.
Instrucciones de uso Información referente al ruido y las Resolución de problemas vibraciones que pueden producirse Si el frigorífico no funciona al conectarlo, durante el funcionamiento del comprobar: aparato • Si se ha introducido correctamente el enchufe en la toma de corriente y si la 1.
Istruzioni per l’uso Instrucciones de uso Complimenti per aver scelto un elettrodomestico di qualità BEKO, creato per soddisfare parecchi anni di funzionamento. Innanzitutto la sicurezza! - Non collegare l’elettrodomestico alla rete elettrica prima di aver rimosso tutto l’imballaggio o le protezioni per il trasporto.
Istruzioni per l’uso Requisiti elettrici Istruzioni per il trasporto Prima di inserire la spina nella presa a muro 1. L'elettrodomestico deve essere trasportato assicurarsi che la tensione e la frequenza solo in posizione verticale. L'imballaggio riportate sull'etichetta informativa all'interno fornito deve essere intatto durante il trasporto. dell'elettrodomestico corrispondano 2.
Istruzioni per l’uso 3. Assicurarsi che ci sia spazio sufficiente Suggerimenti sulla disposizione del intorno all'elettrodomestico per garantire la cibo nell'elettrodomestico libera circolazione dell'aria (Elemento 2). • Collocare il coperchio di aerazione posteriore Linee guida per ottenere la conservazione e sul retro del frigorifero per impostare la distanza l'igiene ottimale: tra il frigorifero e il muro (Elemento 3).
Istruzioni per l’uso 12. I super alcolici devono essere conservati In caso di ghiaccio temporaneo accumulo nel in posizione verticale in contenitori ben chiusi. vano frigo, ridurre l'impostazione di min, Non conservare mai prodotti che contengono monitorando nel contempo che la temperatura gas propellenti infiammabili (ad esempio del frigorifero è...
Istruzioni per l’uso Conservazione di cibo congelato Sbrinamento Il freezer è adatto alla conservazione a lungo A) Scomparto frigo termine di cibi congelati disponibili in commercio Lo scomparto frigo si sbrina e può essere inoltre utilizzato per congelare e automaticamente. L'acqua di sbrinamento conservare cibi freschi.
Istruzioni per l’uso Avvertenza! Pulizia e manutenzione Le ventola nel freezer mettono in circolo aria 1. Si consiglia di spegnere l'elettrodomestico fredda. Non inserire mai oggetti attraverso la dalla presa e di scollegare il cavo di protezione. Non consentire ai bambini di alimentazione prima di pulire.
Istruzioni per l’uso 11. Rimozione del coperchio dello Cosa fare e cosa non fare scomparto latticini e del vassoio dello Sì- Pulire e sbrinare periodicamente sportello: l'elettrodomestico (vedere "Sbrinamento") • Per rimuovere il coperchio dello scomparto Sì- Conservare la carne e il pollame crudi latticini, sollevare prima il coperchio di circa sotto il cibo cotto e i prodotti caseari.
Istruzioni per l’uso No- Non conservare banane nello scomparto Consumo energetico frigo. ll volume massimo di conservazione di cibi No - Non conservare melone nel frigo. Può freddi può essere ottenuto senza usare il essere raffreddato per brevi periodi cassetto centrale e quello superiore che si purché...
Istruzioni per l’uso Informazioni sul rumore e sulle Risoluzione dei problemi vibrazioni che possono presentarsi Se l'elettrodomestico non funziona quando è durante il funzionamento acceso, controllare: dell'apparecchio • che la spina sia inserita correttamente nella presa e che l'alimentazione sia accesa (per 1.
