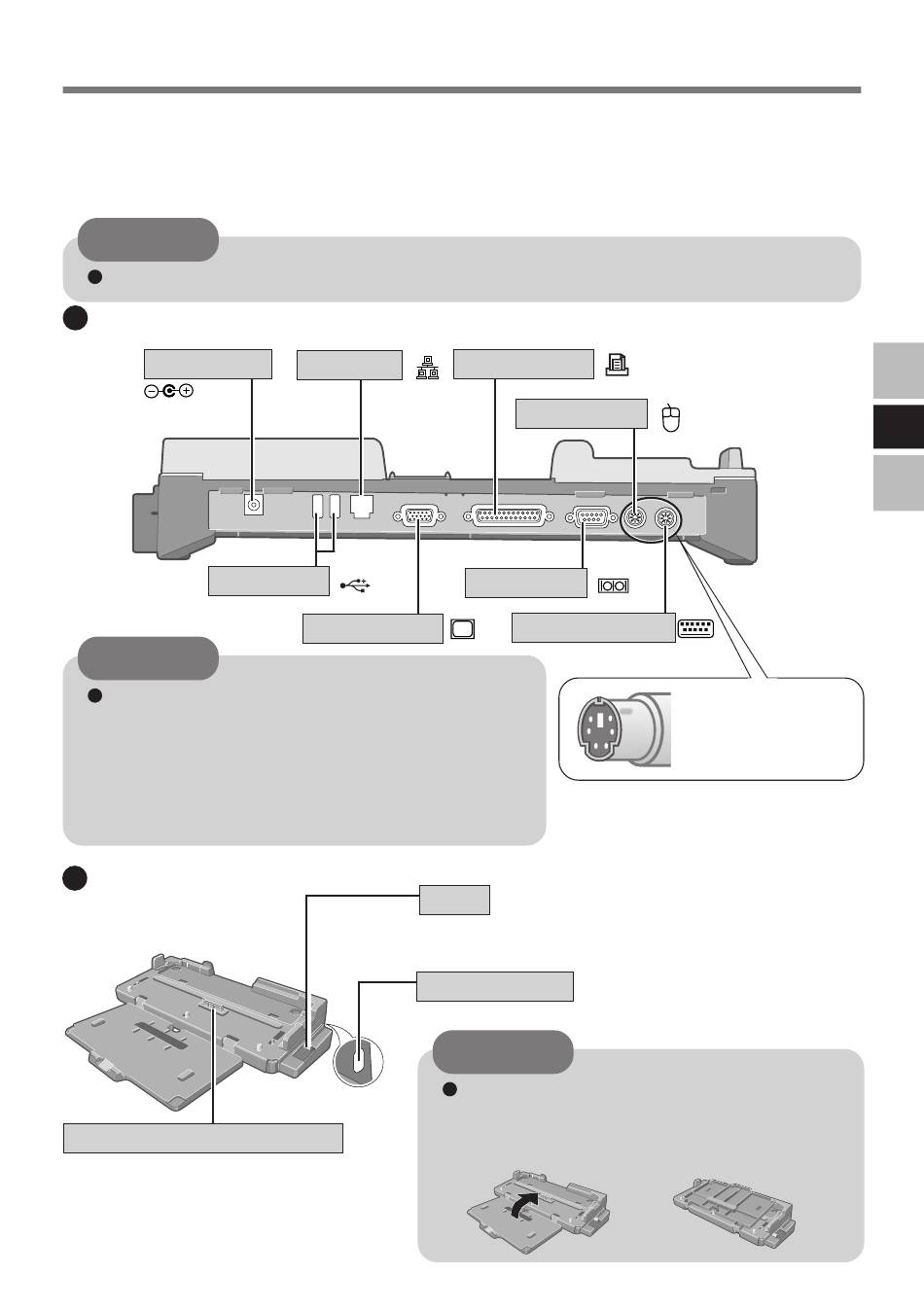

Names of Parts

The port replicator allows your peripheral devices to function exactly as if they were con-
nected directly to the computer. (Refer to "Names and Functions of Parts" in the "Operating
Instructions" accompanying the computer.)
CAUTION
Do not touch the expansion bus connector, pins or springs of the port replicator.
Rear
DC-IN Jack
DC IN 15.6V
USB Ports
CAUTION
When connecting the external display to the
display port on the port replicator, the charac-
ters on the external display may be blurred if
1280 × 1024 (or a higher resolution) is set. In
this case, select a resolution that is lower than
1280 × 1024.
Front/Right Side
<In use>
Expansion Bus Connector
This connects to the expansion bus con-
nector on the bottom of the computer.
Parallel Port
LAN Port
Serial Port
Display Port
Lever
Slide the lever all the way back to release the com-
puter.
Security Lock
CAUTION
Be sure to close the front of the port
replicator when the port replicator is not
connected to the computer.
Mouse Port
Keyboard Port
Check whether the
connectors are point-
ing up or down.
LOCK
<In storage>
