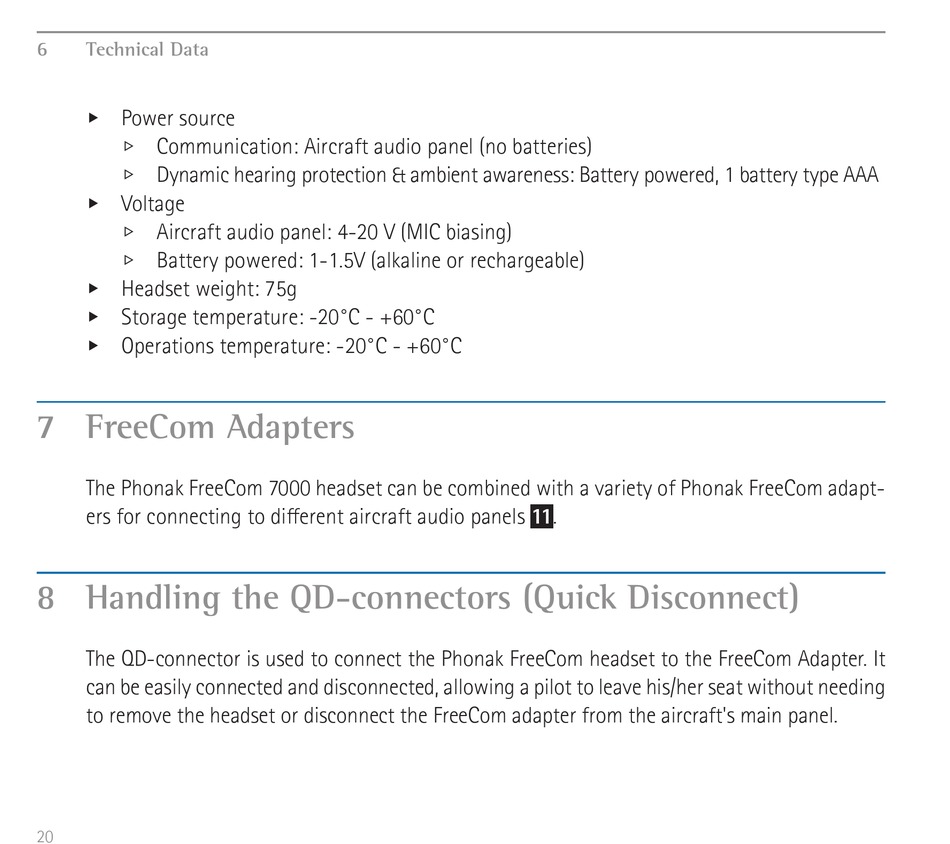

6 Technical Data
u Power source
U Communication: Aircraft audio panel (no batteries)
U Dynamic hearing protection & ambient awareness: Battery powered, 1 battery type AAA
u Voltage
U Aircraft audio panel: 4-20 V (MIC biasing)
U Battery powered: 1-1.5V (alkaline or rechargeable)
u Headset weight: 75g
u Storage temperature: -20°C - +60°C
u Operations temperature: -20°C - +60°C

7 FreeCom Adapters

The Phonak FreeCom 7000 headset can be combined with a variety of Phonak FreeCom adapt-
ers for connecting to different aircraft audio panels 11.
8 Handling the QD-connectors (Quick Disconnect)
The QD-connector is used to connect the Phonak FreeCom headset to the FreeCom Adapter. It
can be easily connected and disconnected, allowing a pilot to leave his/her seat without needing
to remove the headset or disconnect the FreeCom adapter from the aircraft's main panel.
