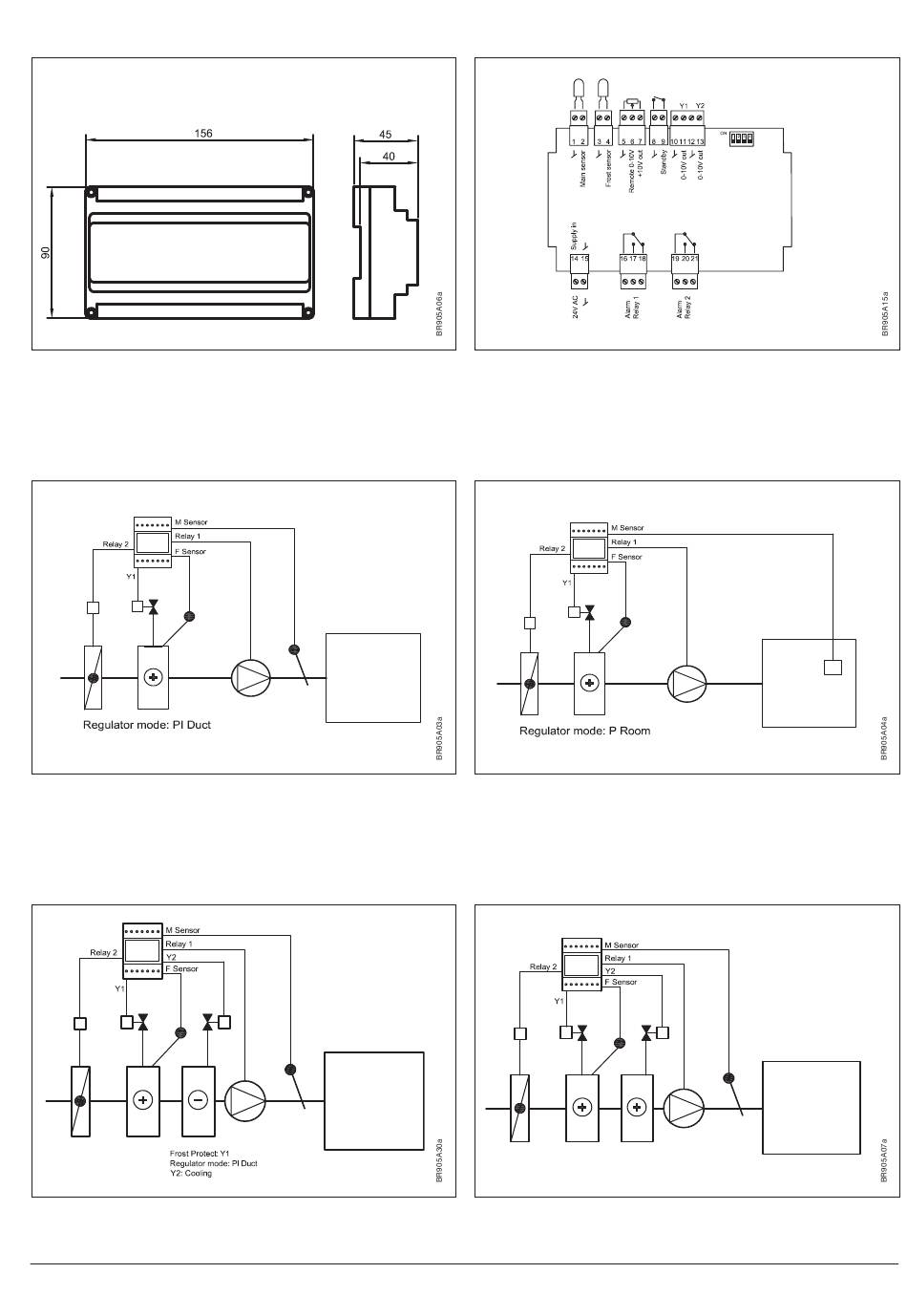

FIGURES
Fig. 1: Dimensioned sketch
Fig. 3: Inlet temperature control with one heating battery
Fig. 5: Sequential control of heating battery and cooling battery
12
Fig. 2: Terminal diagram
Fig. 4: Room temperature control with one heating battery
Fig. 6: Sequential control of two heating batteries
