Screen shot / still image
Using the foot switch, the monitor image can be frozen (still image) or also stored on the USB memory stick (screen
shot).
Still image
⇒ Press the foot switch for more than 1 sec.
♦ The still image is displayed, meaning the monitor image is frozen.
While the still image is displayed, the following actions can be performed:
⇒ Briefly press the foot switch.
♦ The screen contents are saved to the USB stick as a screen shot.
⇒ Press the foot switch for more than 1 sec.
♦ Switch back to the live image.
Saving a screen shot
Screen shots are only saved as 2D images.
⇒ Briefly press the foot switch.
♦ The screen contents are saved to the USB stick as a screen shot.
♦ The screen shot icon appears on the monitor.
♦ The file name is displayed on the monitor during the save operation.
♦ No other actions are possible during the save operation (approx. 5 sec.).
The file name has the following format:
• IMGxxx.bmp
• xxx = sequential counter 000 to 999
If the USB memory stick is then connected to a PC, the file names can be changed as usual, for example, to assign
them to a customer.
Accessing the USB stick via a network
If the EASY view 3D head is connected to a local network via the network port (25) and the network extension cable
(already inserted in the cable channel), the images (screen shots) of the USB stick in the head can be accessed over
the network. Details can be found in the instructions for use in the internet.
Working with 3D
When working in 3D mode, the 3D goggles must be worn.
Split screen
The System Easy view 3D contains the split screen function from version 2.001. This enables an additional image to
be inserted on the monitor.
With the split screen function, inserted images are only displayed in 2D.

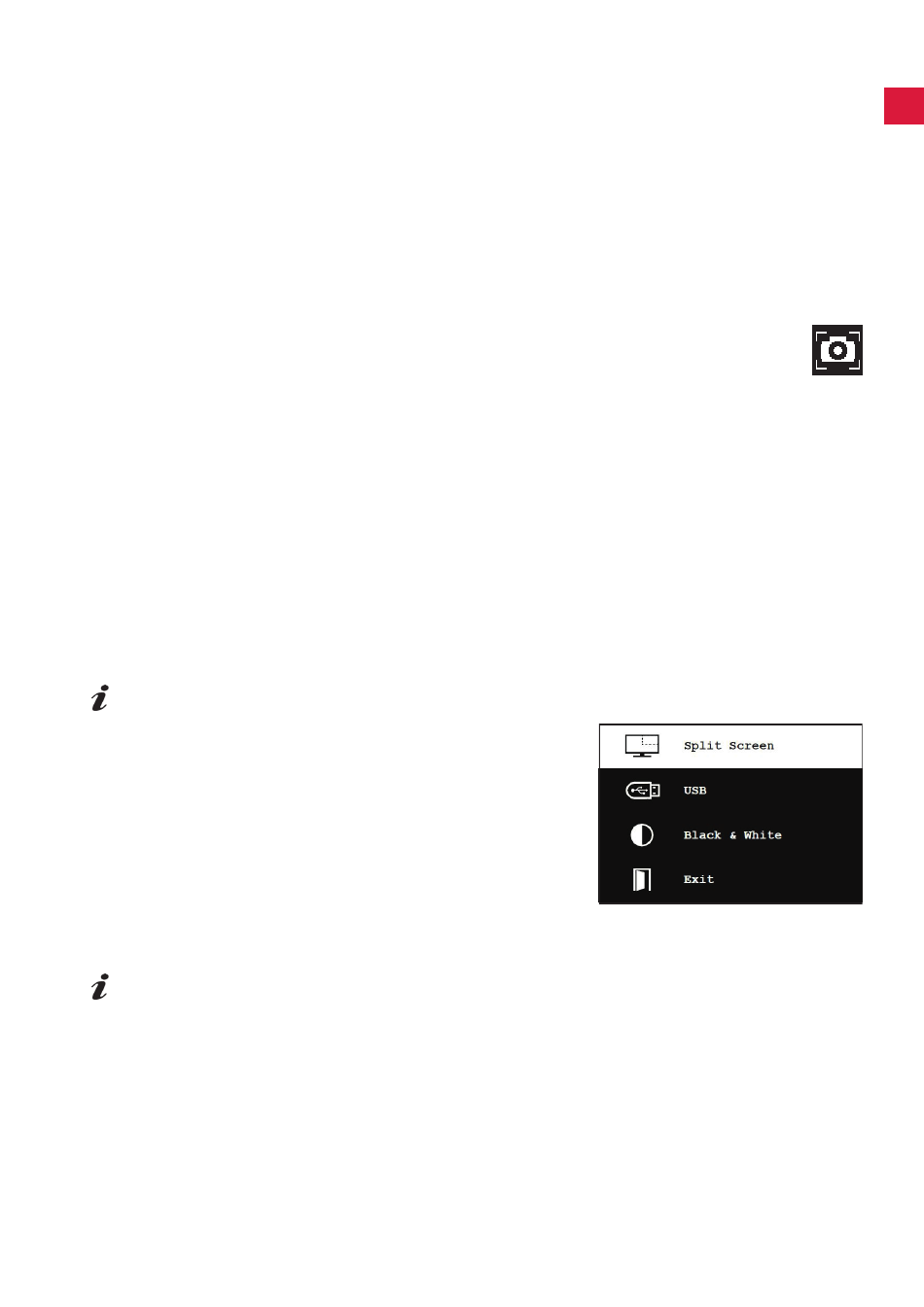

♦ Open split screen main menu:
⇒ press the right mouse button until the split screen main menu appears.
Operation and navigation in the split screen menus:
⇒ Roll mouse wheel
♦ Select menu item / sub-menu
⇒ Click left mouse button
♦ Select menu item / sub-menu
⇒ Click right mouse button
♦ returns to the previous menu level
⇒ Click and hold the right mouse button
♦ Close the split screen menu.
⇒ Exit
♦ Close the split screen menu.
As long as a split screen menu is open, the system settings (2D / 3D, 15x / 20x zoom, object mode) cannot be
changed.
For details to the split screen function, please refer to the user instruction in the internet.
Monitor
Details on the monitor can be found in the instructions for use in the internet. Renfert recommends not changing the
factory settings of the monitor as the basic settings for the EASY view 3D.
