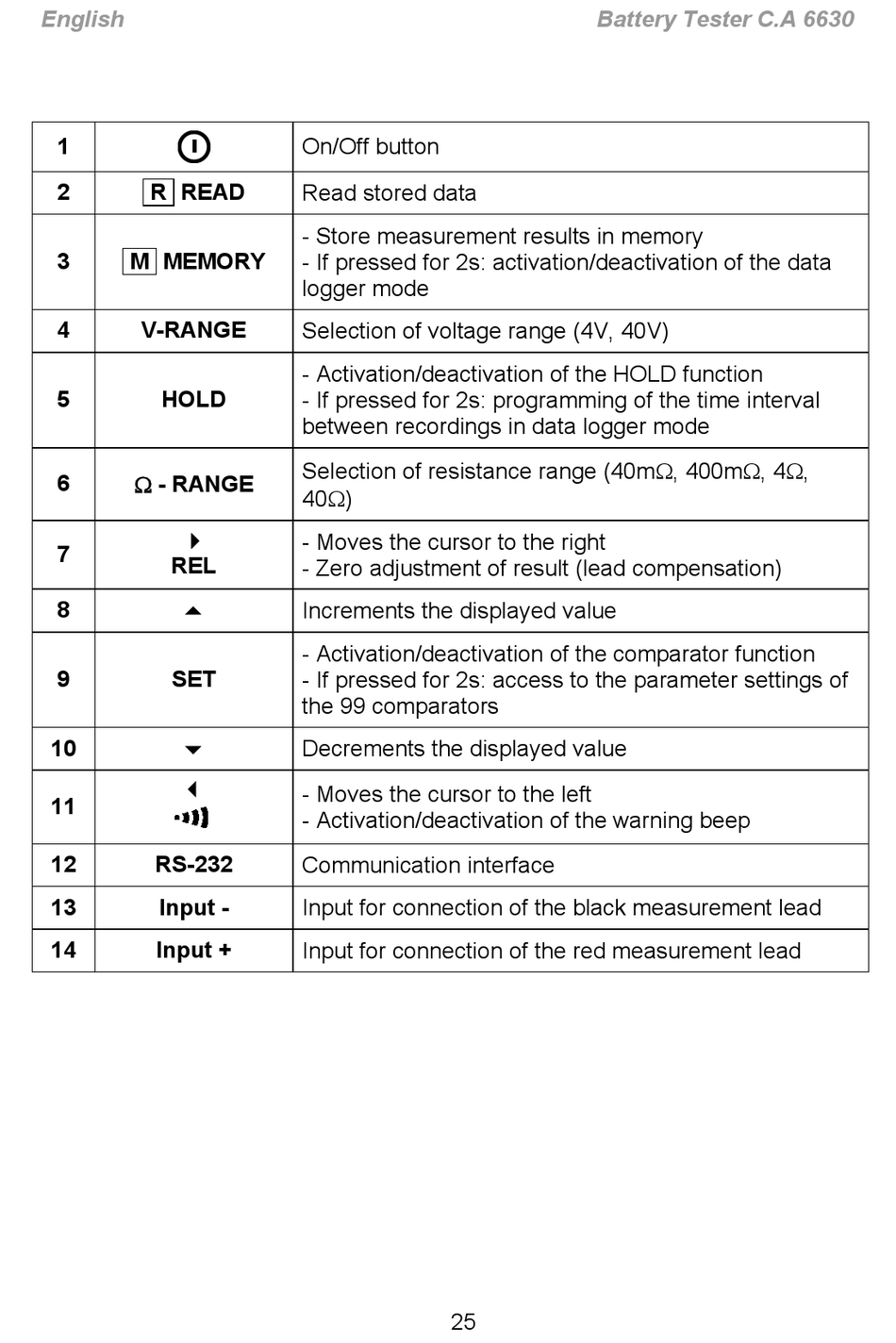

English
1
2 R READ
3 M MEMORY
4 V-RANGE
5 HOLD
6
Ω - RANGE

7
REL
8

9 SET
10


11
12 RS-232
13 Input -
14 Input +
On/Off button
Read stored data
- Store measurement results in memory
- If pressed for 2s: activation/deactivation of the data
logger mode
Selection of voltage range (4V, 40V)
- Activation/deactivation of the HOLD function
- If pressed for 2s: programming of the time interval
between recordings in data logger mode
Selection of resistance range (40mΩ, 400mΩ, 4Ω,
40Ω)
- Moves the cursor to the right
- Zero adjustment of result (lead compensation)
Increments the displayed value
- Activation/deactivation of the comparator function
- If pressed for 2s: access to the parameter settings of
the 99 comparators
Decrements the displayed value
- Moves the cursor to the left
- Activation/deactivation of the warning beep
Communication interface
Input for connection of the black measurement lead
Input for connection of the red measurement lead
25
Battery Tester C.A 6630
