Tietzsch SPB 1000L-UB Bedienungsanleitung Seite 16

5
6

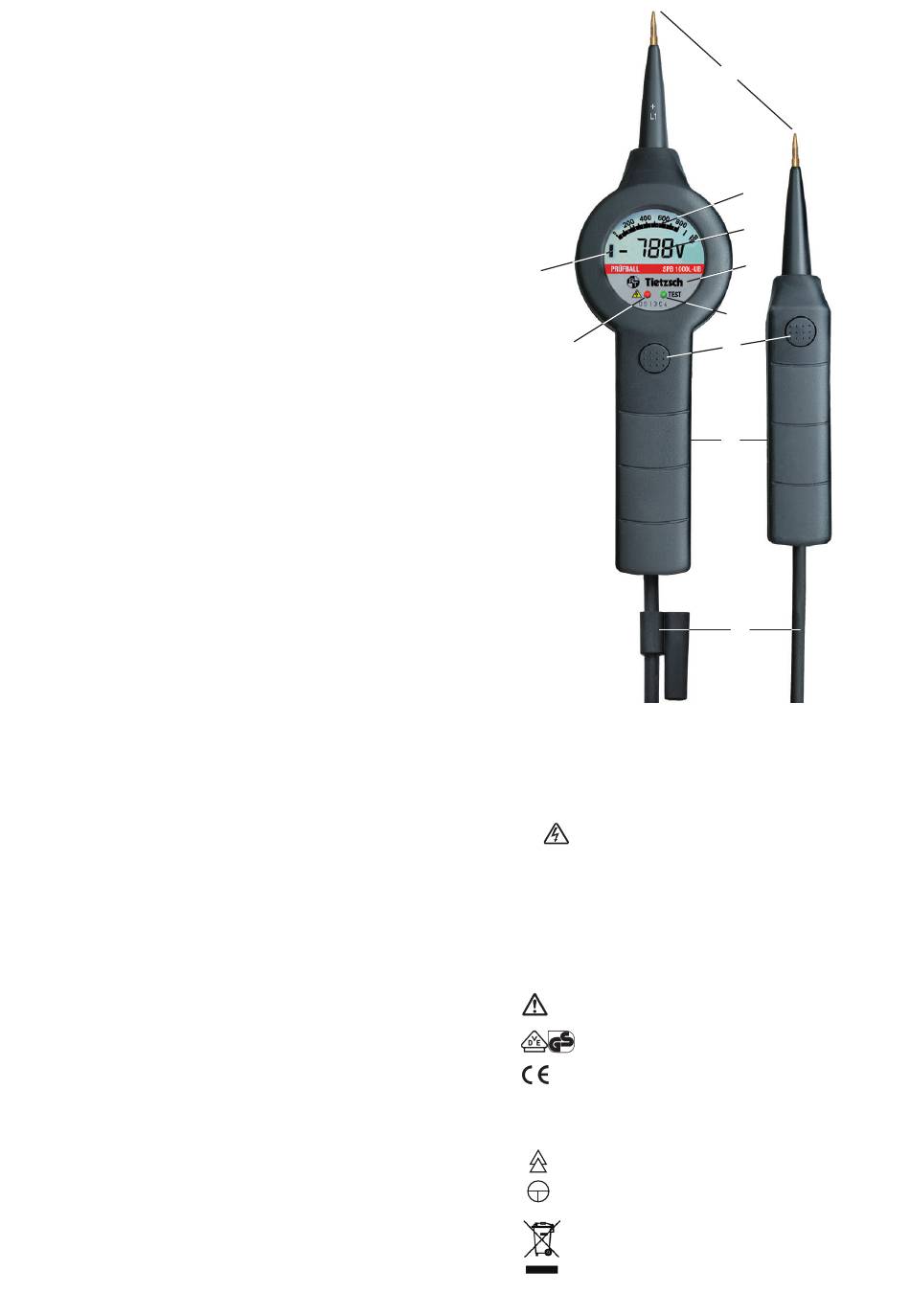

1 Test electrodes
2 Bargraph display for voltage indication
3 LCD indication of voltage, resistance, polarity
and phase sequence
4 Type plate
5 Symbol for additional load and low battery
6 -LED for hazardous voltages
≥ 50 V AC / 120 V DC
7 Green LED for self test
8 Push-button for load
9 Handgear
10 Connecting line with protection cap
Symbols on the instrument
Attention! Observe user instructions!
Mark of approval from VDE test authority
Indicates EC conformity
TR
On-time at highest nominal voltage
on
RT
Recovery time after tests with highest nominal voltage
off
Device for live working
Push-button
This device has to be disposed of according to the
applicable regulations and laws
(for Europe: WEEE 2012/19/EU). Please contact
service@tietzsch.de in regard to the return of old devices.
16
1
2
3
4
7
8
9
10
