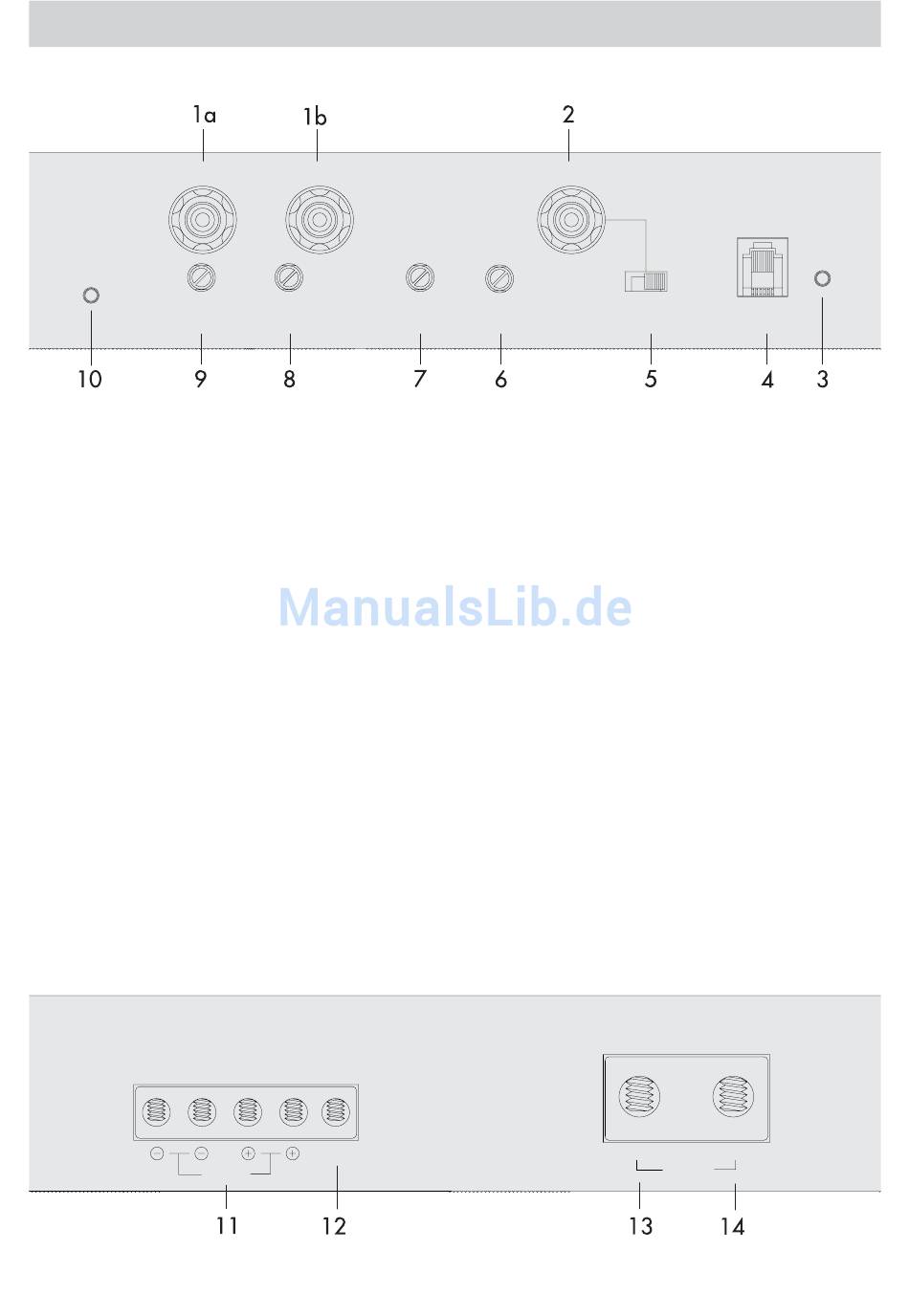

2.2 REAR PANEL CONNECTIONS

11 SPEAKER OUTPUT TERMINALS
Loudspeaker output terminal to connect the subwoofer(s)
12 "REMOTE" INPUT TERMINAL
Terminal to connect the amplifier to the automatic (remote) turn-on / turn-off lead of the head
unit
13 "GND" POWER INPUT TERMINAL
50mm direct power input terminal to connect the amplifier to the negative or ground wire
2
of the vehicle
14 "12V" POWER INPUT TERMINAL
50mm direct power input terminal to connect the amplifier to the positive +12V power wire
2
connected to the car battery
REAR
PANEL
2CH
0.3V 10Hz 60Hz
SUBSONIC
REM
MONO
30Hz 300Hz
180
0
LPF
PHASE
INPUT OUTPUT
REMOTE
SLAVE MASTER
GND +12V
POWER
PROTECT
