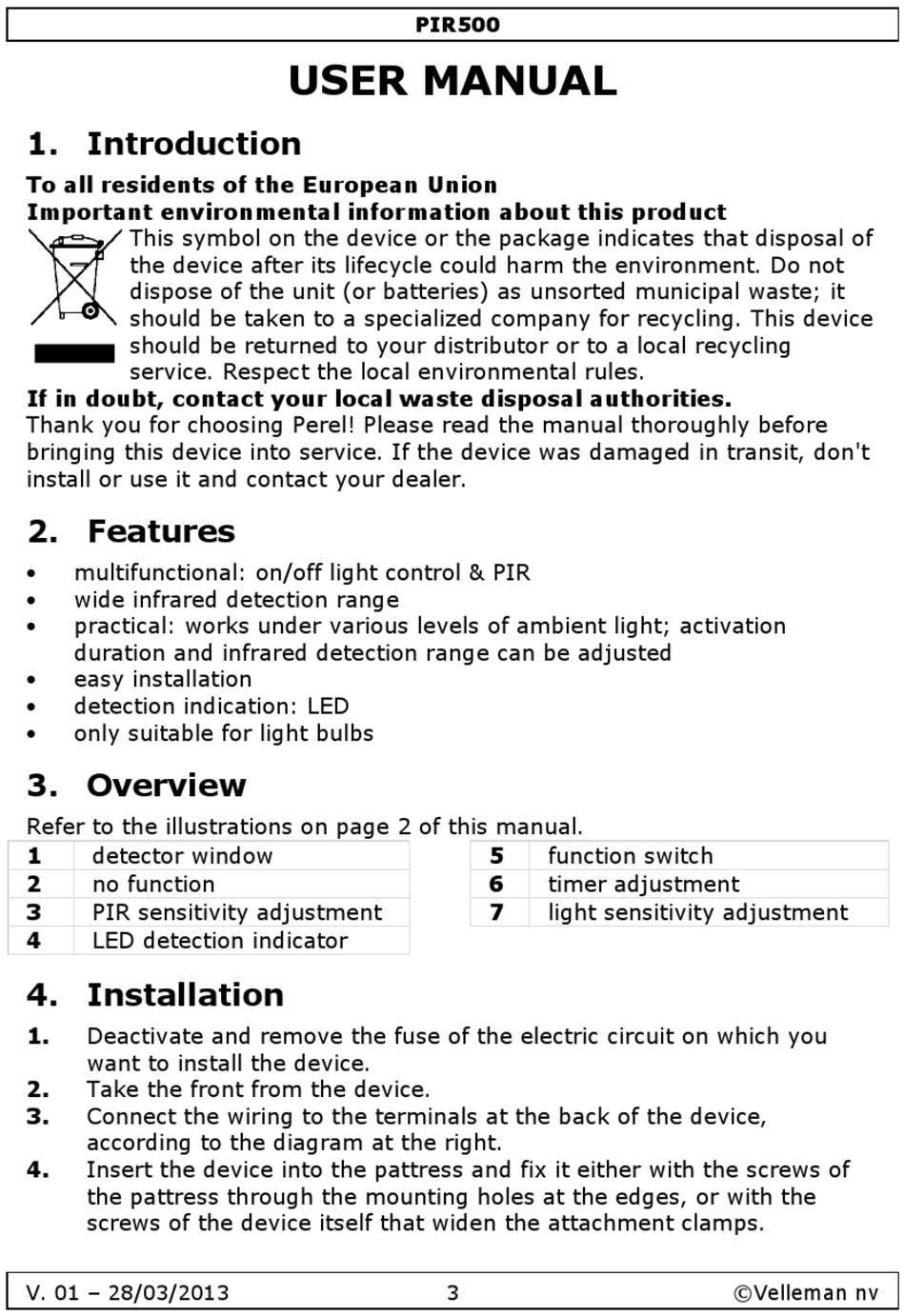

User Manual - Velleman PIR500 Bedienungsanleitung

1. Introduction
To all residents of the European Union
Important environmental information about this product
This symbol on the device or the package indicates that disposal of
the device after its lifecycle could harm the environment. Do not
dispose of the unit (or batteries) as unsorted municipal waste; it
should be taken to a specialized company for recycling. This device
should be returned to your distributor or to a local recycling
service. Respect the local environmental rules.
If in doubt, contact your local waste disposal authorities.
Thank you for choosing Perel! Please read the manual thoroughly before
bringing this device into service. If the device was damaged in transit, don't
install or use it and contact your dealer.
2. Features
 multifunctional: on/off light control & PIR
 wide infrared detection range
 practical: works under various levels of ambient light; activation
duration and infrared detection range can be adjusted
 easy installation
 detection indication: LED
 only suitable for light bulbs
3. Overview
Refer to the illustrations on page 2 of this manual.
1 detector window
2 no function
3 PIR sensitivity adjustment
4 LED detection indicator
4. Installation
1. Deactivate and remove the fuse of the electric circuit on which you
want to install the device.
2. Take the front from the device.
3. Connect the wiring to the terminals at the back of the device,
according to the diagram at the right.
4. Insert the device into the pattress and fix it either with the screws of
the pattress through the mounting holes at the edges, or with the
screws of the device itself that widen the attachment clamps.
V. 01 – 28/03/2013
PIR500

USER MANUAL

3
5 function switch
6 timer adjustment
7 light sensitivity adjustment
©Velleman nv
