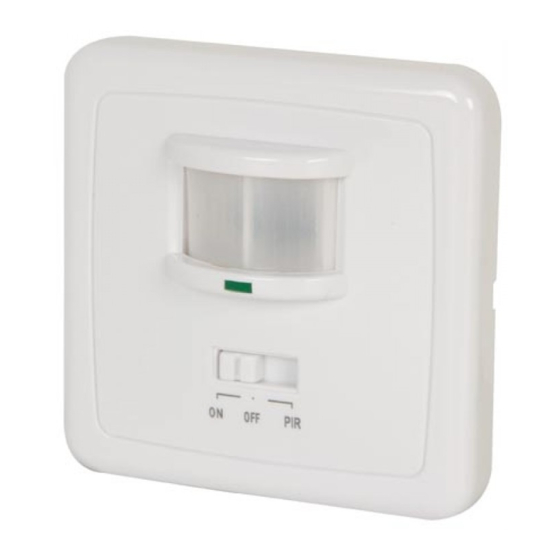

1. Introduction
The PIR500 is an infrared sensor that uses SMT technology. Installation of the device is very easy and it is suited for
a wide range of applications.
2. Specifications
Power Source
Power Frequency
Detection Distance
Detection Range
Ambient Light
Time Delay
Working Temperature
Working Humidity
Installation Height
Power Consumption
Motion Speed Detection Range
Rated Load
3. Operation

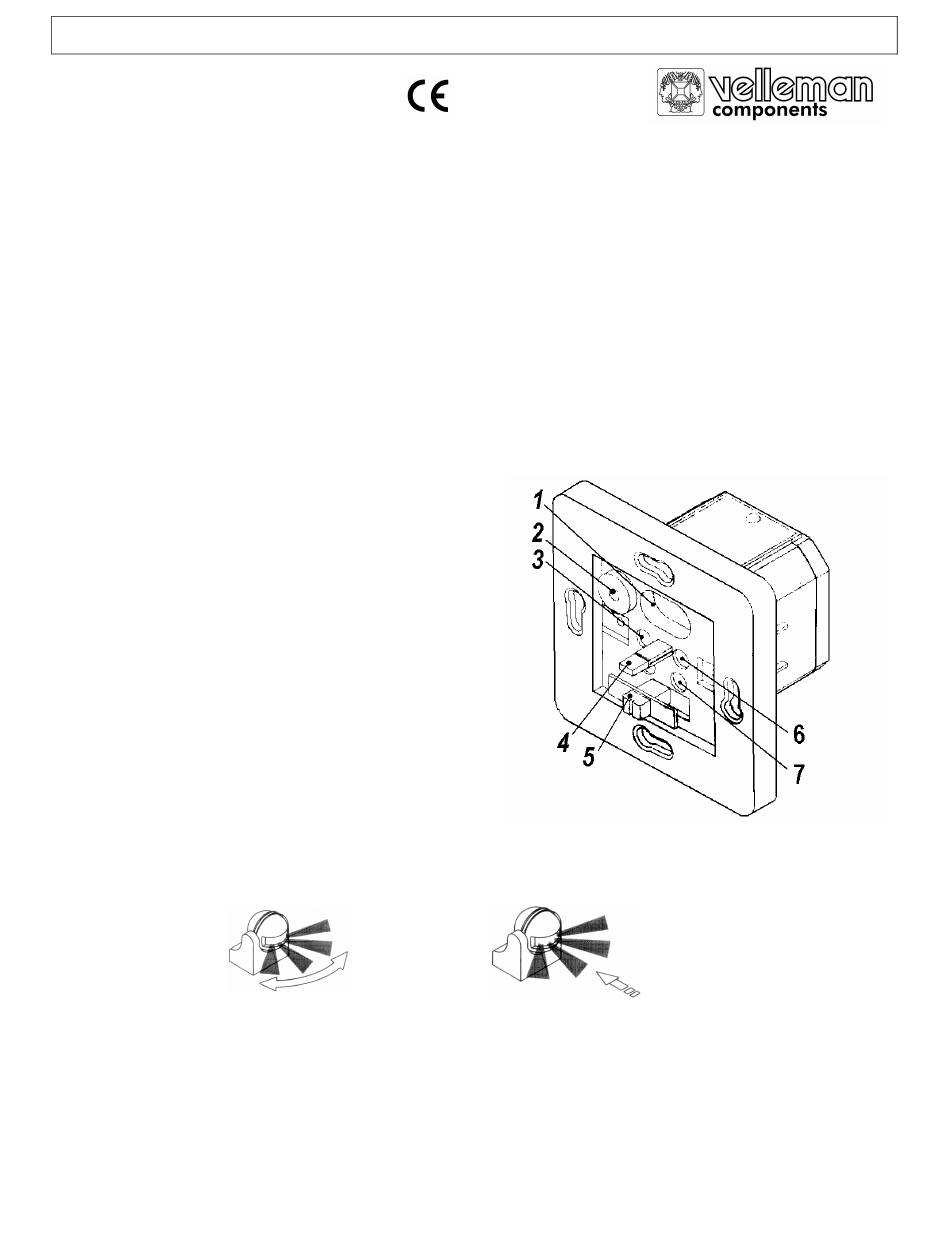

Parts:
1. Detector window
2. Microphone
3. PIR sensitivity adjustment
4. LED detection indicator
5. Function switch
6. Timer adjustment
7. Light sensitivity adjustment
• The PIR500 has 3 operation modes: on / off / movement detection (PIR).
• The detector is much more sensitive to objects moving across the detection area (fig. 2 below) than it is to objects
coming straight at it (fig. 3 below). This is a very important consideration when selecting the mounting location.
Fig. 2
• The device can operate in both day and night situations, thanks to the adjustability of the PIR sensitivity and the
light sensitivity. The duration of the output signal can also be adjusted.
• The device can be installed in round as well as square pattresses.
• The detection indicator flashes once every time the device detects movement.
• Do not use this device to control a fluorescent lamp.
• Do not install the device where it can detect constantly moving objects, or near temperature regulating devices
such as air-conditioning and heating devices.
• This device should be installed, maintained and repaired by a qualified person.
PIR500
PIR500 - PIR Motion Detector
220-240Vac
50-60Hz
12m max. (< 22°C) (adjustable)
>140°
3lux ~ 1000lux (adjustable)
5s ~ 420s (adjustable)
-20°C to +40°C
< 93% RH
0.4m to 1.8m
0.45W (standby 0.1W)
0.6 ~ 1.5m/s
500W (220-240Vac)
Fig. 1
1
Fig. 3
