9.1 Replacement of fuse
Only an electric specialist or/and the manufacturer is permitted to execute that (in case of
replacement of fuse there will have to be a soldering).
See for those illustrations on page 30 / 3.
Replacing the fuse proceed as following:
. Unplug mains plug
2. Unscrew charging adapter from the wall
3. Remove back panel (7) by releasing the Torx screws *TX0* (8)
4. Pull out the electronic board ()
5. Check and replace fuse T 35 mA/230 V (2) and/or T 2 A/2 V/24 V (3)
6. Close in reverse order
Note:
a) Pay attention to the diodes () (2) push-ing in the board. Bent? g Adjust!
b) Put in back panel with the fixing hooks (0) into the openings (9) and then push back and
screw up the back panel.

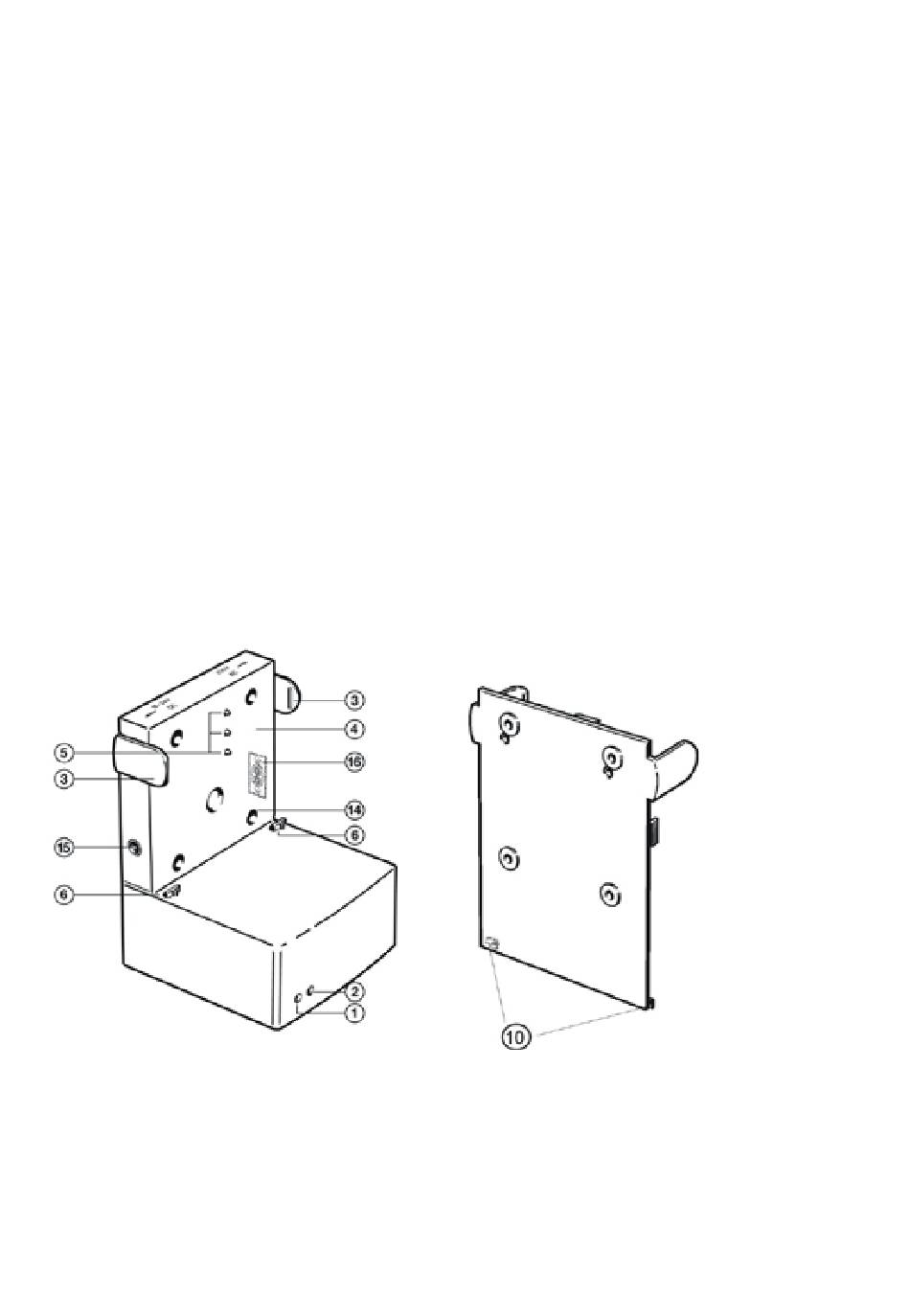

Illustrations
30
