How to use:

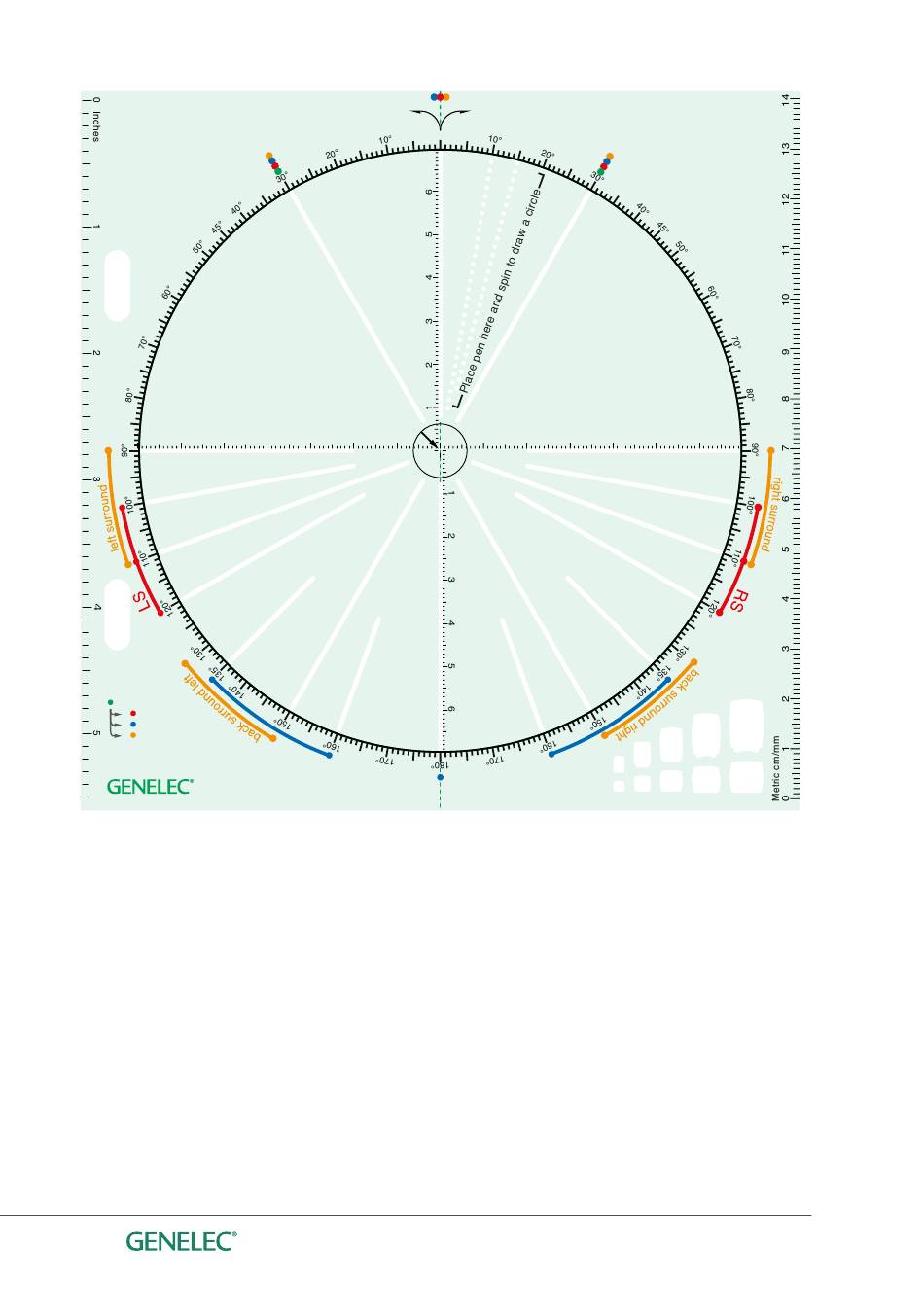

• Place G•stencil on the plot of your room
• Pin down exact center of G-stencil to
exact center of your listening spot
• Point 0° towards front wall on the
symmetry axis line
• Use grooves to draw listening angles
of desired monitor system
• Place pen in hole of
desired distance, spin
to draw a circle
6 5
Color coding:
Stereo
+ 5.1 Surround
+ 6.1 Surround
+ 7.1 Surround

Testsignale

Verschiedene nützliche Testsignale können auf der Genelec Website
heruntergeladen werden.
C
left
L
Pin down to listening position
4 3 2 1
Monitor Setup Guide
right
0°
R
1 2 3 4
Order code MAI-0132
G•Stencil
ITU-R BS 775-1
