Step 6:

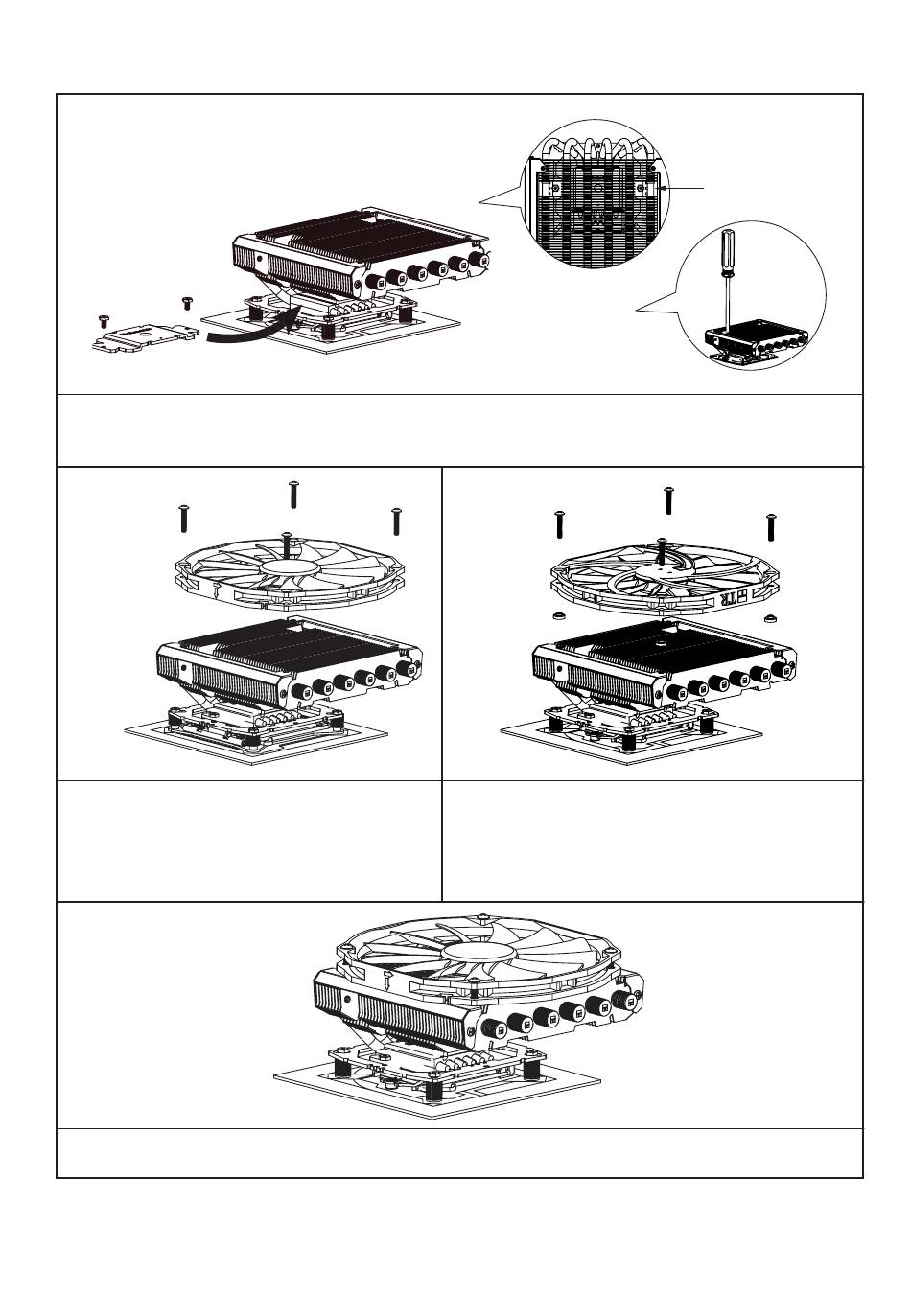

Step 6 : Mounting Plate Installation.
Place the Heatsink Body on top of the CPU. Make the Mounting Plate go through the Heatsink Body.
Then use the two M3L6 screws to secure the Mounting Plate. (Screwdrive goes through holes on fins)
Step 7:
Step 7A : Fan Installation
Place the included TY-14013R fan onto the
heatsink body. And then secure it by screwing
on the four M3L17 screws, through the fan
mounting holes.
Step 8:
Step 8 : Installation Completed
Plug in the fan connector to the CPU PWM Fan socket on the motherboard. Installation complete.
The Ultimate Cooling Solutions!
Step 7B : Fan Installation
Or, if the fan is flipped over for drawing air towards
the top as shown in Step 7B, then place four washers
(for Intel boards) underneath the fan for additional
height before securing the fan onto the heatsink body.
