Monitor 1940/1942
GB-13

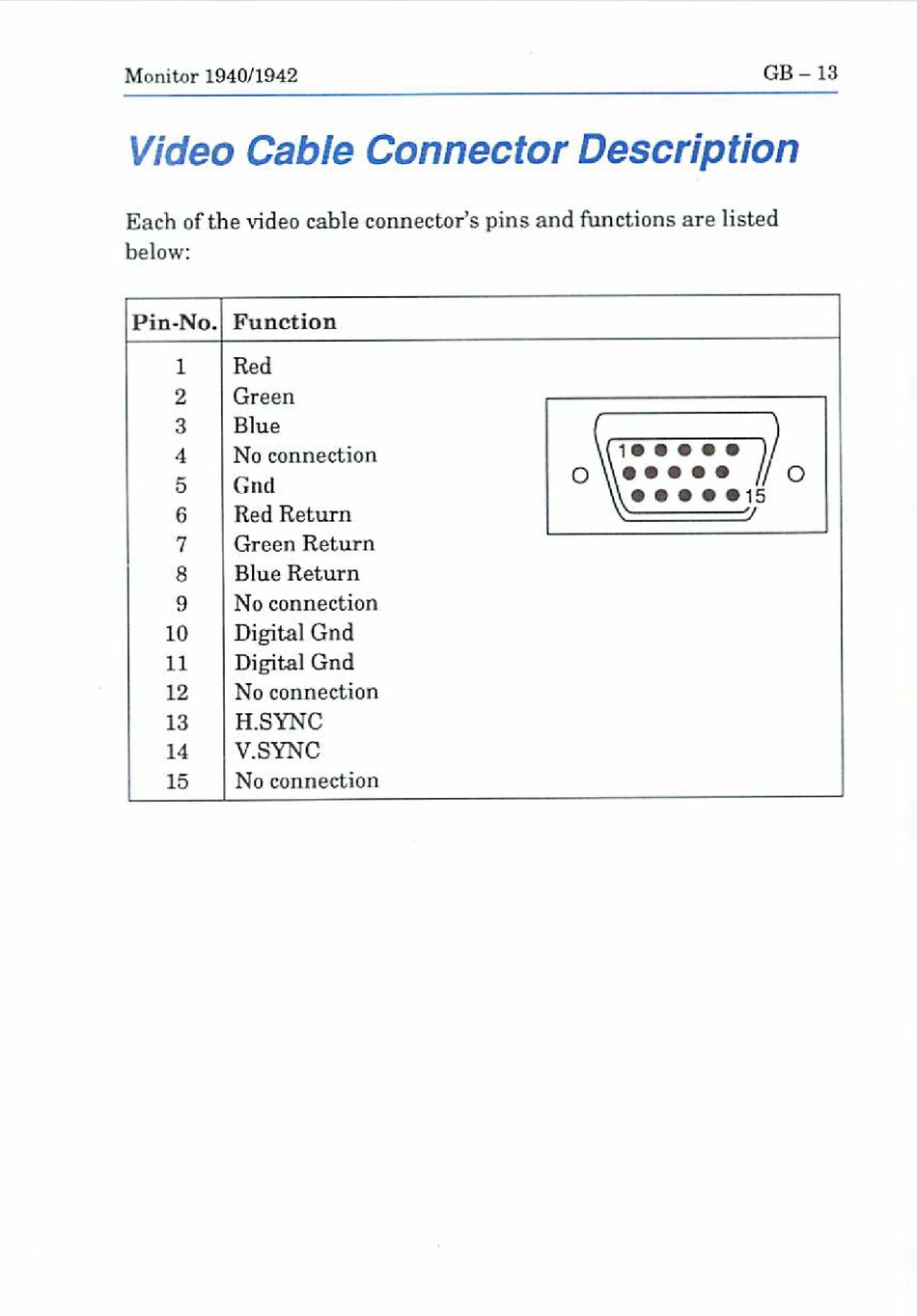

Video Cable Connector Description
Each of the video cable connector's pins and functions are listed
below:
Pin-No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Function
Red
Green
Blue
No connection
Giid
Red Return
Green Return
Blue Return
No connection
Digital Gnd
Digital Gnd
No connection
H.SYNC
V.SYNC
No connection
(, J
o \\« • • • • l/o
\\ • • • • • 15
V V
