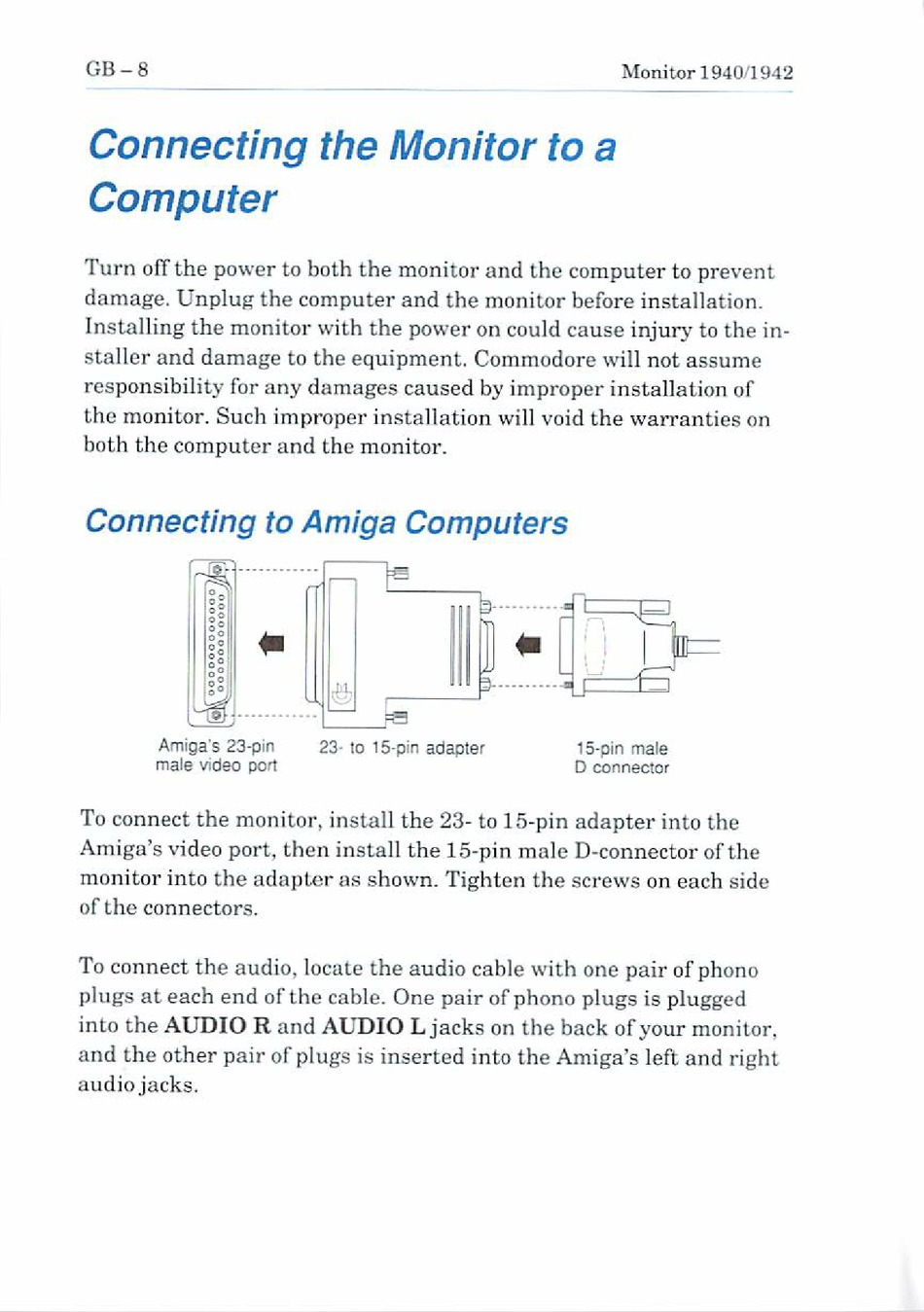

GB-8
Monitor 1940/1942
Connecting the Monitor to a
Computer
Turn off the power to both the monitor and the computer to prevent
damage. Unplug the computer and the monitor before installation.
Installing the monitor with the power on could cause injury to the in
staller and damage to the equipment. Commodore will not assume
responsibility for any damages caused by improper installation of
the monitor. Such improper installation will void the warranties on
both the computer and the monitor.
Connecting to Amiga Computers
Amiga's 23-pin
maJe video port
lo 15-pin adapter
15-pin male
D connector
To connect the monitor, install the 23- to 15-pin adapter into the
Amiga's video port, then install the 15-pin male D-connector of the
monitor into the adapter as shown. Tighten the screws on each aide
of the connectors.
To connect the audio, locate the audio cable with one pair of phono
plugs at each end of the cable. One pair of phono plugs is plugged
into the AUDIO R and AUDIO L jacks on the back of your monitor,
and the other pair of plugs is inserted into the Amiga's left and right
audio jacks.
