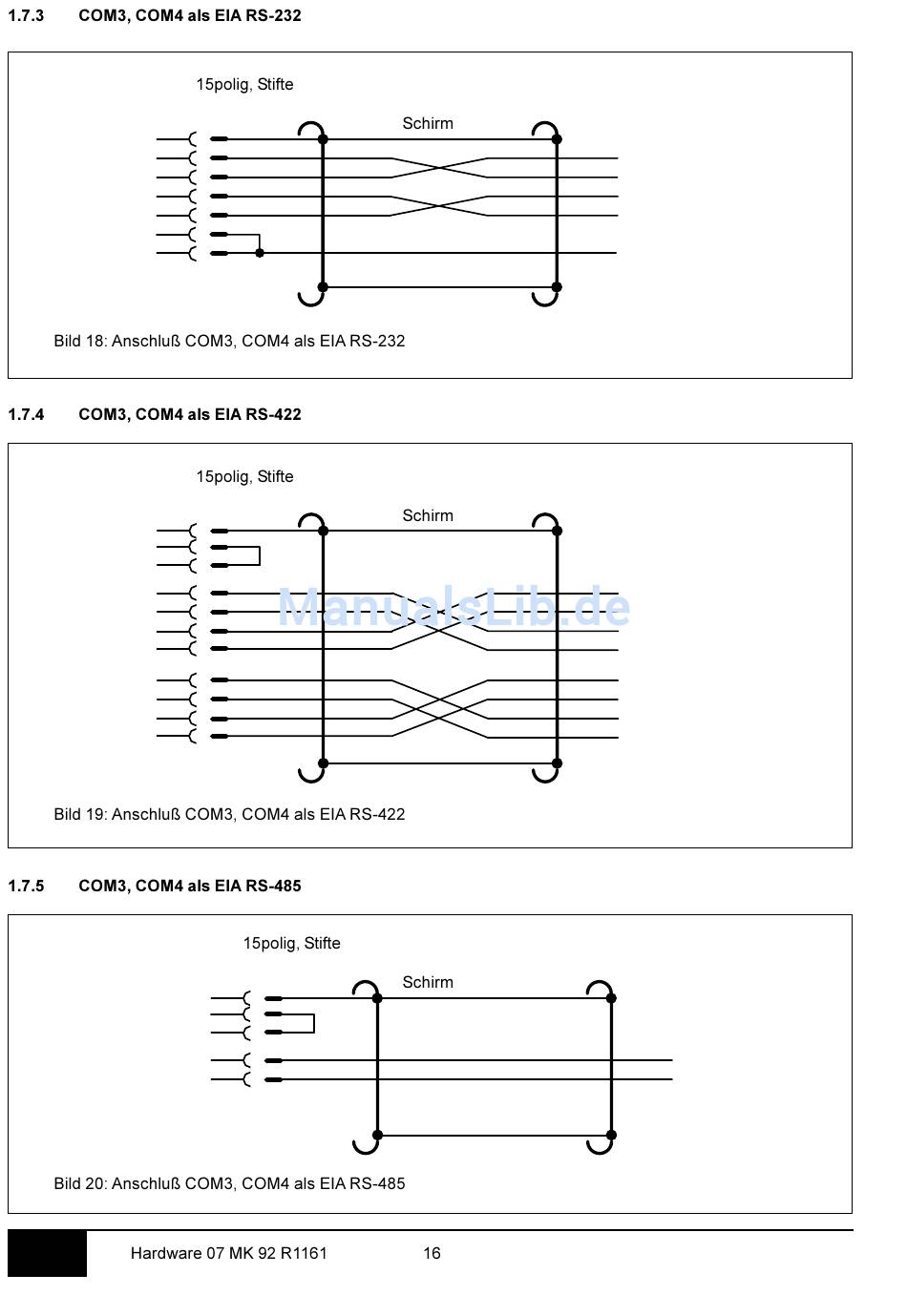

07 MK 92
PGND 1
TxD 2
RxD 3
RTS 4
CTS 5
PROG 6
SGND 7
07 MK 92
PGND 1
PROG 6
SGND 7
TxD–P 8
TxD–N 9
RxD–P 10
RxD–N
11
RTS–P 12
RTS–N 13
CTS–P 14
CTS–N 15
07 MK 92
PGND 1
PROG 6
SGND 7
RxD–P, TxD–P 10
RxD–N, TxD–N 11
8 .2
TxD
RxD
RTS
CTS
SGND
TxD–P
TxD–N
RxD–P
RxD–N
RTS–P
RTS–N
CTS–P
CTS–N
Bus–P
Bus–N
