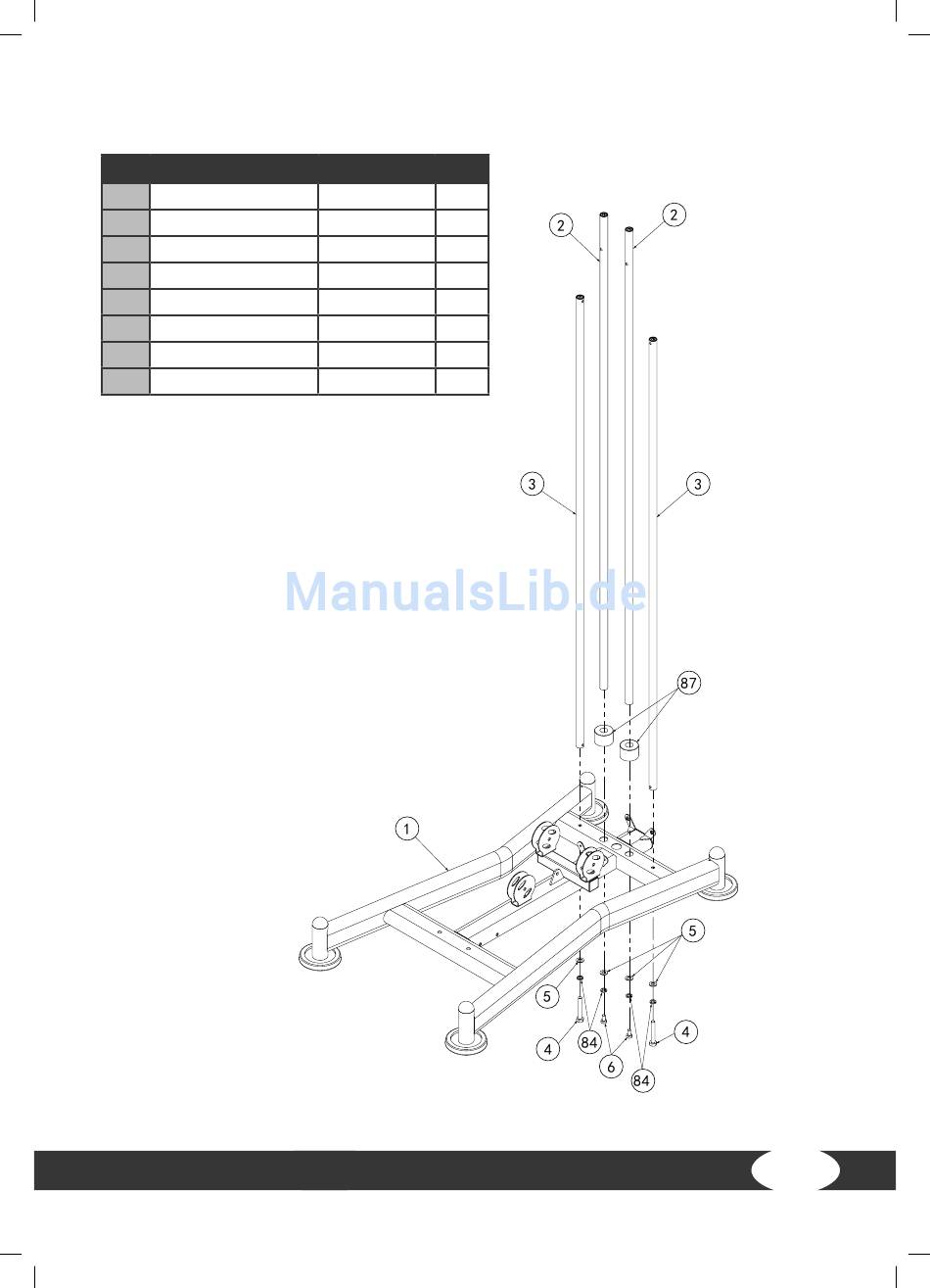

Schritt 1:
Explosionszeichnung
Assembly step 1 explosion drawing
Nr.
Bezeichnung (ENG)
1
ground frame
2
guide bar
3
back support tube
4
outer hexagon bolt
5
shim
6
outer hexagon bolt
84
spring shim
87
cushion
Bemerkung
Anz.
1
Φ25*1853
2
Φ259*1757.5
2
M10*65
2
Φ10
4
M10*20
2
Φ10
4
Φ60*Φ26*42
2
13
