5. LOCATION AND ASSEMBLY

The correct installation of this speaker requires the execution of a rectangular hole at the
location where the speaker is going to be installed as well as the corresponding cables for each unit.
In order to install the speakers correctly:
1. Remove the protective grating from the speaker using the hook provided in the packaging.
2. It is necessary to execute a rectangular hole in the wall or false ceiling. The dimensions of
this hole have to be 193x302mm.
A template for cutting/painting is included with each unit to simplify this process. Once
divided into two, the outer part can be used as pattern to mark the hole on the wall or ceiling, while
the inner part can be used to protect the speaker cone in case of painting the plastic part in another
colour.
3. Use the clamps to connect the unit to the wiring of the system where the speaker is being
installed.
4. Place the speaker in the newly cut hole. Hold the unit with one hand and introduce it into
its location. The six rotary mounting tabs must be tangential to the cut-out.
5. Press each of the 6 screws that are accessible from the front side of the speaker. The
speaker is now fixed in its final position.
6. Reattach the protective grille.

6. PAINTING

The IW6 is designed to be painted, meaning it can be installed anywhere, regardless of
the aesthetic criteria of the place where it will be used.
The following instructions explain the details of painting the unit:
1. Remove the protective grille from
the speaker using the hook
provided in the packaging.

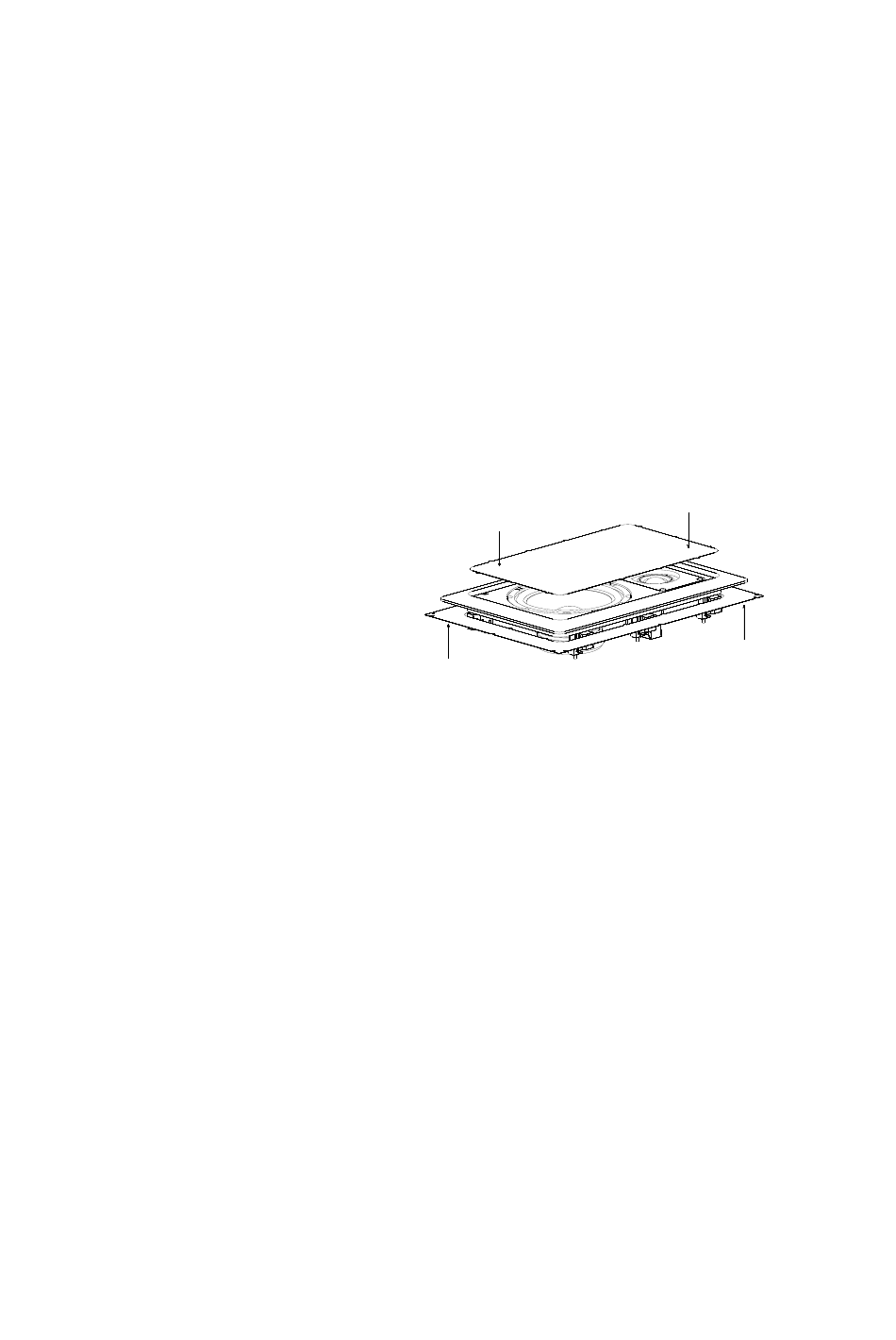

2. Once the cutting/painting pattern
is divided into two, use the inner
part to protect the speakers cone
placing over the cones and
making it fit as well as possible.
The tips that remain after splitting the pattern make it easy to fit this part. The outer part
can be placed on the back of the speaker fitting it to its shape, to protect the speaker's
back from splashes if a spray is used to paint the unit.
3. Paint the protective grating and the speaker separately. Make sure that the small holes in
the grating are not blocked by paint. Use an appropriate air-dry paint.
4. When the paint is dry, remove the protectors. The unit is ready to be installed.
