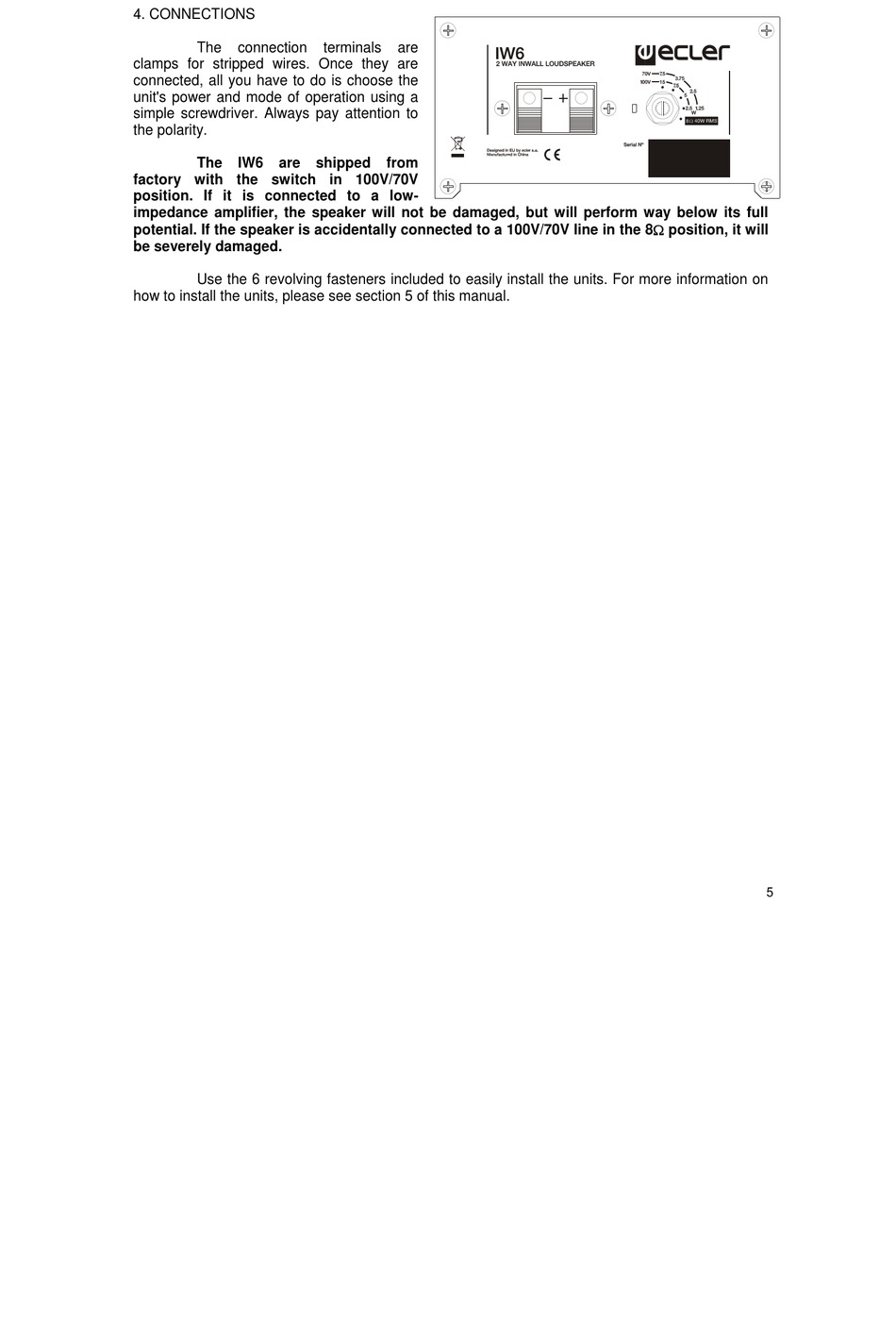

4. CONNECTIONS

The connection
clamps for stripped wires. Once they are
connected, all you have to do is choose the
unit's power and mode of operation using a
simple screwdriver. Always pay attention to
the polarity.
The IW6 are
factory with the switch in 100V/70V
position. If it is connected to a low-
impedance amplifier, the speaker will not be damaged, but will perform way below its full
potential. If the speaker is accidentally connected to a 100V/70V line in the 8 position, it will
be severely damaged.
Use the 6 revolving fasteners included to easily install the units. For more information on
how to install the units, please see section 5 of this manual.
terminals are
shipped from
5
