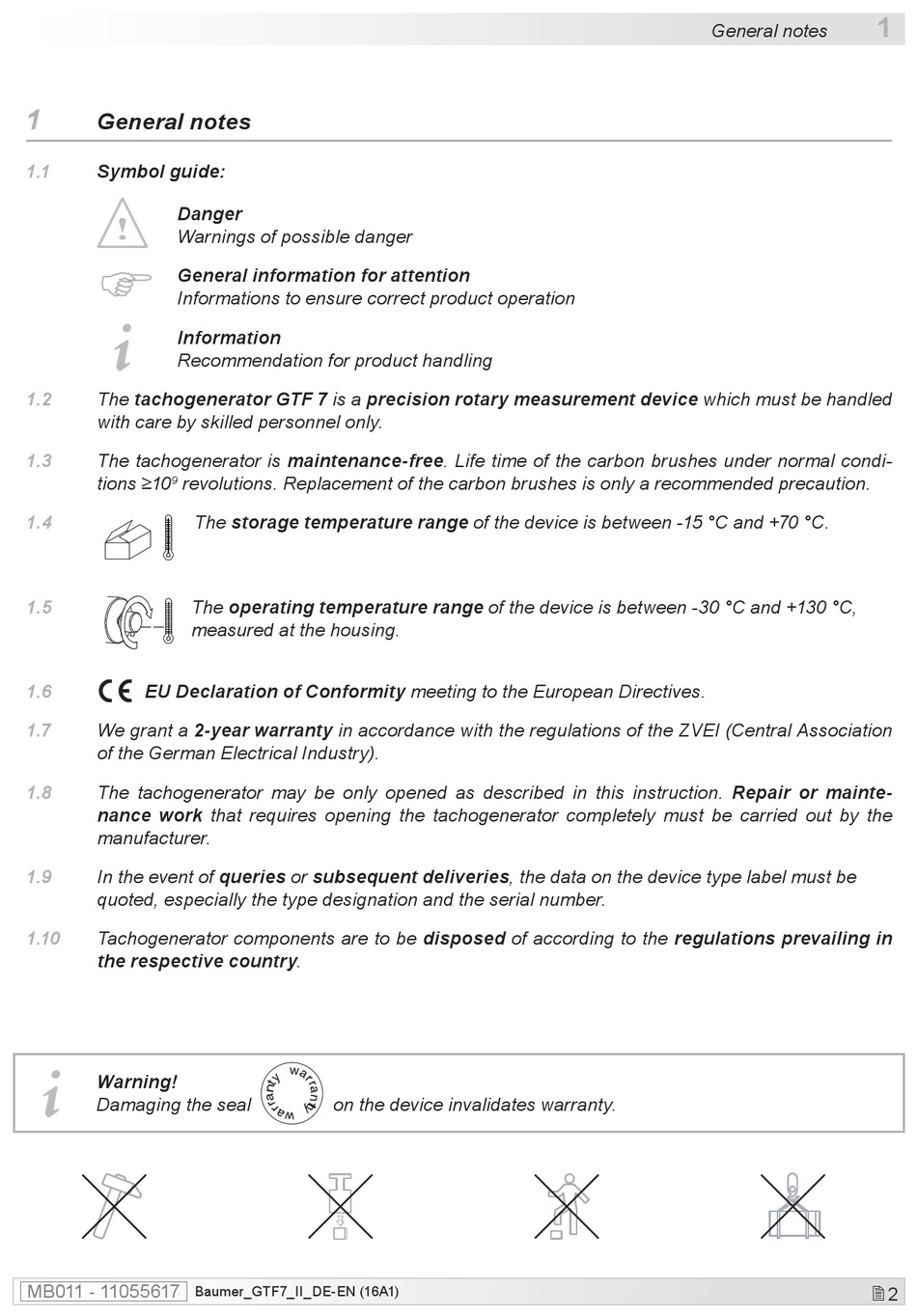

General Notes - Baumer GTF 7 Montage- Und Betriebsanleitung

1

General notes

1.1 Symbol guide:
Danger
Warnings of possible danger

General information for attention
Informations to ensure correct product operation
i
Information
Recommendation for product handling
1.2 The tachogenerator GTF 7 is a precision rotary measurement device which must be handled
with care by skilled personnel only.
1.3 The tachogenerator is maintenance-free. Life time of the carbon brushes under normal condi-
tions ≥10 revolutions. Replacement of the carbon brushes is only a recommended precaution.
9
1.4 The storage temperature range of the device is between -15 °C and +70 °C.
1.5 The operating temperature range of the device is between -30 °C and +130 °C,
measured at the housing.
1.6 EU Declaration of Conformity meeting to the European Directives.
1.7 We grant a 2-year warranty in accordance with the regulations of the ZVEI (Central Association
of the German Electrical Industry).
1.8 The tachogenerator may be only opened as described in this instruction. Repair or mainte-
nance work that requires opening the tachogenerator completely must be carried out by the
manufacturer.
1.9 In the event of queries or subsequent deliveries, the data on the device type label must be
quoted, especially the type designation and the serial number.
1.10 Tachogenerator components are to be disposed of according to the regulations prevailing in
the respective country.
i
Warning!
Damaging the seal
MB011 - 11055617
Baumer_GTF7_II_DE-EN (16A1)
on the device invalidates warranty.
1
General notes
 2
