Speaker Set; System Set - Spectral CTA1-V2 Bedienungsanleitung

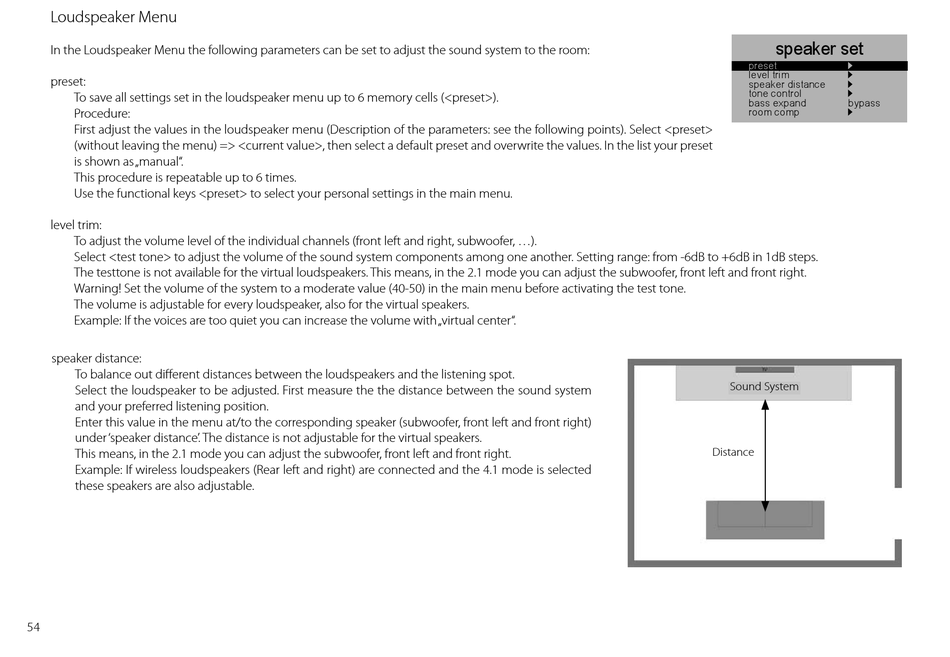

Loudspeaker Menu
In the Loudspeaker Menu the following parameters can be set to adjust the sound system to the room:
preset:
To save all settings set in the loudspeaker menu up to 6 memory cells (<preset>).
Procedure:
First adjust the values in the loudspeaker menu (Description of the parameters: see the following points). Select <preset>
(without leaving the menu) => <current value>, then select a default preset and overwrite the values. In the list your preset
is shown as „manual".
This procedure is repeatable up to 6 times.
Use the functional keys <preset> to select your personal settings in the main menu.
level trim:
To adjust the volume level of the individual channels (front left and right, subwoofer, ...).
Select <test tone> to adjust the volume of the sound system components among one another. Setting range: from -6dB to +6dB in 1dB steps.
The testtone is not available for the virtual loudspeakers. This means, in the 2.1 mode you can adjust the subwoofer, front left and front right.
Warning! Set the volume of the system to a moderate value (40-50) in the main menu before activating the test tone.
The volume is adjustable for every loudspeaker, also for the virtual speakers.
Example: If the voices are too quiet you can increase the volume with „virtual center".
speaker distance:
To balance out different distances between the loudspeakers and the listening spot.
Select the loudspeaker to be adjusted. First measure the the distance between the sound system
and your preferred listening position.
Enter this value in the menu at/to the corresponding speaker (subwoofer, front left and front right)
under 'speaker distance' . The distance is not adjustable for the virtual speakers.
This means, in the 2.1 mode you can adjust the subwoofer, front left and front right.
Example: If wireless loudspeakers (Rear left and right) are connected and the 4.1 mode is selected
these speakers are also adjustable.
54
english
deutsch
setup
speaker setup ►
system setup ►
dvd sat tv tuner
SEEK >
40
p6
01
0
Analog stereo
m st
< > modus
preset /
75

speaker set

preset ►
level trim ►
speaker distance ►
tone control ►
bass expand bypass
room comp ►

system set

output config ►
sub lineout disabled
input config ►
ir learn ►
lip sync 0 ms
dynamic full
Sound System
Distance
curr
defa
exit

