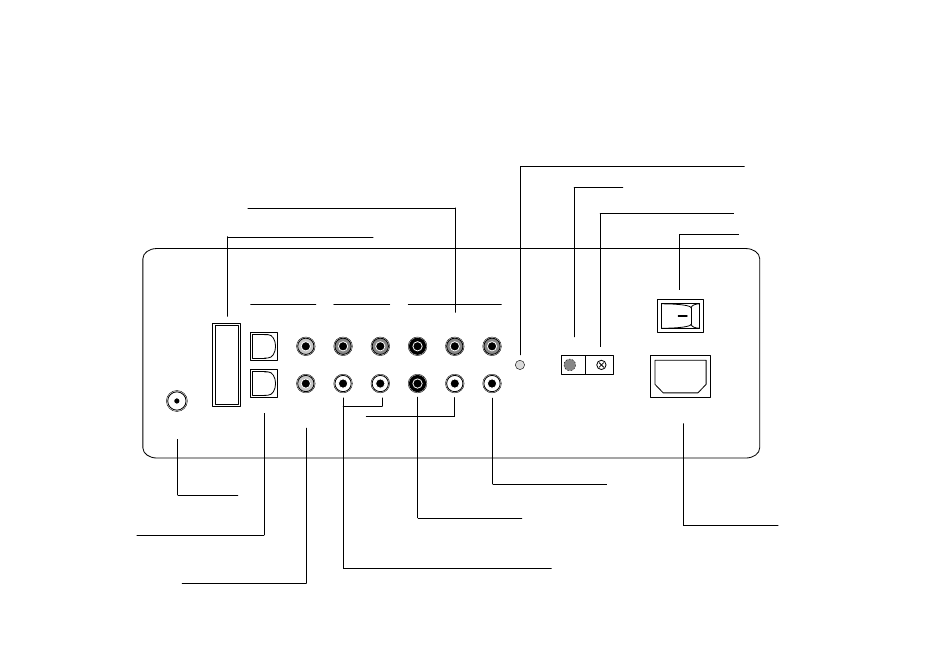

Rear view of the BRA1-V2 / CTA1-V2 system
FM RADIO
ANTENNA
FM aerial
connection
Digital inputs (optical) for
SAT / BluRay / TV / ...
Digital inputs (coaxial) for
SAT / BluRay / TV / ...
42
Pre Out 2.1 / 5.1 Mode preamplifier output
Port only for software updates
DIGITAL INPUTS ANALOG INPUTS
LINE 2 /
OPT 1 COAX 1 LINE 1 PHONO [MONO]
OPT 2 COAX 2
2.1 MODE = FRONT L+R
5.1 MODE = SURROUND L+R
Analog inputs for VCR / record player ...
Operation indicator (red = standby, green = on)
IR receiver
ANALOG OUTPUTS
SUB ZONE 2 /
PRE LINE
RIGHT IR
OPERATION
LEFT
Zone 2 / Line - output
Subwoofer - output
Fixing clip for IR transmitters
Power switch
ON
100-240V~
50-60Hz max.200W
Power cable socket
