Spectral CTA1-V2 Bedienungsanleitung Seite 44

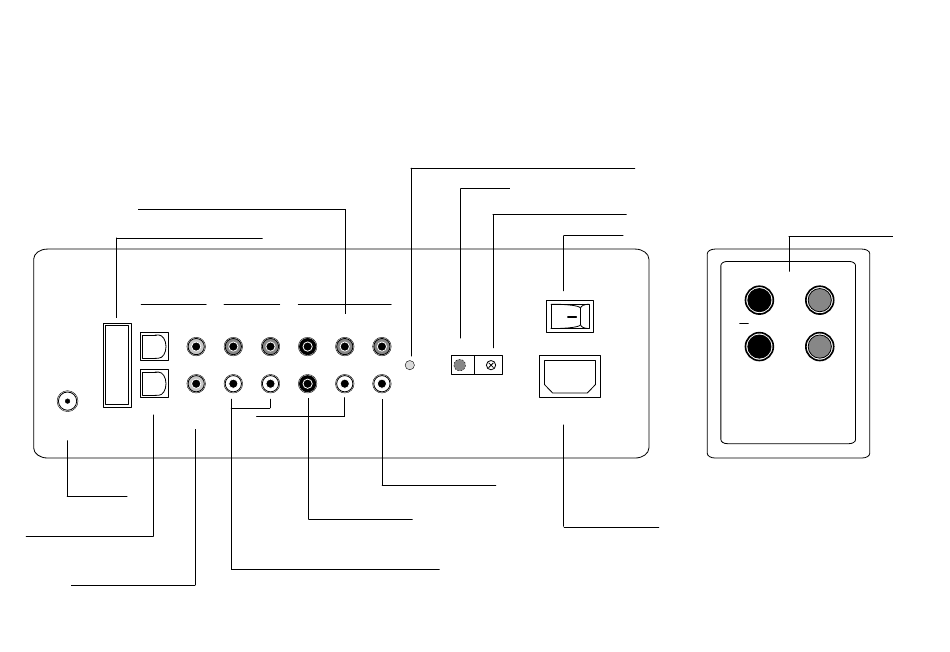

Rückansicht des VRA1 - Systems
Pre Out 2.1 / 5.1 Mode preamplifier output
Port only for software updates
DIGITAL INPUTS
OPT 1 COAX 1
OPT 2 COAX 2
FM RADIO
ANTENNA
FM aerial
connection
Digital inputs (optical) for
SAT / BluRay / TV / ...
Digital inputs (coaxial) for
SAT / BluRay / TV / ...
44
ANALOG INPUTS ANALOG OUTPUTS
LINE 2 / SUB ZONE 2 /
LINE 1 PHONO [MONO] PRE LINE
RIGHT
LEFT
2.1 MODE = FRONT L+R
5.1 MODE = SURROUND L+R
Zone 2 / Line - output
Subwoofer - output
Analog inputs for VCR / record player ...
Operation indicator (red = standby, green = on)
IR receiver
Fixing clip for IR transmitters
Power switch
ON
IR
OPERATION
100-240V~
50-60Hz max.200W
Power cable socket
Ports for passive
loudspeaker module
HF
+
LF
