Connecting the loudspeakers

Sound system CTA1 / BRA1:
The speaker system is internal connected. Only the source devices like DVD must be
connected with the system.
CTA2 / VRA1 Sound System:

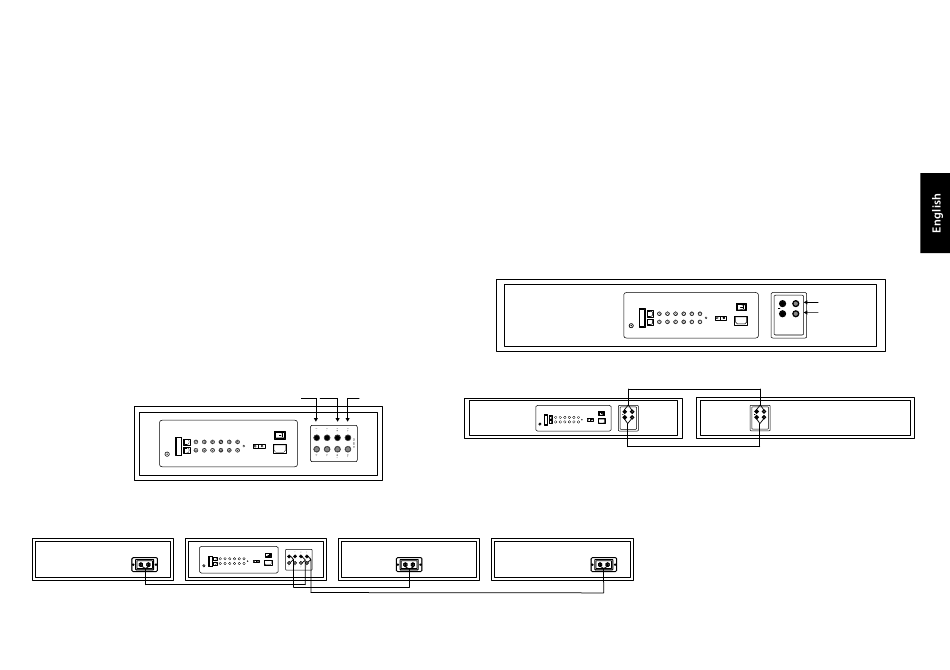

Please refer to the connection diagram below. Use only the speaker cables included
in the delivery to connect the speakers to the screw terminals „Front Left", „Front Right"
and „Sub" (CTA2) or „HF" and „LF" (VRA1) on the back of the amplifier module (strip
cable ends by about 1 cm). Please note the correct polarity, red for plus (+) and black
for minus (-). Simply use the marking on the supplied cable.
Make sure the stripped cable end does not come into contact with the rear panel.
(Risk of short circuit!)
CTA2
SAT
RIGHT
SAT SAT
SUB RIGHT LEFT
AMP SUB
Sound system CLA1:
The CLA1 system is already inserted in the furniture. Only the source devices like DVD,
etc. must be connected with the system.
VRA1
Right / Active
HF
+
LF
SAT
LEFT
HF
HF
+
LF
LF
Left / Passive
HF
+
LF
