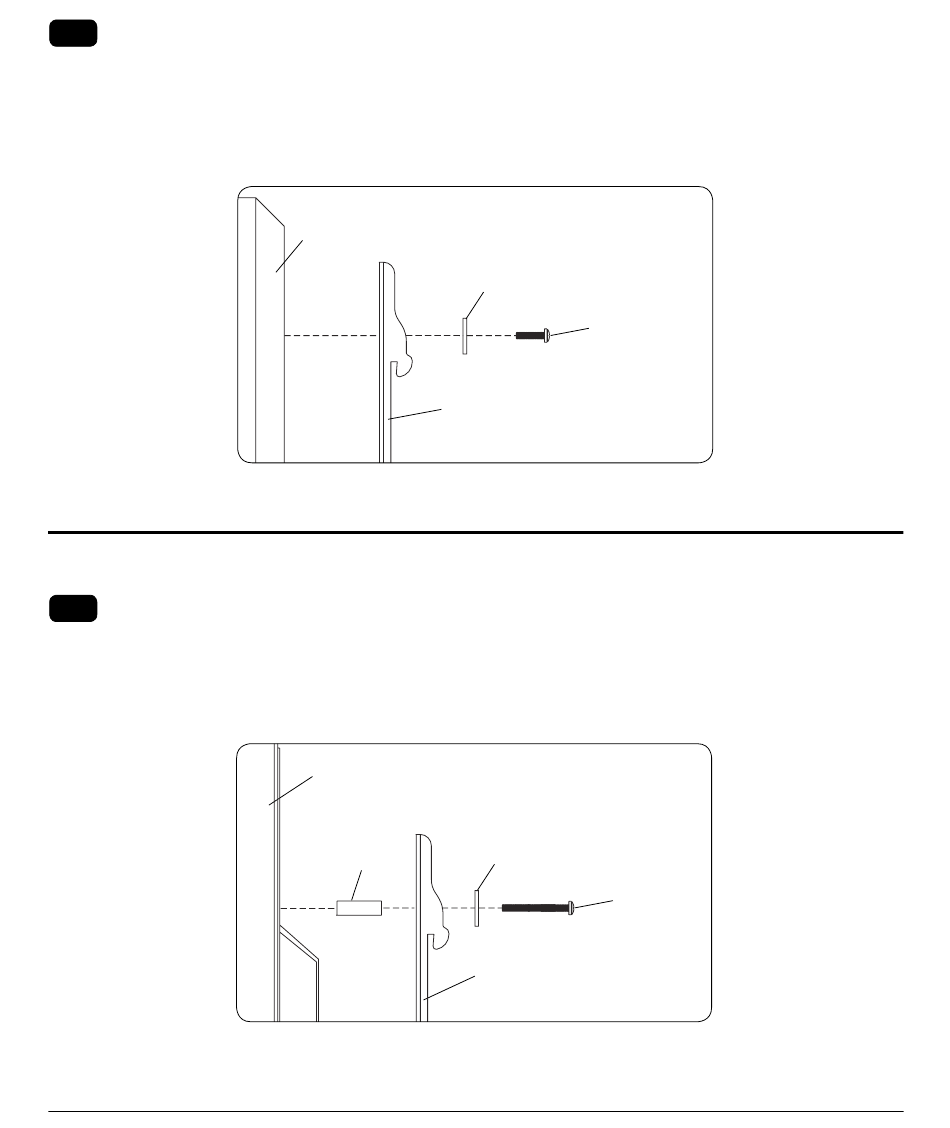

For Flat Back Screen
Refer to Screen Compatibility Chart to determine the proper fastener to use. Visit www.peerlessmounts.com/1
2-1
for a full screen compatibility chart for this mount.
Begin with the shortest length screw, hand thread through washer and adapter bracket into screen as shown
below. Screw must make at least three full turns into the mounting hole and fit snug into place. Do not over tighten.
If screw cannot make three full turns into the screen, select a longer length screw from the baffled fastener pack.
Repeat for remaining mounting holes, level brackets and tighten screws.
Note: Spacers may not be used, depending upon the type of screen.
If you have any questions, please call Peerless customer care at 1-800-865-2112.
For Bump-out or Recessed Back Screen
Refer to Screen Compatibility Chart to determine the proper fastener to use. Visit www.peerlessmounts.com/1
2-2
for a full screen compatibility chart for this mount.
Begin with longer length screw, hand thread through washer, adapter bracket and spacer in that order into screen
as shown below. Screw must make at least three full turns into the mounting hole and fit snug into place. Do not
over tighten. If screw cannot make three full turns into the screen, select a longer length screw from the baffled
fastener pack. Repeat for remaining mounting holes, level brackets and tighten screws.
If you have any questions, please call Peerless customer care at 1-800-865-2112.
SCReeN
ADAPTeR
BRACKeT (BB)
SCReeN
SPACeR
BRACKeT (BB)
7 of 34
fig. 2.1
WASHeR
SCReW
fig. 2.2
WASHeR
SCReW
ADAPTeR
