Press the Up/Down-buttons for setting the desired starting address. Now you can start operating the PHP-21
via your lighting controller.
Note:

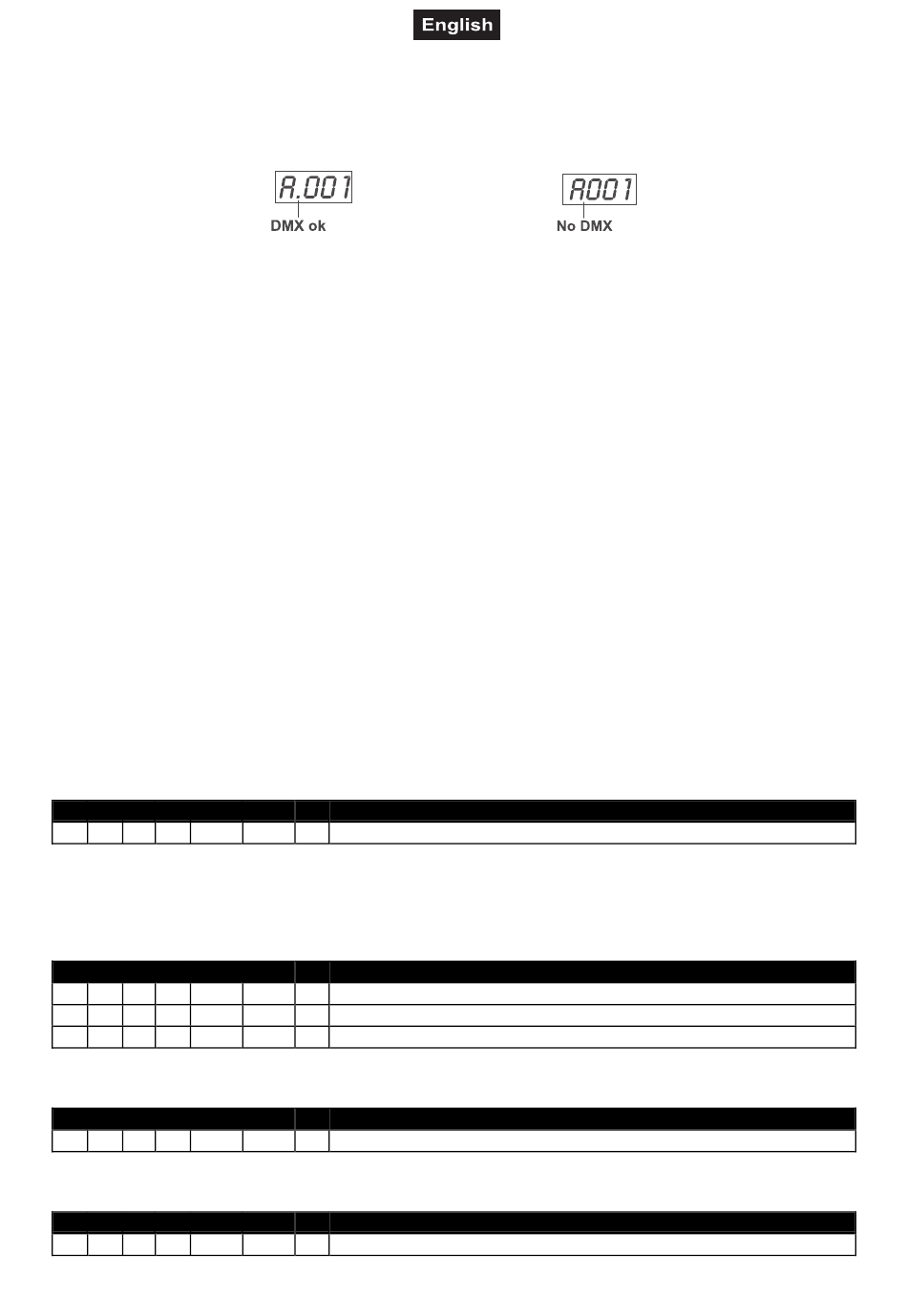

The modes of DMX 512 data are shown via the display:
After switching on, the device will automatically detect whether DMX 512 data is received or not. If the data
is received, the the display will show "A.001" with the actually set address. If there is no data received at the
DMX-input, the display will flash "A001" with the actually set address.
This situation can occur if:
- the 3 PIN XLR plug (cable with DMX signal from controller) is not connected with the input of the device.
- the controller is switched off or defective, if the cable or connector is defective or the signal wires are swap
in the input connector.
Note:
It's necessary to insert the XLR termination plug (with 120 Ohm) in the last device in the link in order to
ensure proper transmission on the DMX data link.

DMX-protocol

Control-channel 1 - Horizontal movement (Pan)
Push slider up in order to move the head horizontally (PAN).
Gradual head adjustment from one end of the slider to the other (0-255, 128-center).
The head can be stopped at any position you wish.
Control-channel 2 - Vertical movement (Tilt)
Push slider up in order to move the head vertically (TILT).
Gradual head adjustment from one end of the slider to the other (0-255, 128-center).
The head can be stopped at any position you wish.
Control-channel 3 - Pan/Tilt-speed
Decimal Hexad. Percentage S/F
0 255 00 FF 0% 100%
Control-channel 4 - Rainbow effect
Linear colour change following the movement of the slider.
In this way you can stop the colour-wheel in any position.
Decimal Hexad. Percentage S/F
0 10 00 0A 0% 4%
11 220 0B DC 4% 86%
221 255 DD FF 87% 100%
Control-channel 5 - Red
Decimal Hexad. Percentage S/F
0 255 00 FF 0% 100%
Control-channel 6 - Green
Decimal Hexad. Percentage S/F
0 255 00 FF 0% 100%
F Decreasing speed
S No function
F Linear colour change following the movement of the slider
F Crossfading colours with increasing speed
S Red (0=off, 255=100% red)
S Green (0=off, 255=100% green)
34/44
