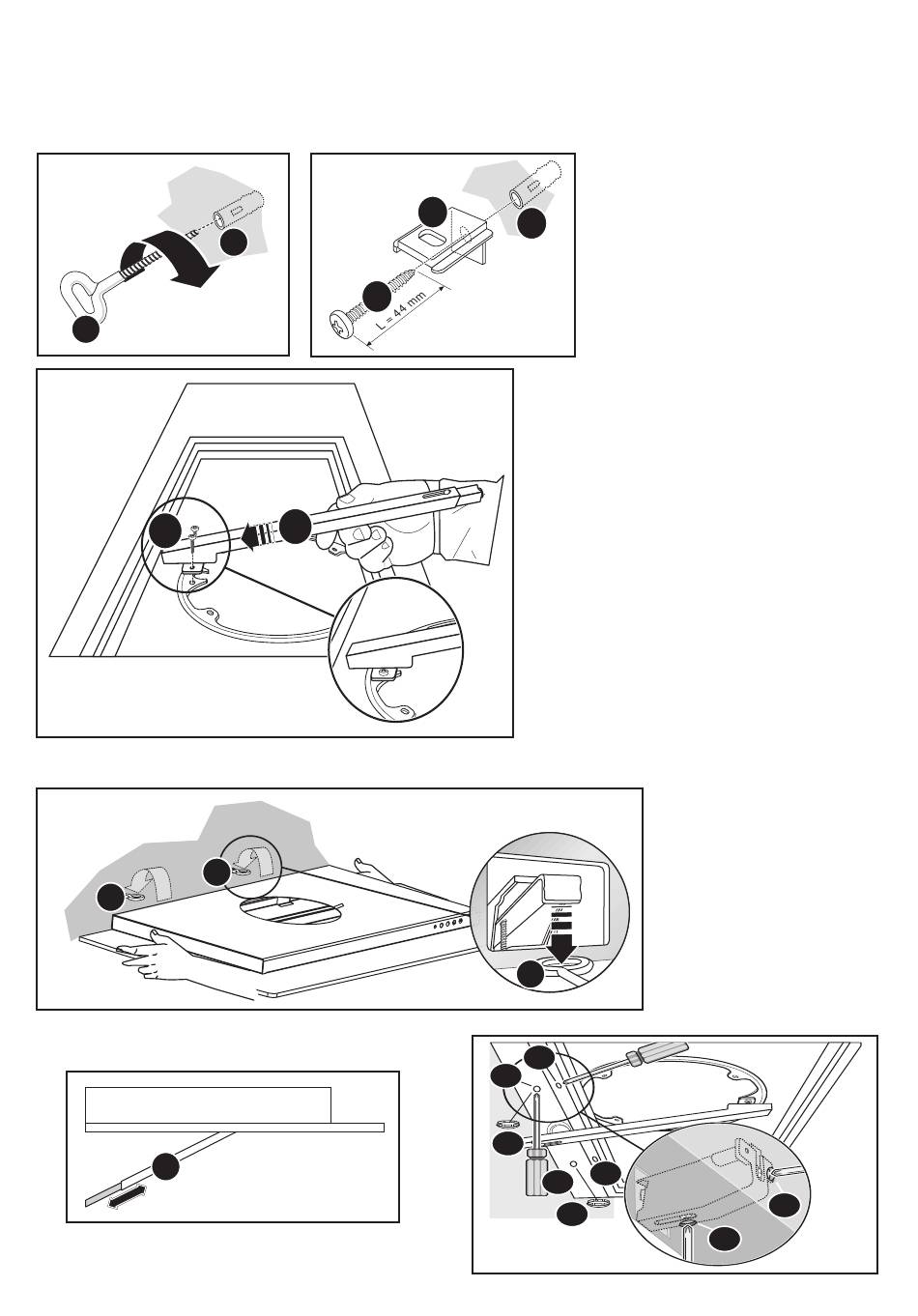

2 - Fitting the fixing elements
a) Insert the rawl plugs provided into holes 1 and 2.
b) Fit the eye bolts O (fig. 6).
c) Fix the wall bracket S in hole 2 using the screw V provided (fig. 7).
6
O
8
K
A08_08
- Insert the plugs T provided in the holes giving access to screws N.
9
O
O
S28_09
B
7
1
V
A08_06
B
S28_10
10
3 - Fitting the hood canopy C to the
wall
a) Remove the venting grille and the
S
2
activated charcoal filter,
if there is any (see the paragraph on
Maintenance).
b) Fit the support rod B using the
two screws K (3,5x9,5) provided
A08_07
(fig. 8).
c) Hook the hood canopy C to the eye bolts
O fixed in holes 1 (fig. 9).
d) Adjust the support rod B so that it pushes
against the wall (fig. 10).
e) Adjusting position (fig. 11). There are two
adjustable hooks at the rear of the hood,
which can be used to adjust its position as
follows:
- Turn the screws L until the position of
screws N coincides with the lower access
holes.
- Turn the screws N to adjust the vertical and
horizontal position of the hood.
- Lock the screws L to fasten the hood
against the wall.
O
L
N
T
L
N
T
A08_11
15
L
N
11
