Black main junction box: Connections
Locate the black main junction box that is fixed to the internal floor of the sauna.

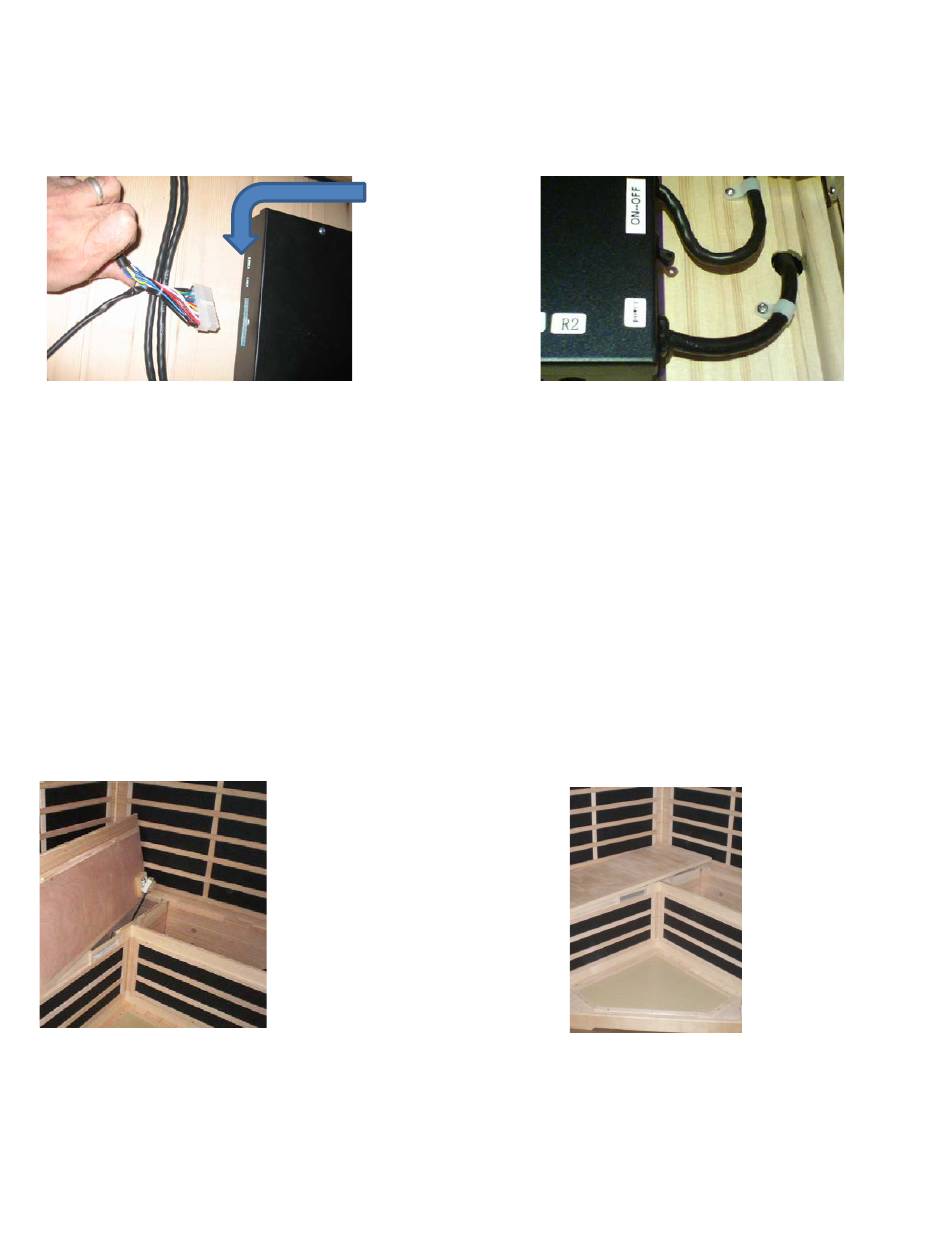

1 Insert the 24 pin, multicoloured cable plug into the left hand side of the main junction box.
2 The ON/ OFF switch is on the right hand side of the main junction box.
Set the switch as shown above to the ON (EIN) position.
3 Connect the loudspeaker input and output.
Note – Do NOT insert the 230 volt alternating current cable into the socket yet.
Long bench ( 2):
Box
• Rest the bench upright against the back wall panel.
• Connect the S-1 power supply to the S-1 junction box.
• Fix the cover of the S-1 junction box with 2 Phillips screws.
Lay the bench down and push first the left hand and then the right hand edge into position.
•
• Push the seat onto the back wall panel.
See point 3 -
Input/output
