Tylo Prime+ 1515/C Benutzerhandbuch Seite 5

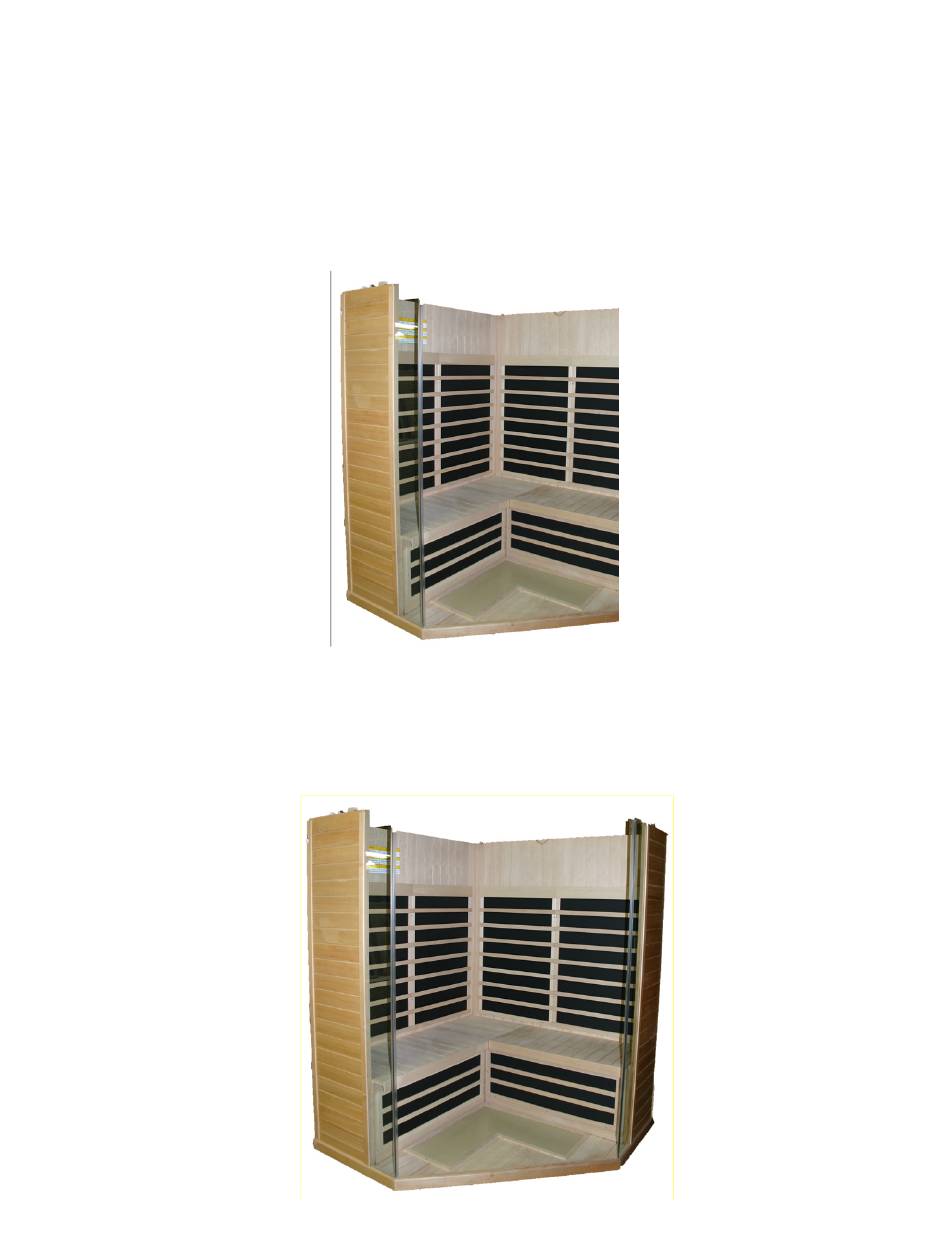

Left side wall panel (
• Place the left wall panel section into the left hand slot on the floor panel.
• Attach the left wall panel to the back wall panel by lifting the left panel and pushing
it into the retaining bracket on the back panel.
• Connect the electrical supply to the B-1 junction box.
• Fix the cover of the L-1 junction box with 2 Phillips screws.
Note – Put the glass sections aside until the Front panel section.
Right side panel (
Box
• Place the right wall panel section into the right hand slot on the floor panel.
• Attach the right wall panel to the back wall panel by lifting the right panel and pushing
it into the retaining bracket on the back panel.
• Connect the R-1 electrical supply to the R-1 junction box.
• Fix the cover of the R-1 junction box with 2 Phillips screws.
3):
Box
3):
Page 5
