How to construct the sauna:
Note – there are (14) power connections inside the sauna.
(10) are in the sauna: left and right rear wall panels, left and right front, wall panels,
left and right bench valance, fan, left and right bench and main power connection
There are additional power connections on the top outer face of the ceiling.
(1) Mains connection cable for the sauna. Do NOT insert the main electrical connection
cable for the sauna into the socket before all the assembly steps have been
completed correctly.
------------------------------------------------------------------------------------------------------------------------------------------------
There are (8) power connection/ junction boxes that are labelled accordingly and must be connected after
assembling each section.
Left back wall panel Right back wall panel Left front
B1 to B1
Right bench valance
S4 to S4

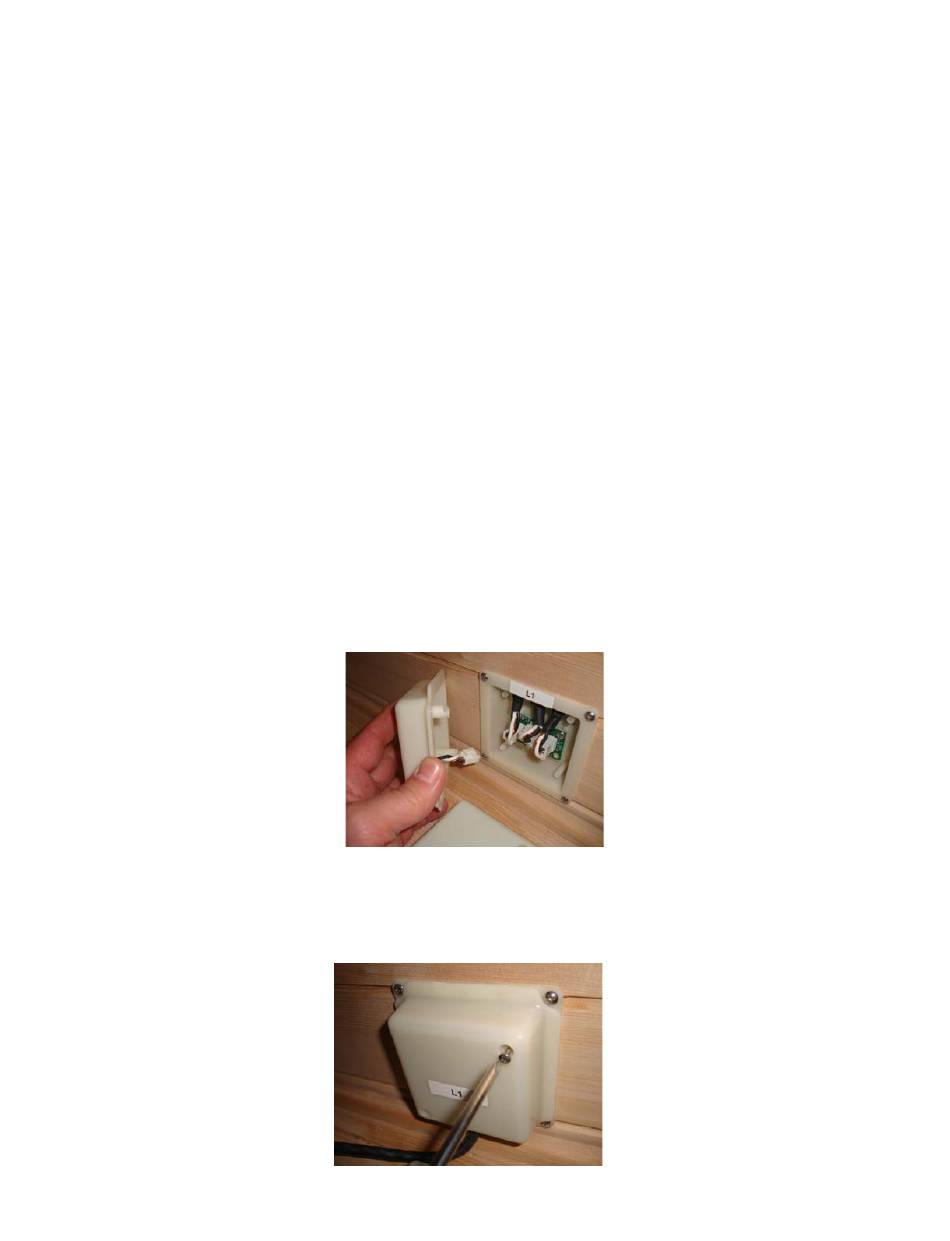

These (8) power plugs are connected easily by simply inserting the white plug of the white junction box
cover into the correct plug-in connection (3) in the junction box.
Example below: L1 to L1 (left wall panel power connection) (left wall panel junction box)
Fitting the junction box covers: After the junction box has been connected securely fix the junction box
cover with a Phillips screwdriver and 2 Phillips screws from Box 1.
B2 to B2
Right front
L1 to L1 R1 to R1
Left bench Right bench
S1 to S1 S2 to S2
Page 3
Left bench valance
S3 to S3
