ENGLISH

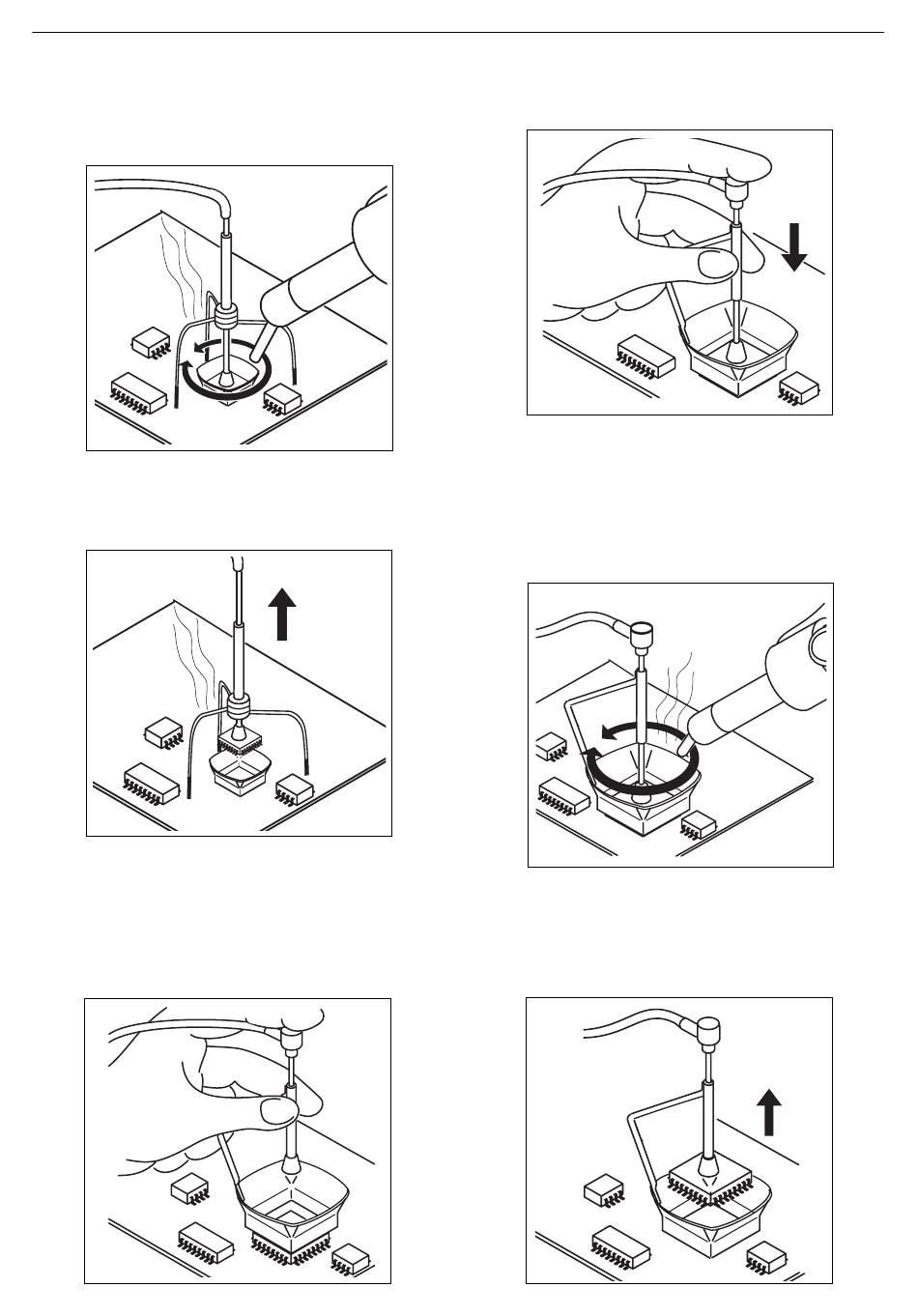

- Use the pedal or the HEAT button to start the
self-contained hot-air pump, directing it with a
circular movement at the component terminals
and taking care to distribute the heat evenly.
- When the soldering flux turns liquid the
extractor will automatically lift the component.
B) Extractor:
- Select extractor size in function of the IC to
be desoldered. Use the VACUUM button to
start the pump.
- Fit the extractor and press the sucker down
until it sticks onto the component.
- Use the pedal or the HEAT button to start the
self-contained hot-air pump, directing it with a
circular movement at the component terminals
and taking care to distribute the heat evenly.
- When the soldering flux turns liquid the
extractor will automatically lift the component.
