Solder tin deposits
It can be chosen between two different deposit
types:
- Metal Ref. 0812630.
- Glass Ref. 0812620.
Change of the heating element of the
desoldering iron (Ref. 5600010)
- To realize this operation, the lid needs to
be unscrewed and first the tin deposit
and then its spiral and filter must be
removed to clean the inner part of the
deposit with a brush.
Deposit
- Screw out the body of the desoldering
iron. Open up the body and remove the
heating element.
Heating element
Ref. 5600010
Lid
Filter Ref. 0780840
Spiral
Brush
Ref. 0786640

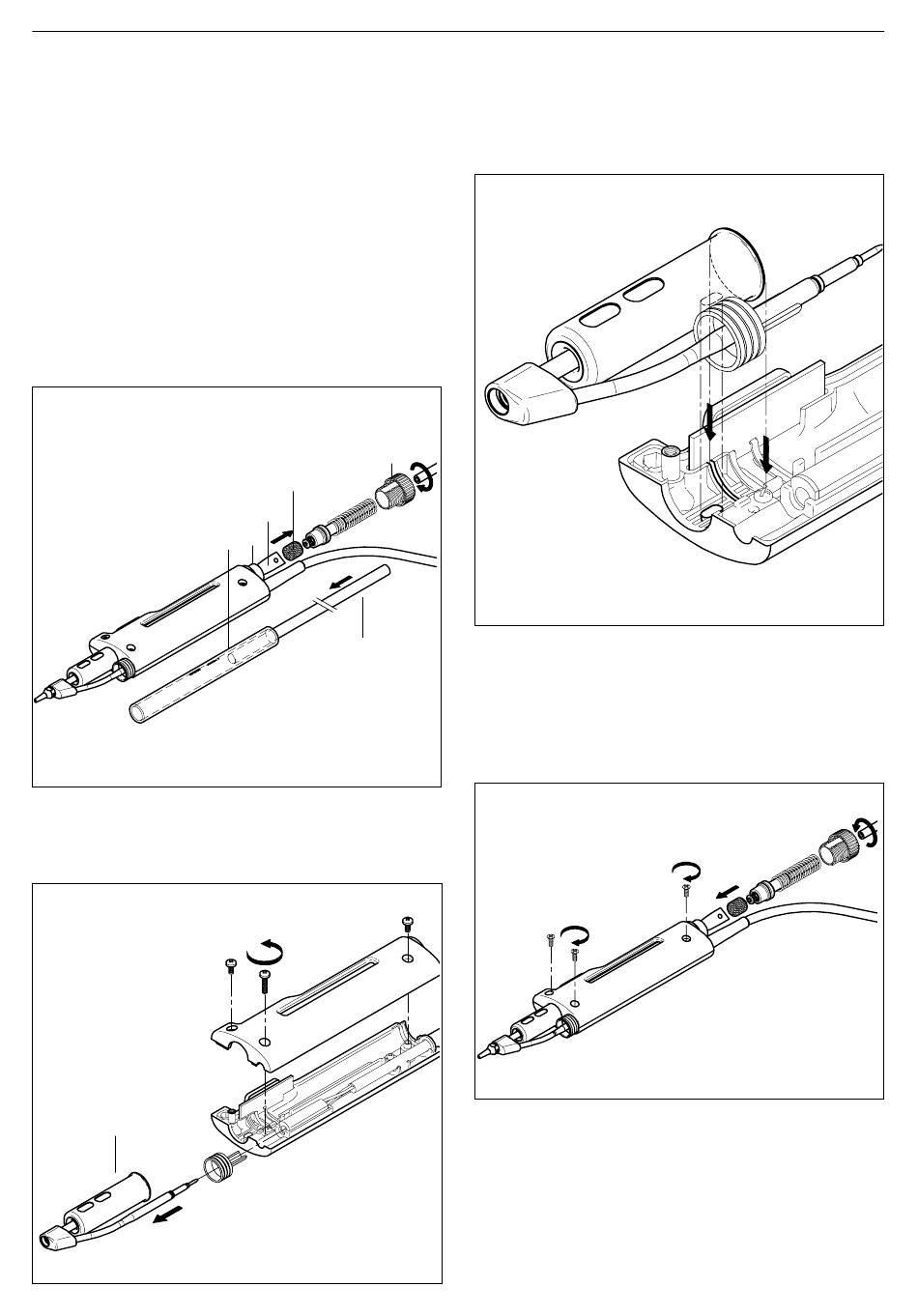

- Place the new heating element. Check that
the right extremity of the upper part of the
heating element is inserted in the slot
located inside the body of the desoldering
iron (see drawing hereunder).
- Screw in the body of the desoldering
iron. Put the spiral and the filter back
into the deposit. Place the deposit inside
the body of the desoldering iron and
screw in the shut lid.
