After ANY adjustments, repair or service and BEFORE use, make sure that
all attaching component parts are secure.
Assembling the Shower Chair
Attaching the Legs
NOTE: For this procedure, refer to FIGURE 1.
NOTE: Refer to WARNINGS in the SAFETY SUMMARY of this instruction sheet.
1. Remove all contents from the package. For Model No. 9781, put backrest to the
side and refer to Installing/Removing the Backrest on page 3 after attaching
and adjusting the legs.
2. Place seat upside down on a stable surface (floor, table, etc).
3. Position one (1) seat leg over one (1) socket in the seat and align.
4. Push the leg down until leg is fully seated in socket, and locking tabs are
positioned through socket tab windows.
5. Pull up on the leg to ensure that is has "locked" into place. Refer to Detail "A"
of FIGURE 1.
6. Repeat STEPS 3-5 for the remaining three (3) legs.
Leg
Locking Tab
Socket
Legs
Part No 1130174
INSTALLATION WARNING
Socket Tab
Window
Seat

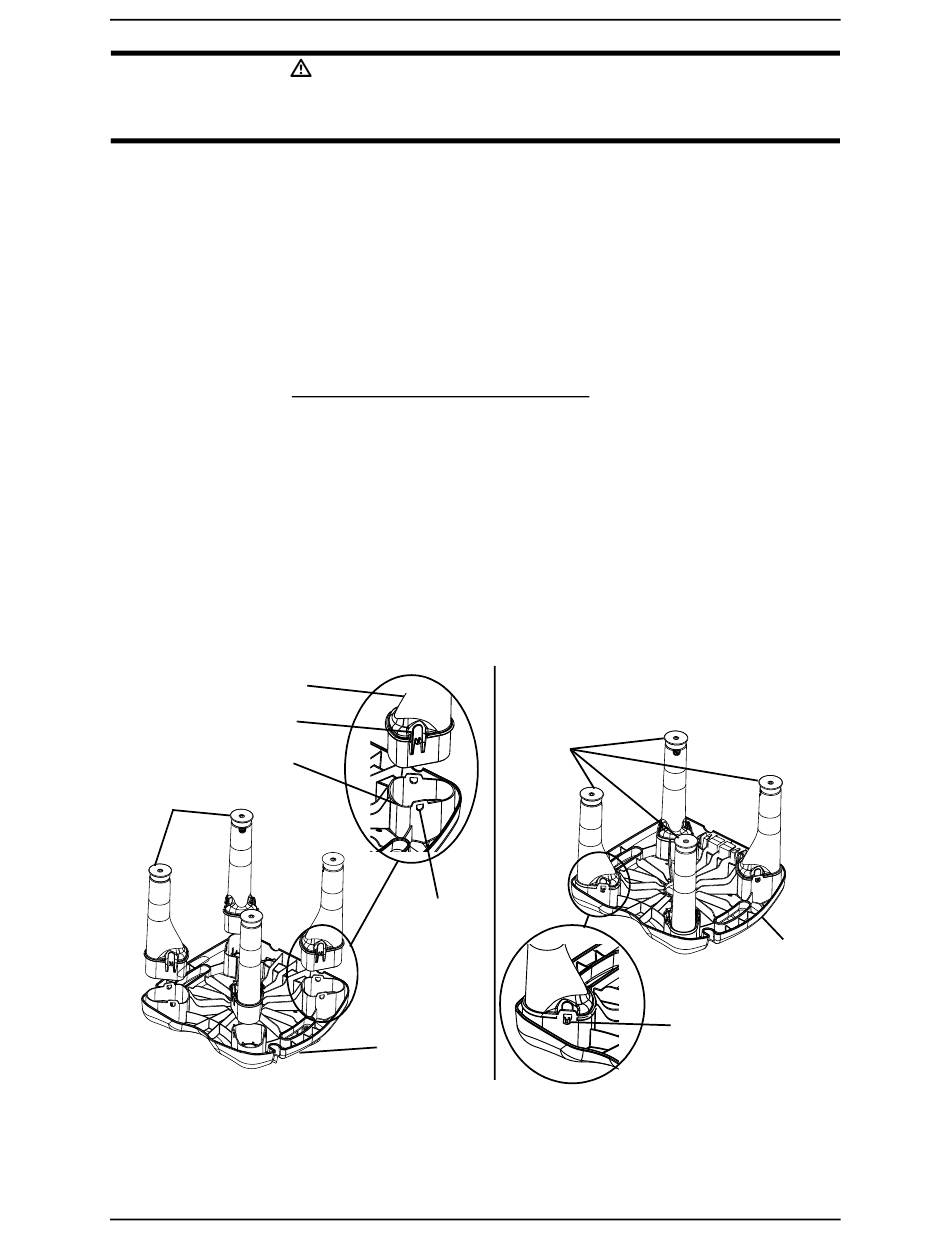

FIGURE 1 Attaching the Legs
2
DETAIL DETAIL "A" - LEGS
ATTACHED TO SEAT
Legs
Through Socket
IVC™Heavy Duty Shower Chair
Seat
Locking Tab
Positioned
