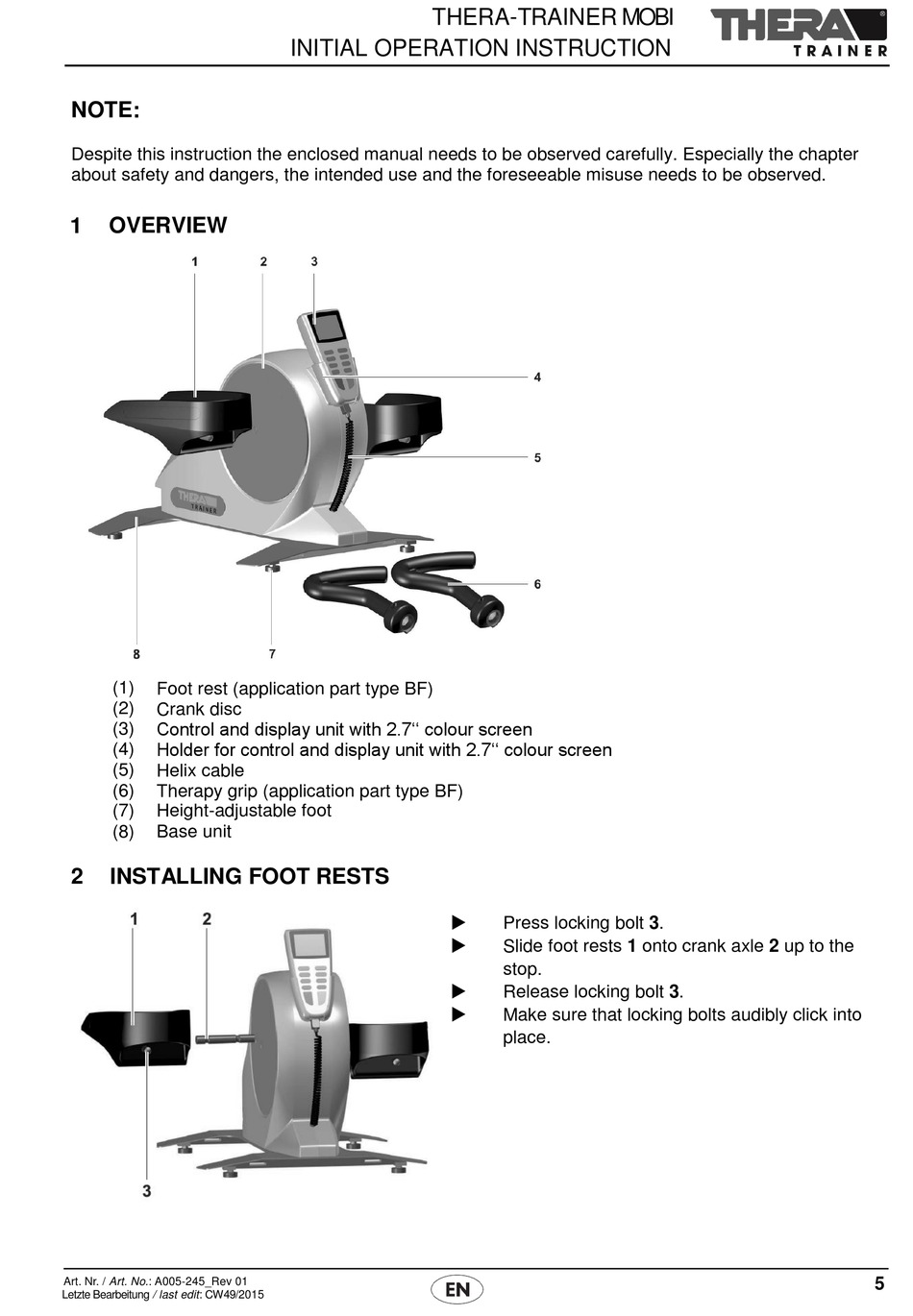

Thera Trainer MOBI Erstinbetriebnahme Anweisung Seite 5

NOTE:
Despite this instruction the enclosed manual needs to be observed carefully. Especially the chapter
about safety and dangers, the intended use and the foreseeable misuse needs to be observed.
1 OVERVIEW
(1)
Foot rest (application part type BF)
(2)
Crank disc
Control and display unit with 2.7'' colour screen
(3)
Holder for control and display unit with 2.7'' colour screen
(4)
(5)
Helix cable
(6)
Therapy grip (application part type BF)
(7) Height-adjustable foot
(8) Base unit
2 INSTALLING FOOT RESTS
Art. Nr. / Art. No.: A005-245_Rev 01
Letzte Bearbeitung / last edit: CW49/2015
THERA-TRAINER MOBI
INITIAL OPERATION INSTRUCTION




Press locking bolt 3.
Slide foot rests 1 onto crank axle 2 up to the
stop.
Release locking bolt 3.
Make sure that locking bolts audibly click into
place.
